Name: Taco 1614 In-Line Cartridge Pump, 1-1/2" Suction, Discharge, 6-3/8" Impeller, 0.75HP, 200-230-460V
Brand: Taco
SKU: LSIFP37LUG
Price: 1787.95 USD
Availability: OutOfStock

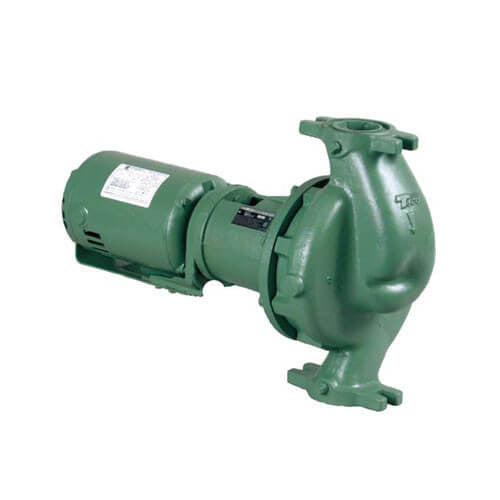

Representative Image

Taco 1614 In-Line Cartridge Pump, 1-1/2" Suction, Discharge, 6-3/8" Impeller, 0.75HP, 200-230-460V

Roll over image to zoom in Click on image to zoom

This in-line pump has a replaceable bearing cartridge assembly that isolates the bearings from system fluid temperatures for cooler operation. The unit includes a 1.5-inch connection and a 6.35-inch impeller. It uses a Type 21 mechanical seal assembly with a ceramic seat, carbon mating ring, and EPT elastomers. The standardized cartridge arrangement allows for common service components, and the construction promotes reliable operation within closed-loop HVAC systems. This unit also includes permanently sealed, grease-lubricated ball bearings within the cartridge assembly.

The pump uses a 3/4 HP motor running at 1750 RPM, ODP enclosure, and a 200-230/460V 3PH power supply. Maintenance-free operation is supported by permanently sealed, grease-lubricated motor ball bearings. Utilizing a rear pull-out design, the assembly permits complete removal of the motor and rotating components for servicing without disturbing the connected piping layout.

Manufacturer	Taco
Part Number	1614C3E2-3PH
Model	1614
Pump Type	In-Line Cartridge Pump
Series	1600
Suction Size	1-1/2"
Nominal Impeller Diameter	6-3/8"
Horsepower	0.75 HP
Voltage	200-230-460V

Taco Commercial Products Brochure

Taco 1600 Series Catalog

Taco 121-138 & 1600 Series Pumps Instructions

Taco 1600 Series Stock Models Submittal

Taco 121-138 & 1600 Series Pumps Specs

Taco 121-138 & 1600 Series Pumps Parts

Taco Comfort Solutions is a manufacturer of high-quality, high-efficiency heating, cooling, and plumbing products. With 100 years of experience using water as a heat transfer medium, Taco's expertise helps save energy, money, and resources.
