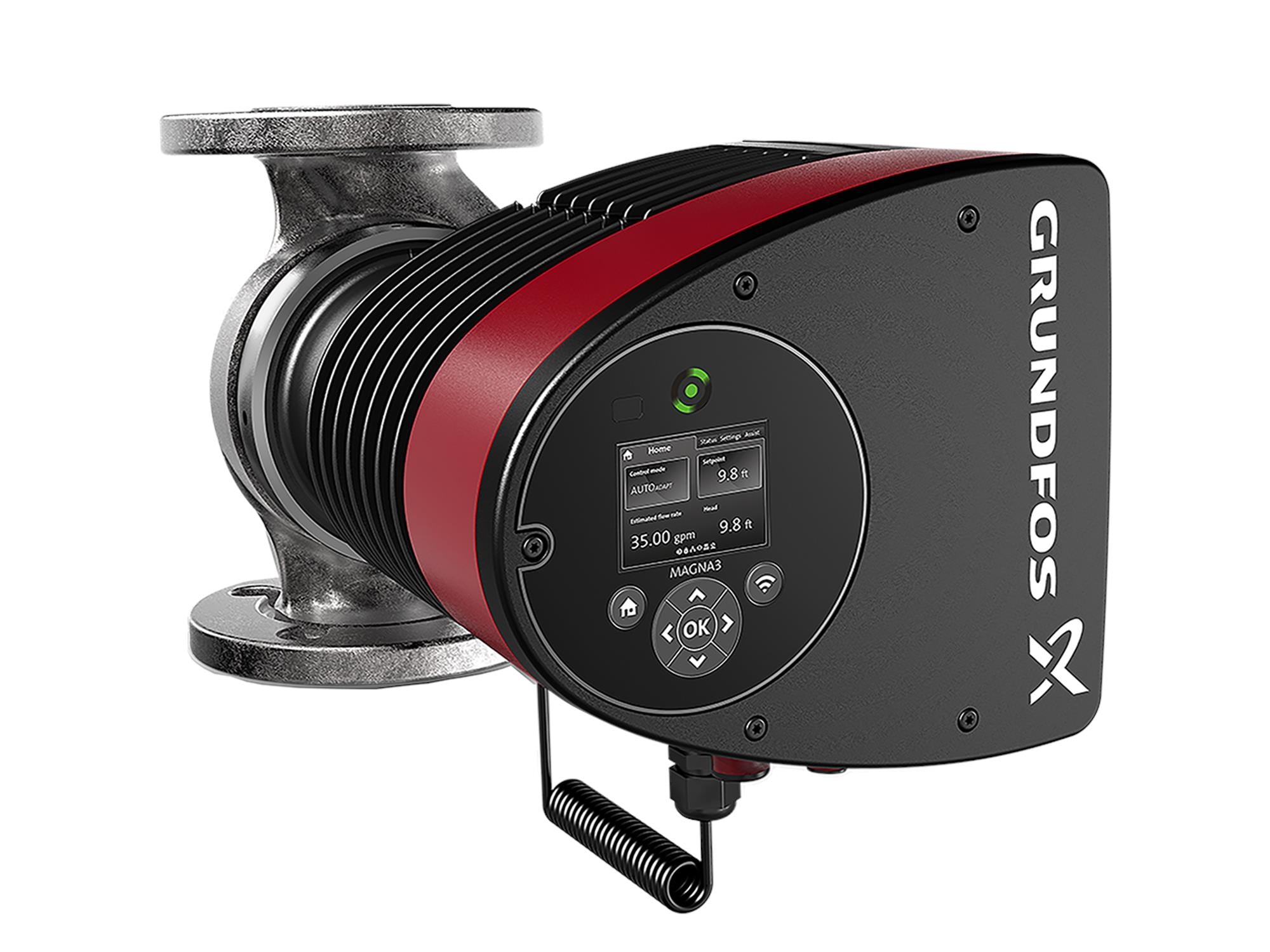

Grundfos 98126854, MAGNA3 65-150 GF Circulator Pump 208-230V

SKU: LSIFQIORYK Part Number: 98126854

Price:
Sale price$7,923.95 Regular price$13,206.00

Save 40% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This circulator pump, known as the MAGNA3 65-150 GF N, is designed for applications such as commercial hot water recirculation. It operates on 208-230V and is constructed with stainless steel, making it suitable for media that require this material. The pump has integrated Bluetooth connectivity, allowing direct interaction with the GO APP for enhanced control and monitoring capabilities.

Specifications

Manufacturer Grundfos
Part Number 98126854
Rated flow 125 US gpm
Rated head 33.14 ft
Maximum head 49.22 ft
TF class 110
Approvals cETLus, Proposition 65
Approvals for drinking water NSF372
Pump housing Stainless steel, EN 1.4308, ASTM A351-CF8
Impeller Composite
Range of ambient temperature 32 .. 104 °F
Maximum operating pressure 174.05 psi
Flange standard GF
Pipe connection GF65
Pressure rating for connection PN 12
Port-to-port length 13 7/16 in
Pumped liquid Water
Liquid temperature range 14 .. 230 °F
Selected liquid temperature 140 °F
Density 61.35 lb/ft³
Maximum power input - P1 1385 W
P1 min. 29 W
Main frequency 60 Hz
Rated voltage 1 x 208-230 V
Minimum current consumption 0.3 A
Maximum current consumption 6.1 A
Enclosure class (IEC 34-5) X4D
Insulation class (IEC 85) F
Energy (EEI) 0.17
Net weight 57.6 lb
Gross weight 62.6 lb
Shipping volume 1.94 ft³
Country of origin US
Custom tariff no. 8413.70.2015

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
