Description

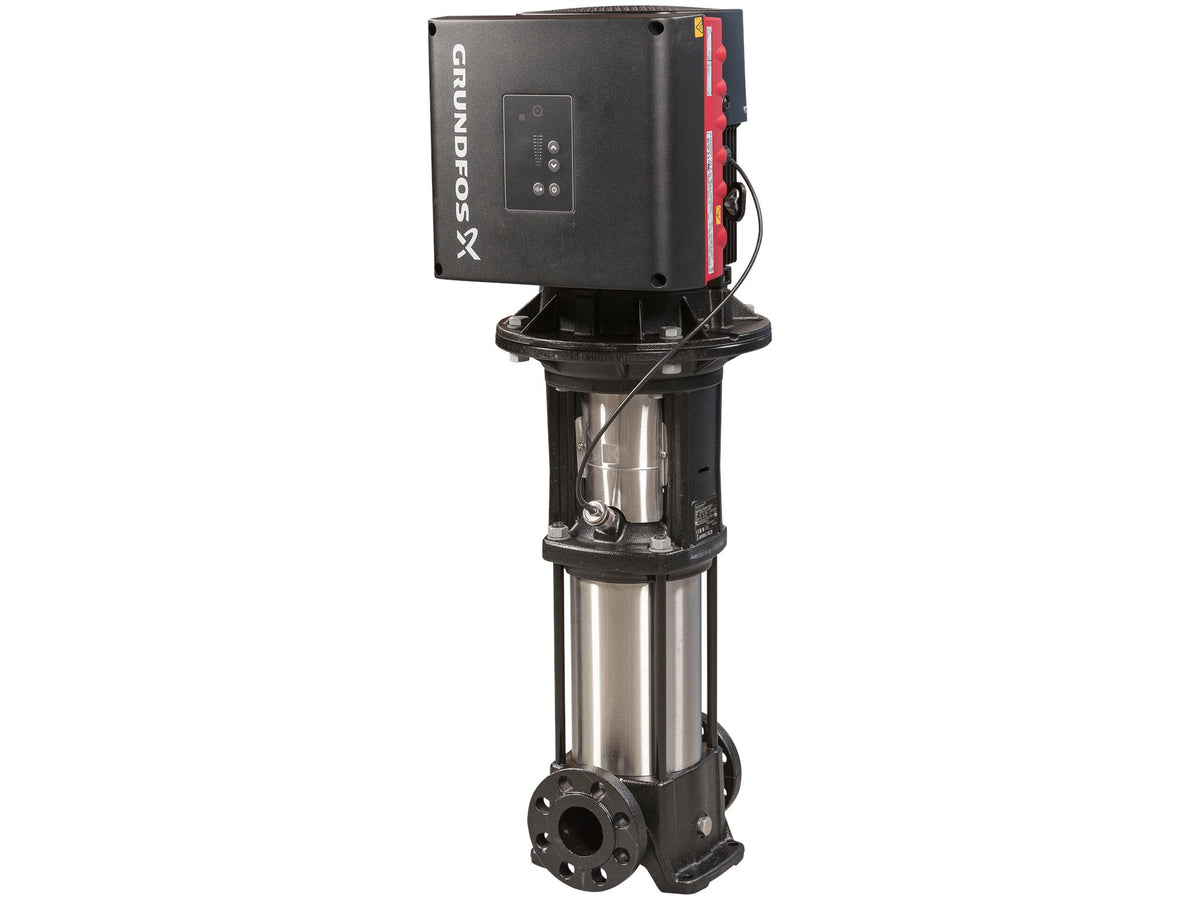

This vertical multistage centrifugal pump with an integrated frequency converter operates at 440/480V and 3HP. It has a cast iron pump head and base, while all other wetted parts are made of stainless steel (EN 1.4301).
Specifications
Manufacturer | Grundfos |
---|---|
Part Number | 99340895 |
Rated pump speed | 3461 rpm |
Rated flow | 30.4 US gpm |
Rated head | 222.8 ft |
Maximum head | 299.2 ft |
Stages | 9 |
Impellers | 9 |
Number of reduced-diameter impellers | 0 |
Low NPSH | N |
Pump orientation | Vertical |
Shaft seal arrangement | Single |
Code for shaft seal | HQQE |
Approvals | CE,CURUS |
Approvals for drinking water | NSF/ANSI 61 |
Curve tolerance | ISO9906:2012 3B |
Pump version | N |
Base | Cast iron, EN 1561 EN-GJL-200, ASTM A48-25B |
Impeller | Stainless steel, EN 1.4301, AISI 304 |
Material code | A |
Code for rubber | E |
Bearing | SIC |
Maximum ambient temperature | 122 °F |
Maximum operating pressure | 362.59 psi |
Max pressure at stated temperature | 363 psi / 250 °F, 363 psi / -4 °F |
Type of connection | DIN / ANSI / JIS |
Size of inlet connection | DN 25/32 |
Size of outlet connection | DN 25/32 |
Pressure rating for connection | PN 25 |
Flange rating inlet | 250 lb |
Flange size for motor | 182TC |
Connect code | FGJ |
Pumped liquid | Water |
Liquid temperature range | -4 .. 248 °F |
Selected liquid temperature | 68 °F |
Density | 62.29 lb/ft³ |
Motor standard | NEMA |
Motor type | 90D |
Rated power - P2 | 3 HP |
Power (P2) required by pump | 3 HP |
Over/undersize motor | Standard motor size |
Main frequency | 60 Hz |
Rated voltage | 3 x 440-480 V |
Service factor | 1.15 |
Rated current | 3.8 A |
Cos phi - power factor | 0.89 |
Rated speed | 360-4000 rpm |
IE Efficiency class | IE5 |
Motor efficiency at full load | 90.7 % |
Enclosure class (IEC 34-5) | IP55 |
Insulation class (IEC 85) | F |
Built-in motor protection | ELEC |
Control panel | Graphical |
Function Module | FM300 - Advanced |
Frequency converter | Built-in |
Pressure sensor | Y |
Terminal box position | 6 |
Net weight | 92.4 lb |
Gross weight | 107 lb |
Shipping volume | 8.26 ft³ |
Config. file no | 98499295 |
Country of origin | US |
Custom tariff no. | 8413.70.2040 |
