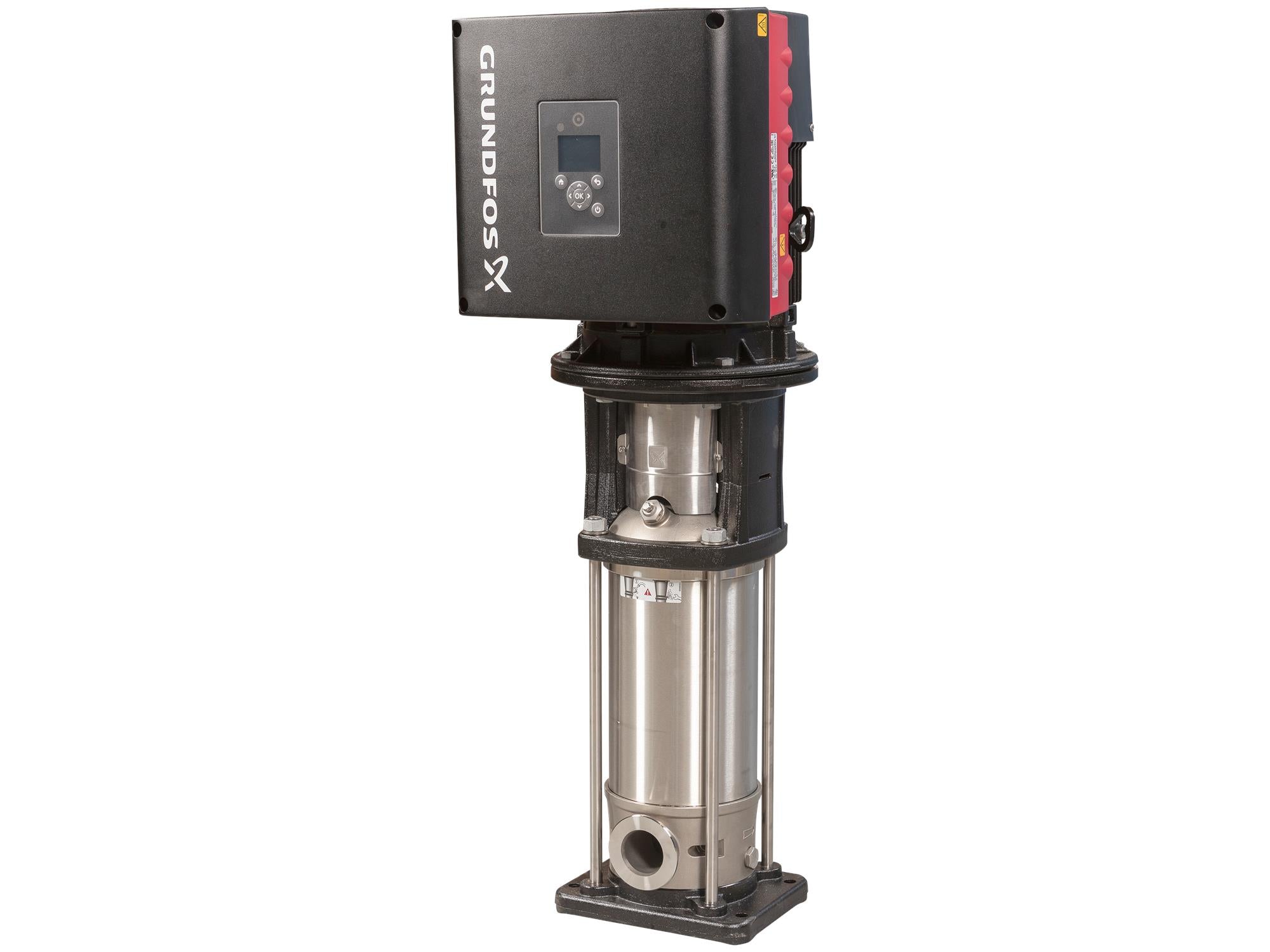

Grundfos 99391967, CRIE10-6 A-CA-A-E-HQQE Vertical Multistage Pump

SKU: LSIG9O9ZBQ Part Number: 99391967

Price:
Sale price$8,327.95 Regular price$9,305.00

Save 11% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability

Description

This vertical multistage centrifugal pump features a MGE E-motor with a built-in frequency converter for precise control and efficiency. With a cast iron head and stainless steel wetted parts (EN 1.4301), it operates at 15 HP, 480V in three-phase, ideal for water treatment, fertigation, chemigation, and irrigation applications.

Specifications

Manufacturer Grundfos
Part Number 99391967
Rated pump speed 3461 rpm
Rated flow 53.3 US gpm
Rated head 227 ft
Maximum head 289.4 ft
Actual impeller diameter 3.66 in
Stages 6
Impellers 6
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQE
Approvals CE,CURUS
Approvals for drinking water NSF/ANSI 61
Curve tolerance ISO9906:2012 3B
Pump version A
Base Stainless steel, EN 1.4408, AISI 316
Impeller Stainless steel, EN 1.4301, AISI 304
Material code A
Code for rubber E
Bearing SIC
Maximum ambient temperature 104 °F
Maximum operating pressure 232.06 psi
Max pressure at stated temperature 232 psi / 250 °F, 232 psi / -4 °F
Type of connection FlexiClamp
Size of inlet connection DN 50
Size of outlet connection DN 50
Pressure rating for connection PN 25
Flange size for motor 182TC
Connect code CA
Pumped liquid Water
Liquid temperature range -4 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Motor type 112C
Rated power - P2 5 HP
Power (P2) required by pump 5 HP
Over/undersize motor Standard motor size
Main frequency 60 Hz
Rated voltage 3 x 200-240 V
Service factor 1.15
Rated current 13.2-10.9 A
Cos phi - power factor 0.94
Rated speed 360-4000 rpm
IE Efficiency class IE5
Motor efficiency at full load 90.9 %
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F
Built-in motor protection ELEC
Control panel Graphical
Function Module FM300 - Advanced
Frequency converter Built-in
Pressure sensor N
Terminal box position 6
DOE Pump Energy Index VL 0.38
Net weight 132 lb
Gross weight 150 lb
Shipping volume 8.26 ft³
Config. file no 99303362
Country of origin US
Custom tariff no. 8413.70.2040

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
