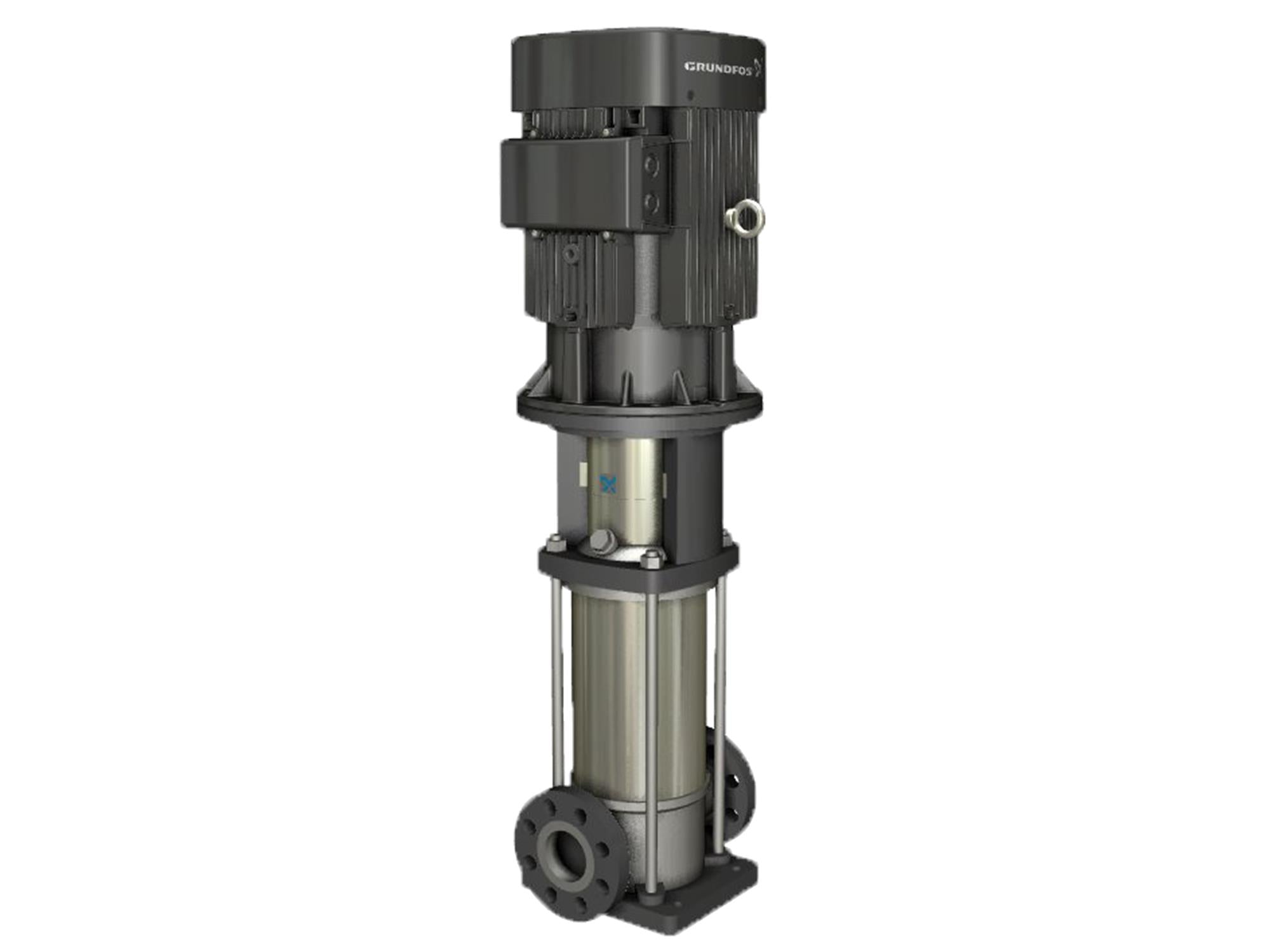

Grundfos 98160706, CRN 1-6 A-FGJ-A-V-HQQV Vertical Multistage Pump

SKU: LSIGLD0PFT Part Number: 98160706

Price:
Sale price$2,044.95 Regular price$3,051.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level.

Specifications

Manufacturer Grundfos
Part Number 98160706
Rated pump speed 2873 rpm
Rated flow 7.93 US gpm
Rated head 92.85 ft
Maximum head 123.4 ft
Stages 6
Impellers 6
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQV
Curve tolerance ISO9906:2012 3B
Pump version A
Base Stainless steel, EN 1.4408, AISI 316
Impeller Stainless steel, EN 1.4401, AISI 316
Material code A
Code for rubber V
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 194 °F, 363 psi / -4 °F
Type of connection DIN / ANSI / JIS
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Pressure rating for connection PN 25
Flange rating inlet 300 lb
Flange size for motor FT85
Connect code FGJ
Pumped liquid Water
Liquid temperature range -4 .. 194 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard IEC
Power (P2) required by pump 0.5 HP
Frequency converter None
Pressure sensor N
Net weight 48.4 lb
Gross weight 54.5 lb
Shipping volume 2.22 ft³
Country of origin US
Custom tariff no. 8413.70.2040

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
