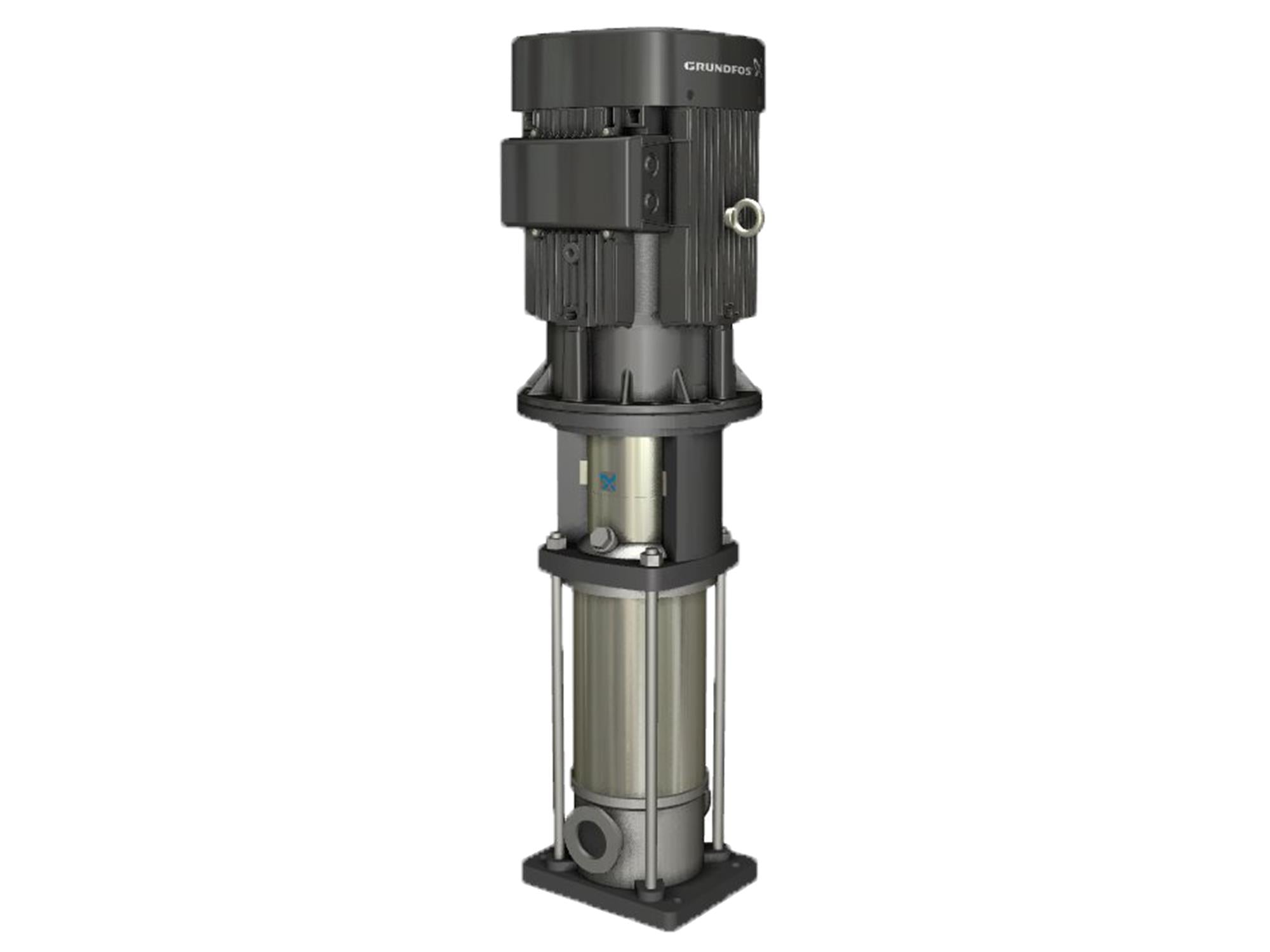

Grundfos 98160588, CRI1-8 A-CA-A-V-HQQV Vertical Multistage Pump

SKU: LSIHA1OTD2 Part Number: 98160588

Price:
Sale price$1,996.95 Regular price$2,980.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level.

Specifications

Manufacturer Grundfos
Part Number 98160588
Rated pump speed 2856 rpm
Rated flow 7.93 US gpm
Rated head 126.6 ft
Maximum head 164 ft
Stages 8
Impellers 8
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQV
Curve tolerance ISO9906:2012 3B
Pump version A
Base Stainless steel, EN 1.4408, AISI 316
Impeller Stainless steel, EN 1.4301, AISI 304
Material code A
Code for rubber V
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 194 °F, 363 psi / -4 °F
Type of connection FlexiClamp
Size of inlet connection DN 32
Size of outlet connection DN 32
Pressure rating for connection PN 25
Flange size for motor FT85
Connect code CA
Pumped liquid Water
Liquid temperature range -4 .. 194 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard IEC
Power (P2) required by pump 0.75 HP
Frequency converter None
Pressure sensor N
Net weight 40.1 lb
Gross weight 46.2 lb
Shipping volume 2.22 ft³
Country of origin US
Custom tariff no. 8413.70.2040

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.

Estimate shipping

Repair Parts

(4 items)

Grundfos 96455087, Shaft Seal Kit HQQV SmCR
Grundfos 96455091, Gasket Kit FKM CR/I/N 1s/1/3/5
