Description

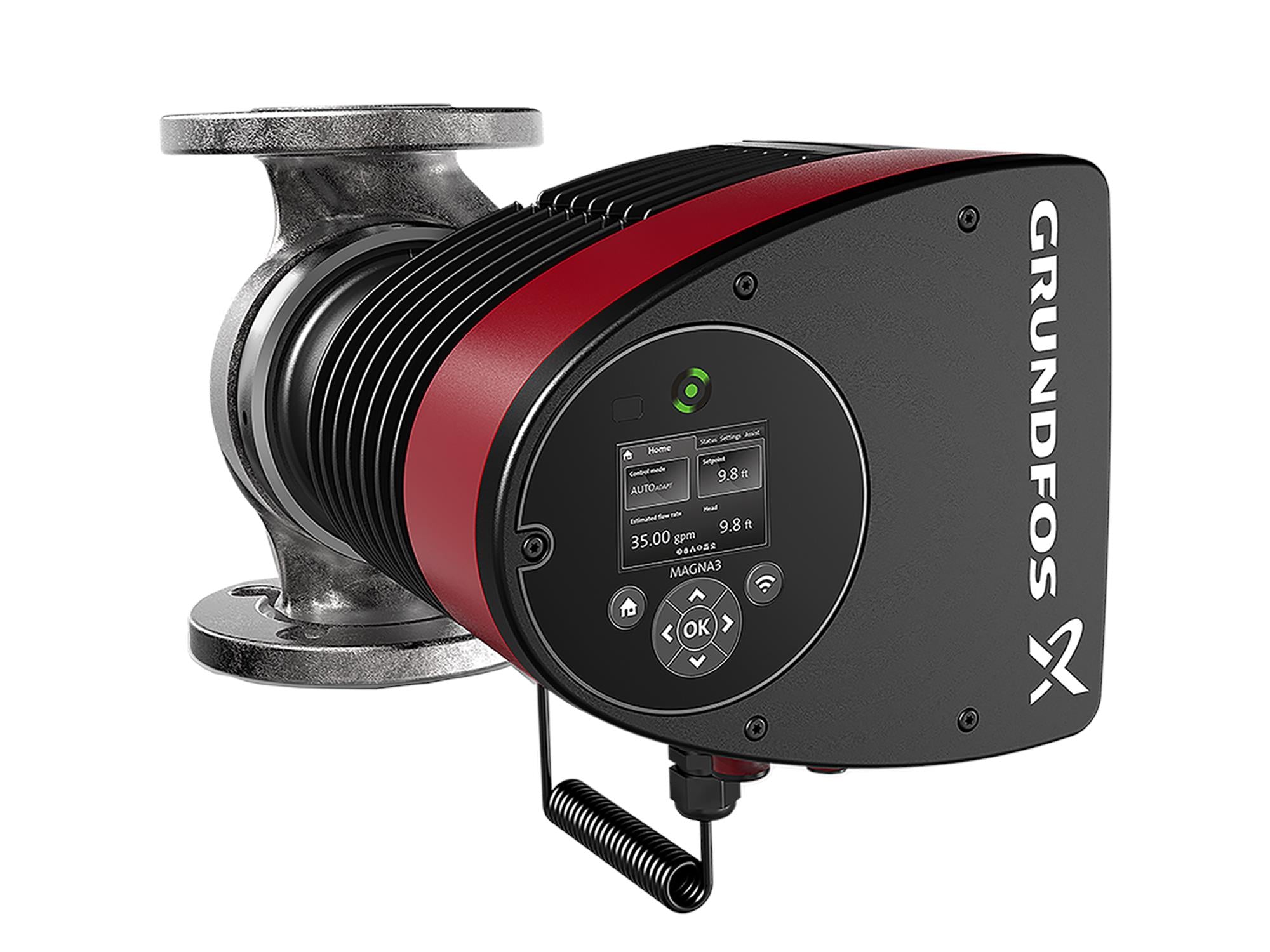

This circulator pump, known as the MAGNA3 65-120 GF N, is designed for commercial hot water recirculation. It operates at 208-230 volts with a power rating of 1 horsepower. The pump is constructed from stainless steel, making it suitable for applications requiring such material, like domestic hot water systems. It has integrated Bluetooth connectivity for direct interaction with the GO APP.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 98126850 |
| Rated flow | 105 US gpm |
| Rated head | 23.3 ft |
| Maximum head | 39.37 ft |
| TF class | 110 |
| Approvals | cETLus, Proposition 65 |
| Approvals for drinking water | NSF372 |
| Pump housing | Stainless steel, EN 1.4308, ASTM A351-CF8 |
| Impeller | Composite |
| Range of ambient temperature | 32 .. 104 °F |
| Maximum operating pressure | 174.05 psi |
| Flange standard | GF |
| Pipe connection | GF53/65 |
| Pressure rating for connection | PN 12 |
| Port-to-port length | 13 7/16 in |
| Pumped liquid | Water |
| Liquid temperature range | 14 .. 230 °F |
| Selected liquid temperature | 140 °F |
| Density | 61.35 lb/ft³ |
| Maximum power input - P1 | 758 W |
| P1 min. | 20.5 W |
| Main frequency | 60 Hz |
| Rated voltage | 1 x 208-230 V |
| Minimum current consumption | 0.18 A |
| Maximum current consumption | 3.32 A |
| Enclosure class (IEC 34-5) | X4D |
| Insulation class (IEC 85) | F |
| Energy (EEI) | 0.17 |
| Net weight | 47.4 lb |
| Gross weight | 52.4 lb |
| Shipping volume | 1.94 ft³ |
| Country of origin | US |
| Custom tariff no. | 8413.70.2015 |
Documents
