Description

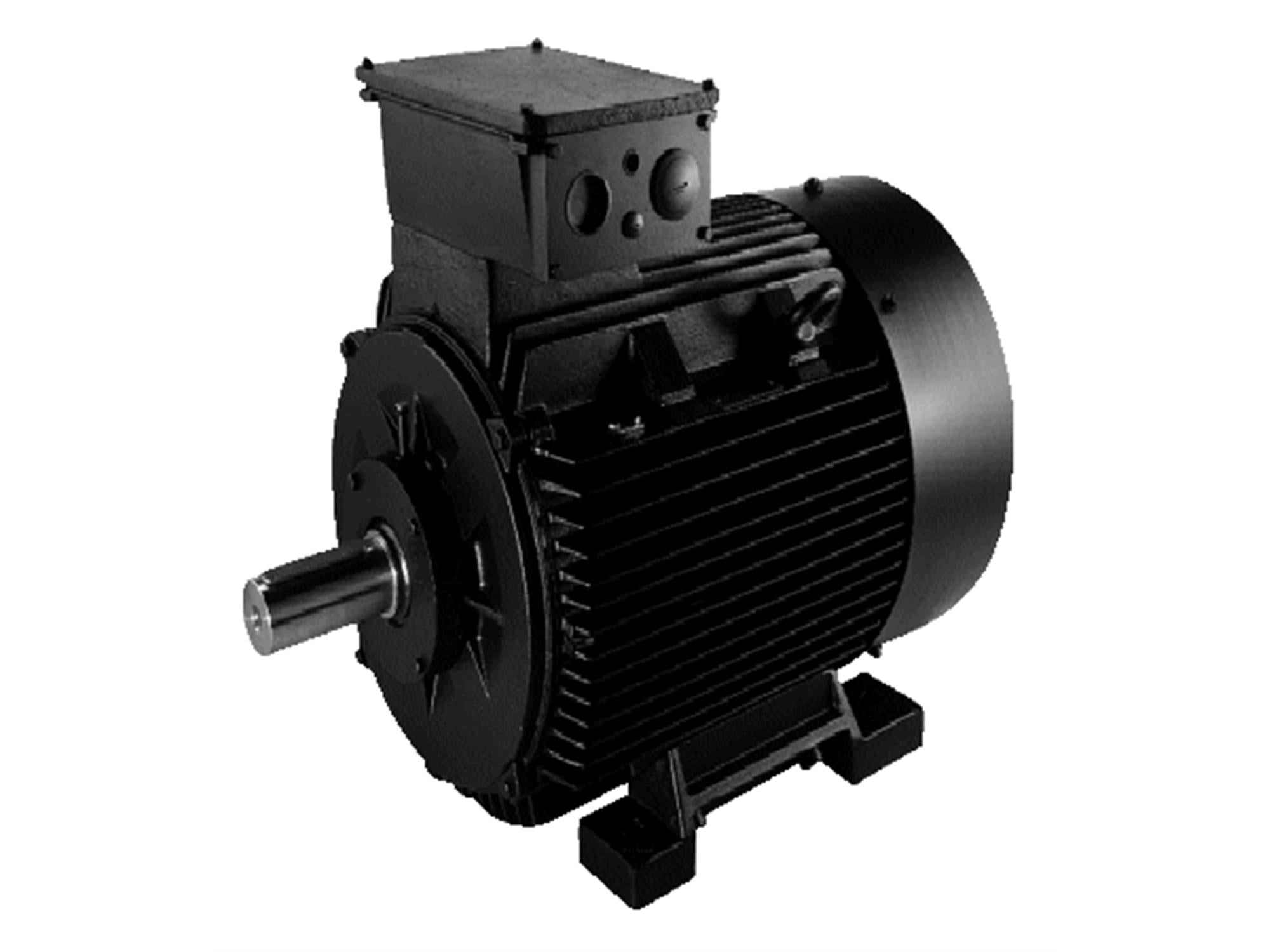

This motor is a 15 HP unit with a voltage rating of 208-230/460V and operates on three-phase power. It is categorized under standard motors, suitable for applications requiring high efficiency at 60Hz.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 85600H24 |
| Shaft diameter | 1.62 in |
| Length of shaft end | 4 in |
| Approvals for motor | cURus/cCSAus |
| Energy approvals for motor | CC, |
| Cooling | IC 411 |
| Cable gland entry | Knock out |
| Range of ambient temperature | -4 .. 104 °F |
| Flange size for motor | 254TC |
| Motor type | BALDOR |
| Rated power - P2 | 15 HP |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 208-230/460 V |
| Service factor | 1.15 |
| Rated current | 38,0-35,0/17,5 A |
| Starting current | 680 % |
| Full load SF current | 44-40/20 A |
| Cos phi - power factor | 0.87 |
| Rated speed | 3520 rpm |
| Rated full-load torque | 22.13 ft lb |
| Locked-rotor torque | 164 % |
| Breakdown torque | 477 % |
| Moment of inertia | 0.55 lb ft² |
| IE efficiency | IE3 91% |
| IE Efficiency class | IE3 / NEMA Premium |
| Motor efficiency at full load | 91 % |
| Motor efficiency at 3/4 load | 91.6 % |
| Motor efficiency at 1/2 load | 91 % |
| Number of poles | 2 |
| Enclosure class (IEC 34-5) | TEFC |
| Insulation class (IEC 85) | F |
| Built-in motor protection | NONE |
| Tropic protec | No |
| Thermal protec | None |
| Mounting design per IEC 34-7 | NEMA type C |
| Cos phi 1/2 | 0.77 |
| Cos phi 3/4 | 0.85 |
| Bearing insulation type N-end | Steel Bearing |
| Net weight | 244 lb |
| Color/Type | BLACK |
| Country of origin | US |
| Custom tariff no. | 8501.51.2040 |
