Name: NIBCO G1L-SSSR 36" Sure Seal High Performance Butterfly Valve S36-G1L-SSSR-B
Brand: NIBCO
SKU: LSIIE5ERNW
Price: 103450.95 USD
Availability: InStock

Representative Image

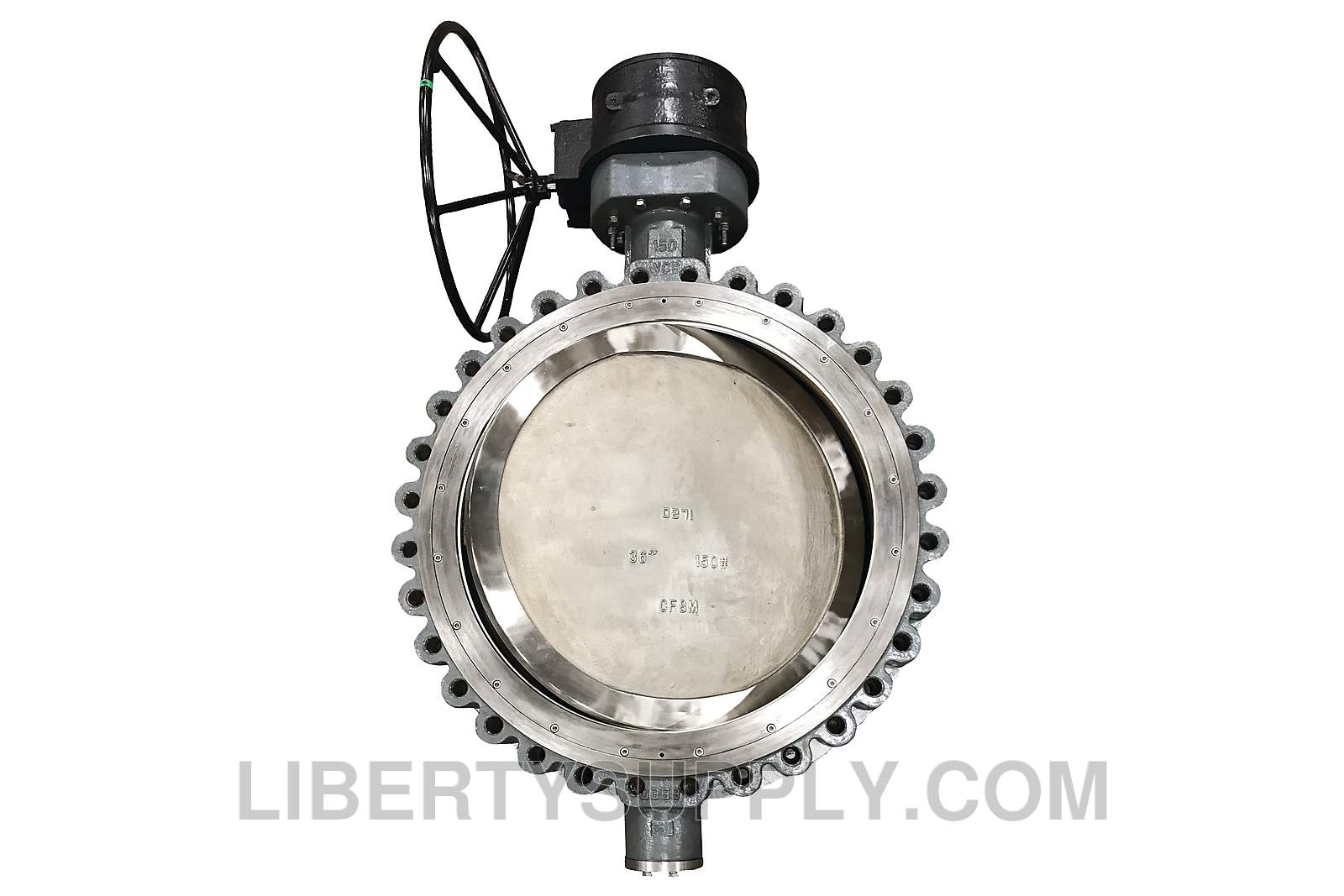

NIBCO G1L-SSSR 36" Sure Seal High Performance Butterfly Valve S36-G1L-SSSR-B

Roll over image to zoom in Click on image to zoom

The Sure Seal Class 150 high performance lug style butterfly valve features a stainless steel body with stainless steel trim. It is ideally suited for commercial, industrial and mechanical HVAC services. The valve performs isolation and throttling services in heating hot water, condenser water, glycol, chilled water, compressed air, chemical process, and domestic water or steam (2" to 12" 150 psi; on/off 50 psi modulating). The lug type butterfly valve features live loaded adjustable packing with a unique flush-mounted packing gland. The high performance valve also provides bi-directional dead-end service and includes an arrow on the body to indicate the recommended flow direction. Seats are glass reinforced PTFE to provide exceptional chemical and heat resistance. Other features include the 316 stainless steel body, direct mount actuation, integrally cast disc-stop and dual offset design, one-piece, blowout-proof 17-4PH stainless steel stem with 304 stainless steel bushings PTFE coated. Please refer to Sure Seal technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose Sure Seal high performance butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. Sure Seal high performance butterfly valves are backed by the Sure Seal 5-year 125% limited warranty.

Features

Valve pressure rating 285 psi
Maximum operating temperature 400°F at 100 psi
Lug style
Seats: Glass reinforced PTFE (standard); PTFE; UHMWPE
Blowout-proof stem
Stainless steel disc and stem
Integrally cast disc stop
Dual offset design
Direct mount actuation
Operating mechanism: Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
MSS SP-68 (design) 100% production tested
MSS SP-25 (markings)
API 609 seat pressure/temperature ratings/blow-out proof stem
ASME/ANSI B16.34A, body pressure/temperature ratings
ASME/ANSI B16.5 flange dimensions
ISO 5211 EN 12116 actuator mounting top works
ANSI Class 150

Manufacturer	NIBCO
Part Number	S36-G1L-SSSR-B
Model	G1L-SSSR-B
Series	G1L-SSSR
Type of Valve	Butterfly
Nominal Pipe Size	36"
Butterfly Operator	Bare Stem/Bare Shaft
UPC Code	039923076236
Length	64.92"
Width	45.8"
Height	11.37"
Country of Origin	US
