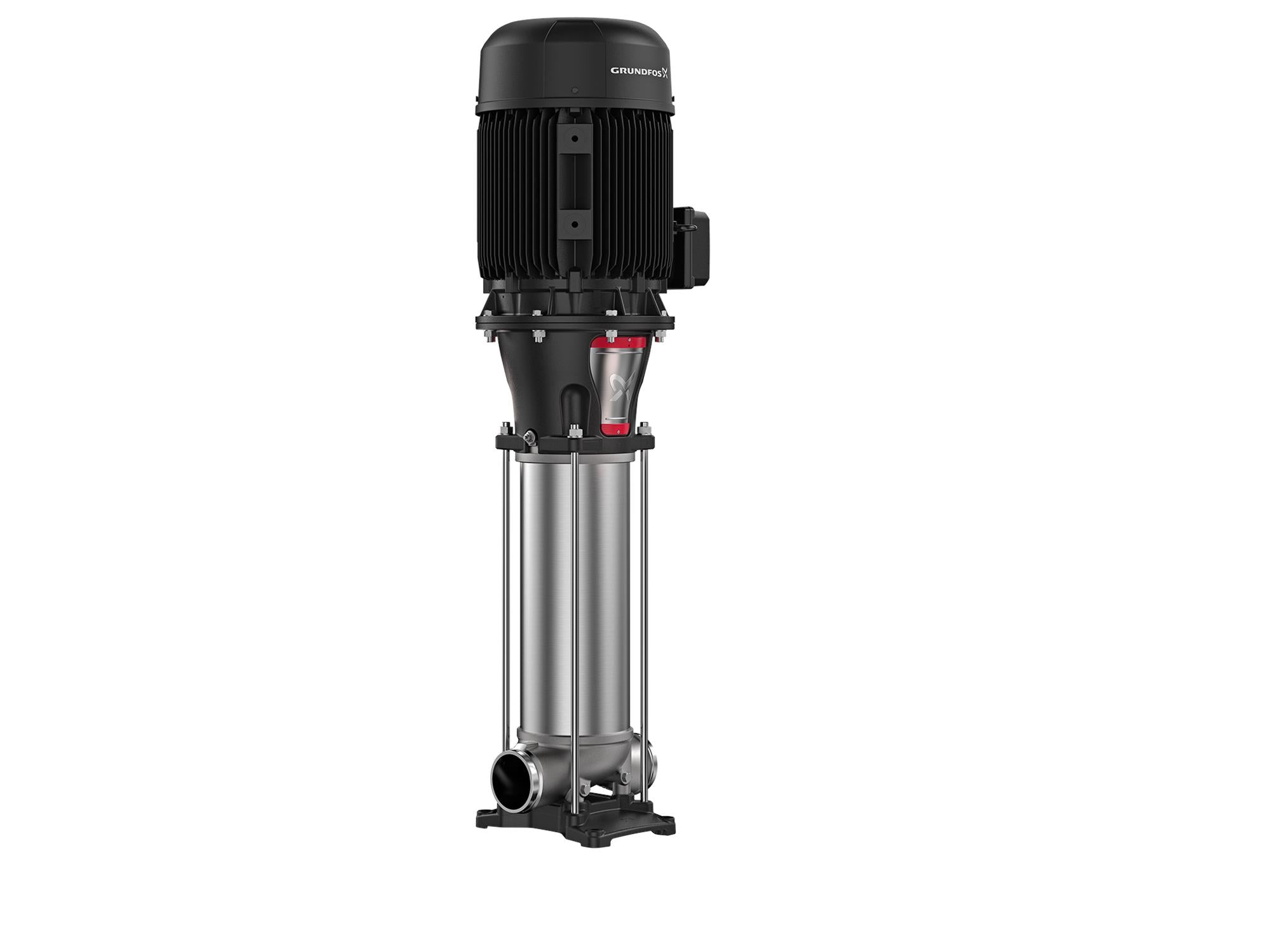

Grundfos 99400465, CRN 185-1 A-P-A-E-HQQE Vertical Multistage Pump

SKU: LSIINY5JOF Part Number: 99400465

Price:
Sale price$18,729.95 Regular price$29,265.00

Save 36% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level, with materials in contact with the liquid made from high-grade stainless steel (EN 1.4401). It is suitable for applications such as water treatment fertigation, chemigation and dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.

Specifications

Manufacturer Grundfos
Part Number 99400465
Rated pump speed 3541 rpm
Rated flow 980 US gpm
Rated head 159.1 ft
Maximum head 215.6 ft
Stages 1
Impellers 1
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQE
Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Curve tolerance ISO9906:2012 3B
Pump version A
Base Stainless steel, EN 1.4408, ASTM A351 CF8M
Impeller Stainless steel, EN 1.4401, AISI 316
Material code A
Code for rubber E
Bearing WC/WC
Support bearing Graflon
Material certified according to European standards
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 250 °F
Type of connection PJE
Size of suction port 8 inch
Size of outlet port 8 inch
Pressure rating for connection 800 psi
Flange size for motor 326TSC
Connect code P
Pumped liquid Water
Liquid temperature range -4 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Power (P2) required by pump 50 HP
Frequency converter None
Net weight 556 lb
Gross weight 814 lb
Shipping volume 44.2 ft³
Thrust handling device N
Country of origin US
Custom tariff no. 8413.70.2040

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
