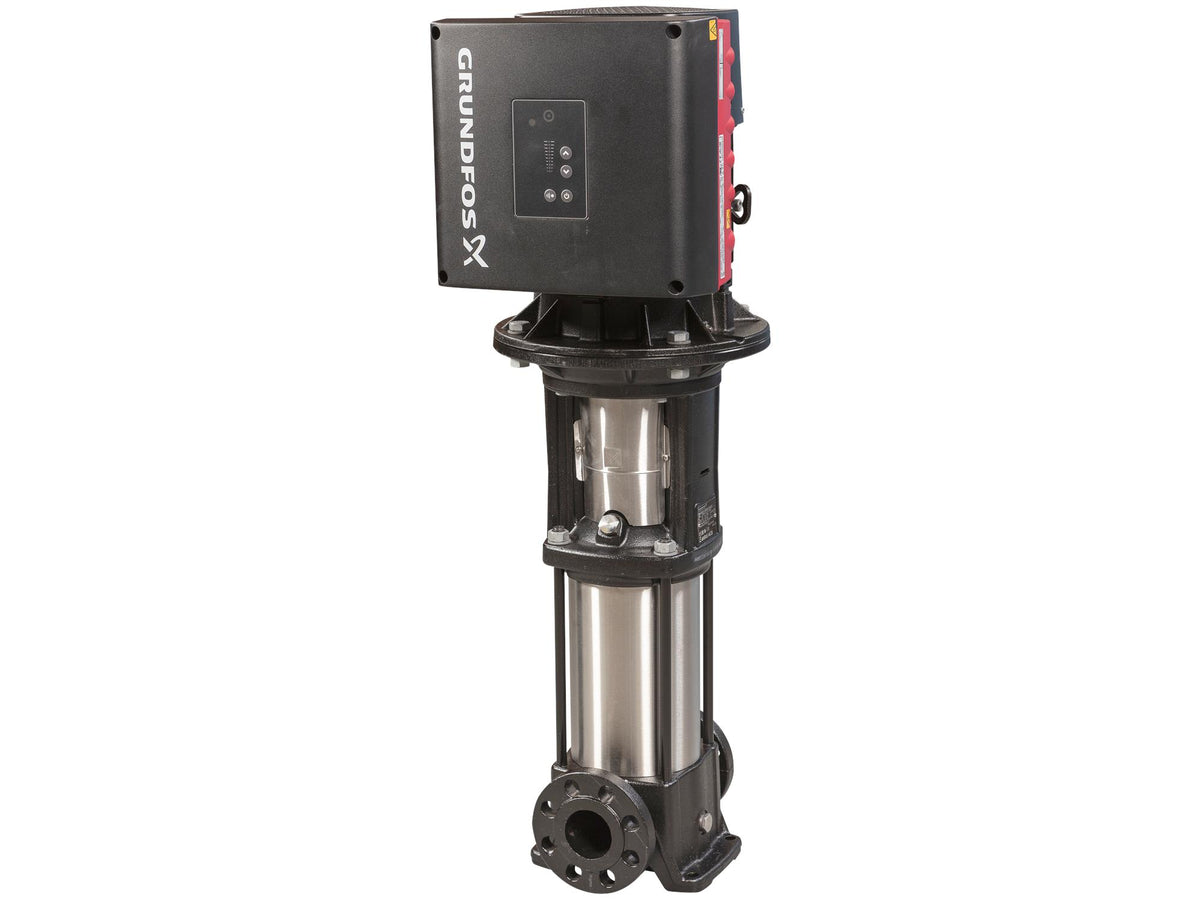

Grundfos 99076376, CRE 10 Hydro MPC-E Booster System Vertical Multistage Pump

SKU: LSIJKOC343 Part Number: 99076376

Price:
Sale price$14,578.95 Regular price$16,289.00

Save 10% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has an integrated frequency converter and is constructed with a cast iron pump head and base, while all other wetted parts are made of stainless steel (EN 1.4301).

Specifications

Manufacturer Grundfos
Part Number 99076376
Rated pump speed 3444 rpm
Rated flow 53.3 US gpm
Rated head 638.2 ft
Maximum head 817 ft
Actual impeller diameter 3.66 in
Stages 18
Impellers 17
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQE
Approvals CE,CURUS
Approvals for drinking water NSF/ANSI 61
Curve tolerance ISO9906:2012 3B
Pump version A
Base Cast iron, EN 1561 EN-GJL-200, ASTM A48-25B
Impeller Stainless steel, EN 1.4301, AISI 304
Material code A
Code for rubber E
Bearing SIC
Maximum ambient temperature 122 °F
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 250 °F, 363 psi / -4 °F
Type of connection ANSI / JIS
Size of inlet connection DN 50
Size of outlet connection DN 50
Pressure rating for connection PN 25
Flange rating inlet 300 lb
Flange size for motor 254TC
Connect code GJ
Pumped liquid Water
Liquid temperature range -4 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Motor type 160H
Rated power - P2 15 HP
Power (P2) required by pump 15 HP
Over/undersize motor Standard motor size
Main frequency 60 Hz
Rated voltage 3 x 440-480 V
Service factor 1.15
Rated current 17.9-16.6 A
Cos phi - power factor 0.92-0.91
Rated speed 360-4000 rpm
IE Efficiency class IE5
Motor efficiency at full load 93.2 %
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F
Built-in motor protection ELEC
Control panel Graphical
Function Module FM300 - Advanced
Frequency converter Built-in
Pressure sensor N
Terminal box position 6
DOE Pump Energy Index VL 0.39
Net weight 258 lb
Gross weight 370 lb
Shipping volume 17.2 ft³
Config. file no 99074181
Country of origin US
Custom tariff no. 8413.70.2040

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.

Estimate shipping

Repair Parts

(4 items)

Grundfos 96511844, Mechanical Seal Kit CR10, 15, 20
Save 6%
Grundfos 96511925, Wear Parts Kit for CR/I/N10 - 22 Stages (SIC)
Save 6%

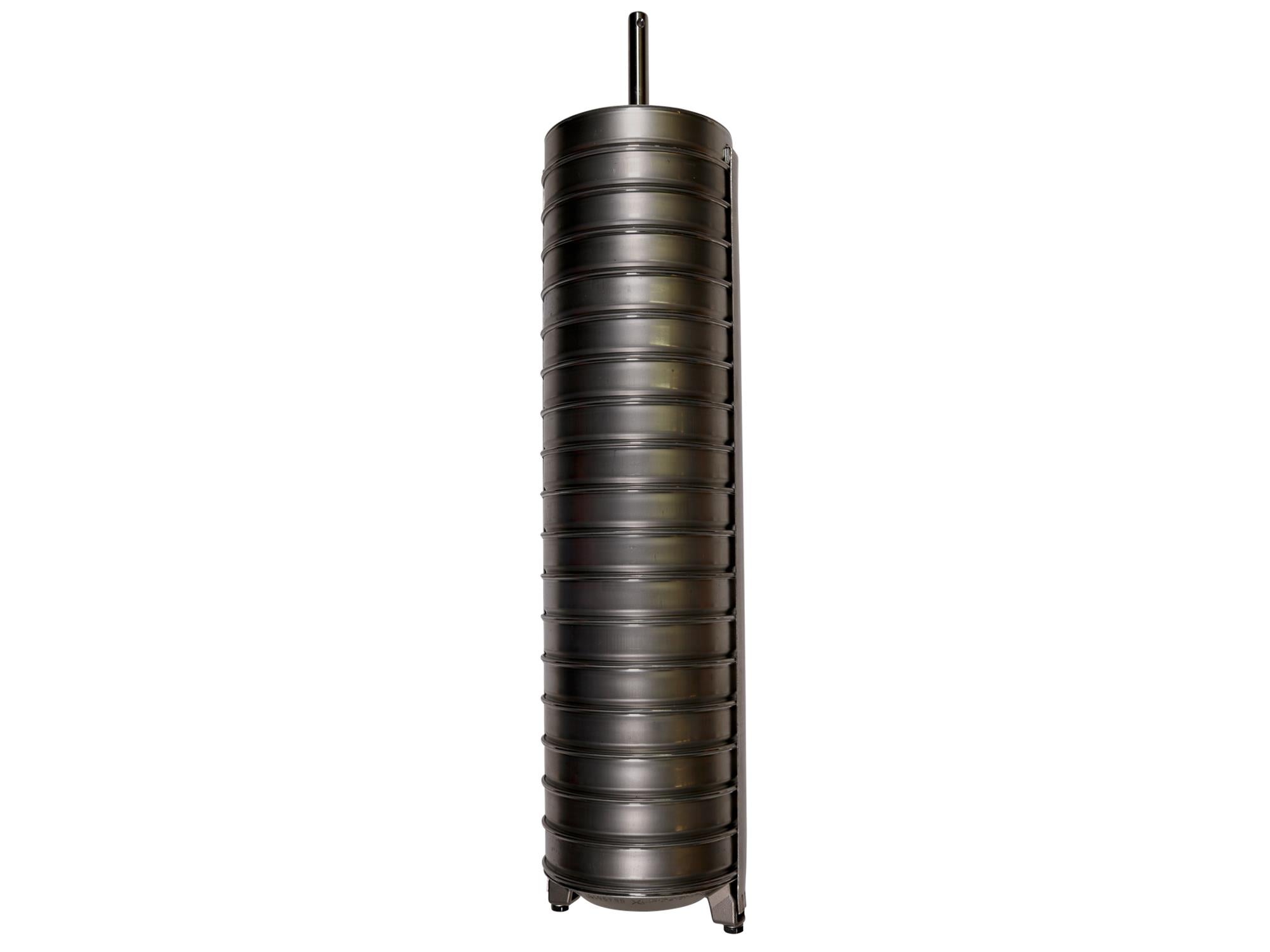

Grundfos 96529403, Chamber Stack Kit CR 10-17
