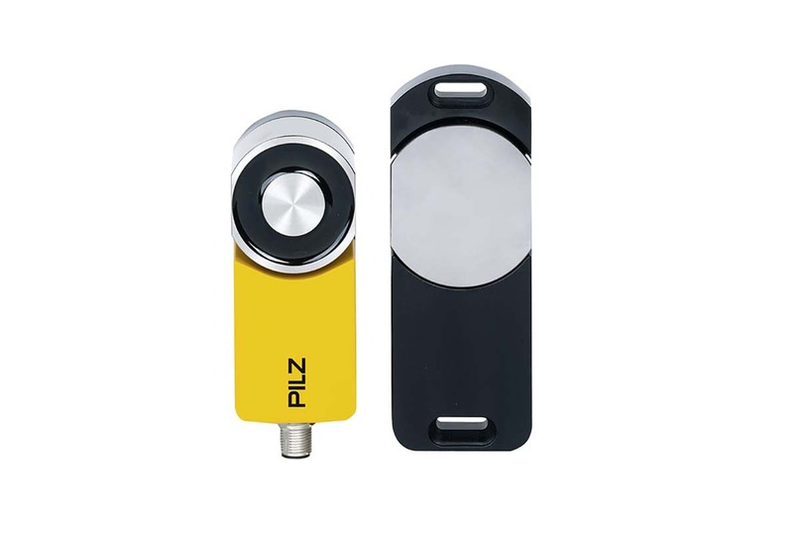

Magnetic transponder safety gate system with standard actuator, coded switch, and four (4) LED indicators for applications up to SIL3/PL e/Cat4. Magnetic holding force of 500N (process protection). 8-pin M12 connector, 4 LEDs.
General Data
| Approval |
CE
UKCA
cULus Listed
FCC
IC
EAC (Eurasian)
TÜV |
| Sensor principle |
Transponder |
| Coding level to ISO 14119 |
Low |
| Classification to EN 60947-5-3 |
PDDB |
| Transponder coding |
coded |
|
Suitable for series connection
|
yes
|
Electrical Data
| Supply voltage (V) |
24 V |
| Type of supply voltage U1 |
DC |
| Power consumption DC |
4.8 W |
Inputs
| Number of inputs |
3 |
| DC voltage at input |
24 V DC |
Semiconductor Outputs
| Number of OSSD outputs |
2 |
| Number of signal outputs |
1 |
| S/C output short circuit proof |
Yes |
| Utilisation cat. to EN 60947-1 |
DC-12 |
Environmental Data
| Ambient temperature standard |
EN 60068-2-14 |
| Ambient temperature |
-25 - 55 °C |
| Storage temperature standard |
EN 60068-2-1/-2 |
| Climatic suitability standard |
EN 60068-2-78 |
| Humidity rating |
93 % r. h. at 40 °C |
| EMC to standard ... |
EN 55011: Class A
EN 60947-5-3
EN 62061 |
| Vibration to standard ... |
EN 60947-5-2 |
| Acc. shock to standard1 |
30g |
| Overvoltage category |
III |
| Pollution degree clear & creep |
3 |
Mechanical Data
| Holding force magnet on |
500 N |
| Max. vertical offset |
5 mm |
| Max. angular offset |
2.5 deg |
| Type 1 actuator |
PSEN sl-0.5 1.1 |
| Sensor can be flush-mounted |
Yes, follow installation guide |
| Connection type |
M12, 8-pin male |
| Cable lines |
LiYY 8 x 0.25 mm2 |
| Housing material upper part |
PBT |
| Material of anchor plate |
Nickel-plated steel |
| Material of base plate |
Anticorodal, hard anodised |
| Material actuator |
Anticorodal, hard anodised |
| Height dimension |
122 mm |
| Width dimension |
45 mm |
| Depth dimension |
44 mm |
| Net weight |
950 g |
| Gross weight |
990 g |
Transponder Data
| Operating frequency |
122 kHz - 128 kHz |
The PSENslock non‑contact safety gate system from Pilz offers a safe alternative to existing mechanical technology. PSENslock combines secure safety gate monitoring and a non‑contact magnetic interlock within one unit. With this combination of safe position monitoring and process guard locking, PSENslock can be used universally for right or left‑hinged swing and sliding gates and is particularly suitable for movable guards. With an electromagnetic holding force of 500 or 1000 Newtons, the PSENslock prevents swing gates and sliding gates from being opened unintentionally. The actuator is manipulation‑proof, providing added safety. Its compact design makes this process guard‑locking device highly suitable for mounting onto standard 45 mm profiles.
PSENslock is designed for applications up to SIL 3 in accordance with IEC 62061, Category 4 in accordance with EN 954‑1, and protection type IP67. In terms of a complete solution, PSENslock can be connected to all Pilz evaluation devices.
-
Mechanically Non‑Wearing ‑ Long Service Life
-
Ideal for Rugged Industrial Applications
-
Insensitive to Dust and Water
