Description

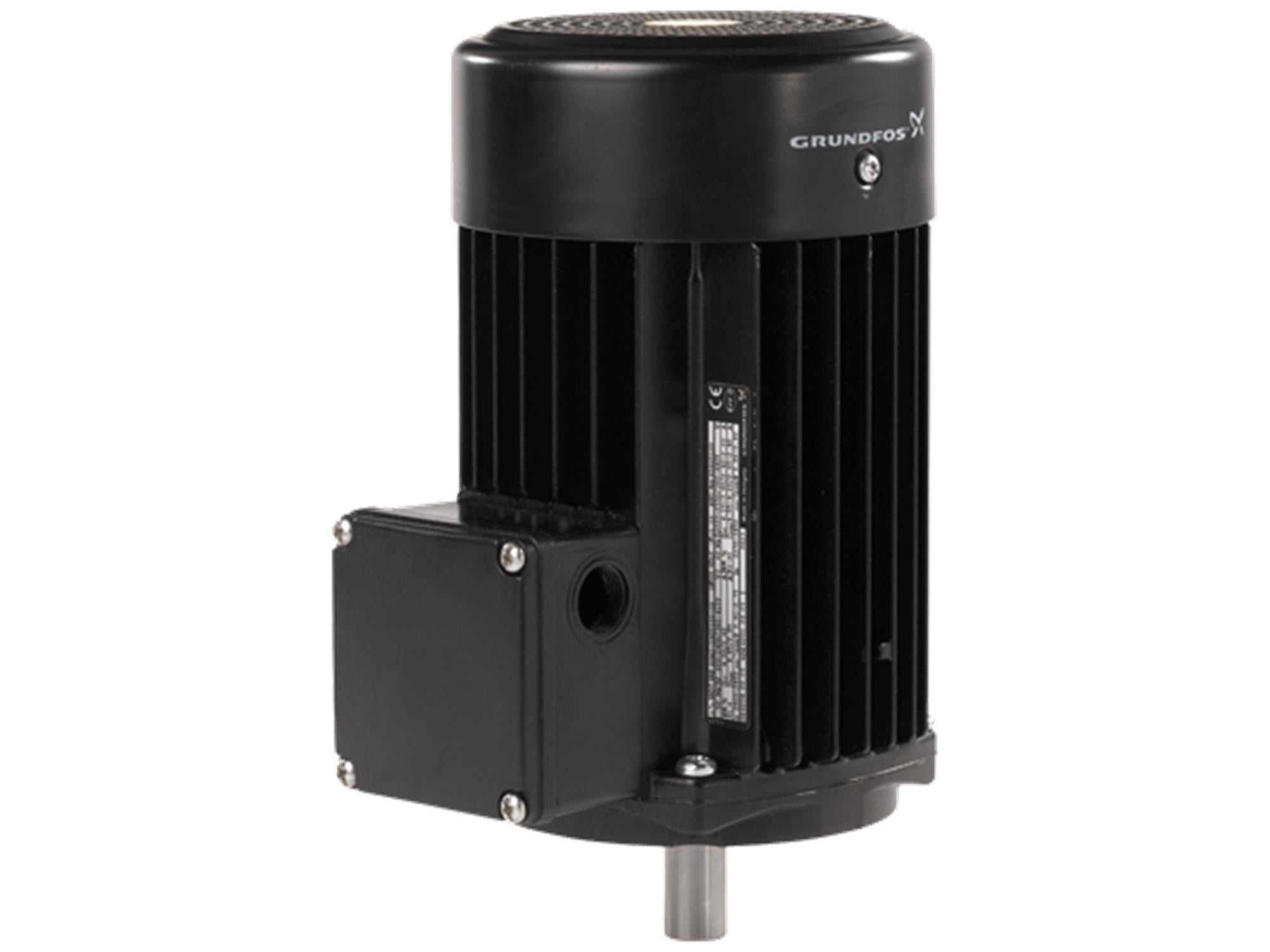

This motor is identified as the ML80CA and operates at 230/460 volts with a power output of 1.5 horsepower, suitable for standard applications.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 98976607 |
| Shaft diameter | 0.63 in |
| Length of shaft end | 1.89 in |
| Approvals for motor | CE,EAC,UKCA,SEPRO,RCM,cURus/cCSAus,Morocco |
| Energy approvals for motor | CE,CC |
| Cooling | TEFC |
| Cable gland entry | 2xPG 16 blind plug |
| Drain holes | Yes (closed) |
| Range of ambient temperature | -22 .. 140 °F |
| Flange size for motor | 56C |
| Motor standard | NEMA |
| Motor type | 80CA |
| Rated power - P2 | 1.5 HP |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 208-230YY/460Y V |
| Service factor | 1.15 |
| Rated current | 4,45-4,3/2,16 A |
| Starting current | 720 % |
| Full load SF current | 5,1-4,95/2,48 A |
| Cos phi - power factor | 0.84-0.78 |
| Rated speed | 3440-3480 rpm |
| Rated full-load torque | 3.05-3.0 Nm |
| Locked-rotor torque | 300-280 % |
| Breakdown torque | 360-440 % |
| Moment of inertia | 0.018 lb ft² |
| IE Efficiency class | NEMA Premium / IE3 60Hz |
| Motor efficiency at full load | 84.1-83.5 % |
| Motor efficiency at 3/4 load | 83.5-81.0 % |
| Motor efficiency at 1/2 load | 82.0 % |
| Number of poles | 2 |
| Enclosure class (IEC 34-5) | 55 Dust/Jetting |
| Insulation class (IEC 85) | F |
| Built-in motor protection | NONE |
| Tropic protec | No |
| Thermal protec | external |
| R1 | 2.85 ohm |
| R2 | 2.85 ohm |
| R3 | 2.85 ohm |
| Winding 1 | PHASE 1 |
| Winding 2 | PHASE 2 |
| Winding 3 | PHASE 3 |
| Mounting design per IEC 34-7 | NEMA type C |
| Bearing insulation type N-end | Steel Bearing |
| Net weight | 17.6 lb |
| Color/Type | NCS 9000 gloss 40+-10 /E-coat |
