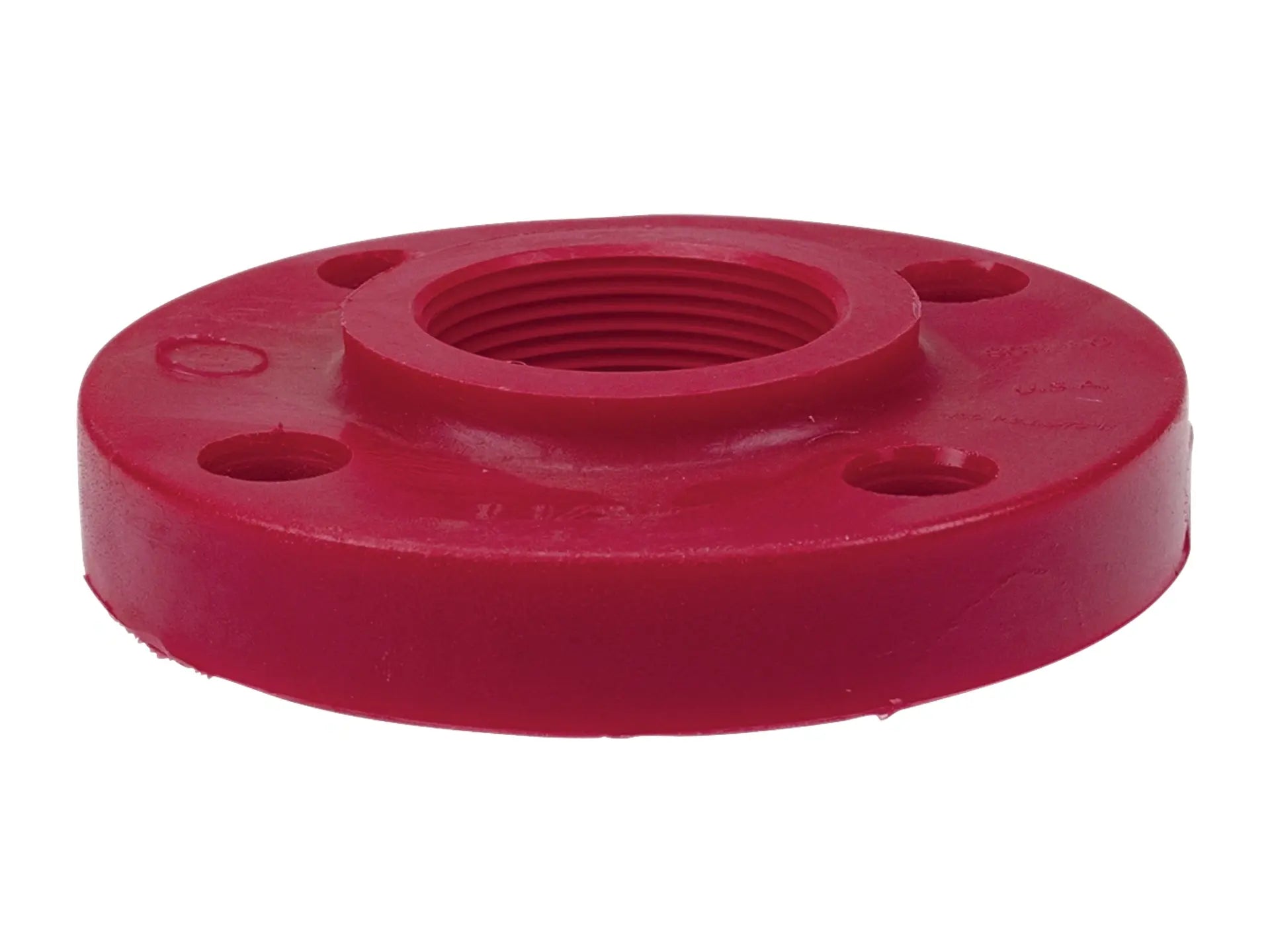

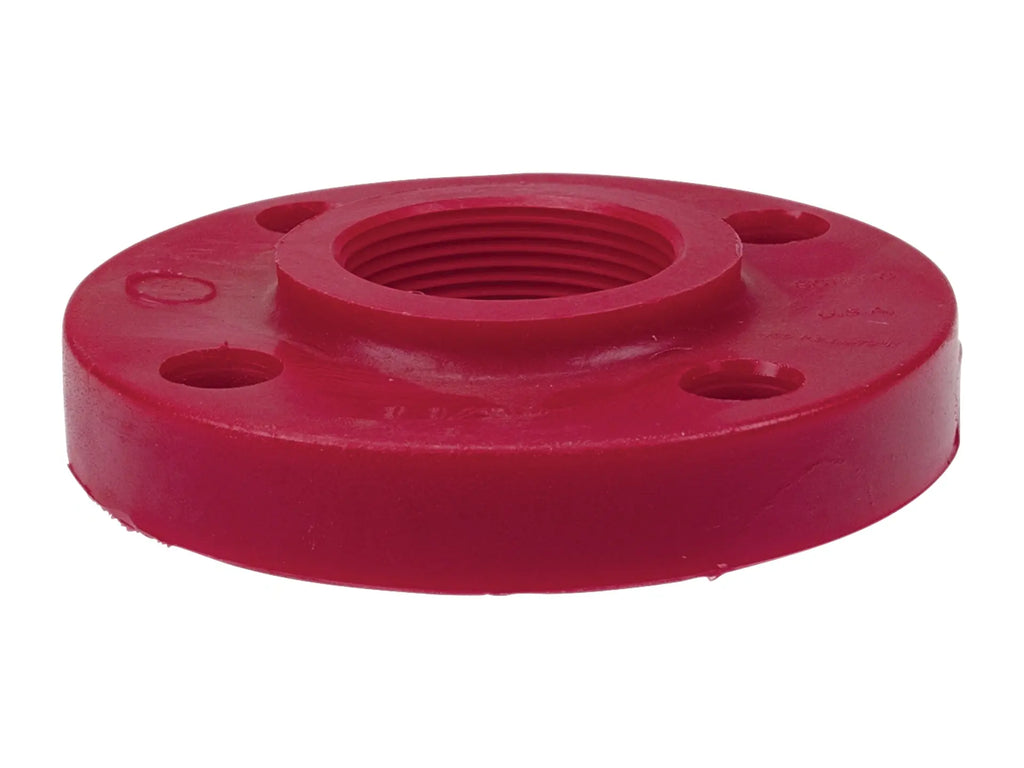

This Chemtrol Class 150 thread flange is an injection molded red Kynar polyvinylidene fluoride (PVDF) thermoplastic fitting that features a female NPT thread connection. Red Kynar fittings are ideal for use with hot corrosive liquids, chemical processing, industrial plating, and waste treatment systems. Chemtrol PVDF fittings are lightweight, easy to install and maintenance-free. Chemtrol fittings connect PVDF piping lengths together with thermo-seal fusion joining, threading or flanging to create a highly reliable, leak-free system. Please refer to Chemtrol technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Chemtrol Kynar red PVDF exhibits superior strength, working temperature and chemical resistance characteristics. Red pigment provides UV protection. Kynar PVDF offers versatile chemical resistance to slats, strong acids, dilute bases and many organic solvents such as aromatics, aliphadics and chlorinated groups. PVDF is also ideally suited for handling wet or dry chlorine bromine and other halogens. Chemtrol premium line of plastic fittings is backed by a 1-year limited warranty. Because Chemtrol is a NIBCO brand the flow-control fittings are unsurpassed in quality, performance and longevity.
Features
- Design stress of 1,360 psi at 73°F
- Maximum service temperature 280°F
- Universal Part No. 3852
- One-piece solid design
- Female NPT thread connections and flange connections compatible with ANSI B16.5 Class 150
- Do not use or test with compressed air or other gases
- ASTM D3222 Type I material
