Description

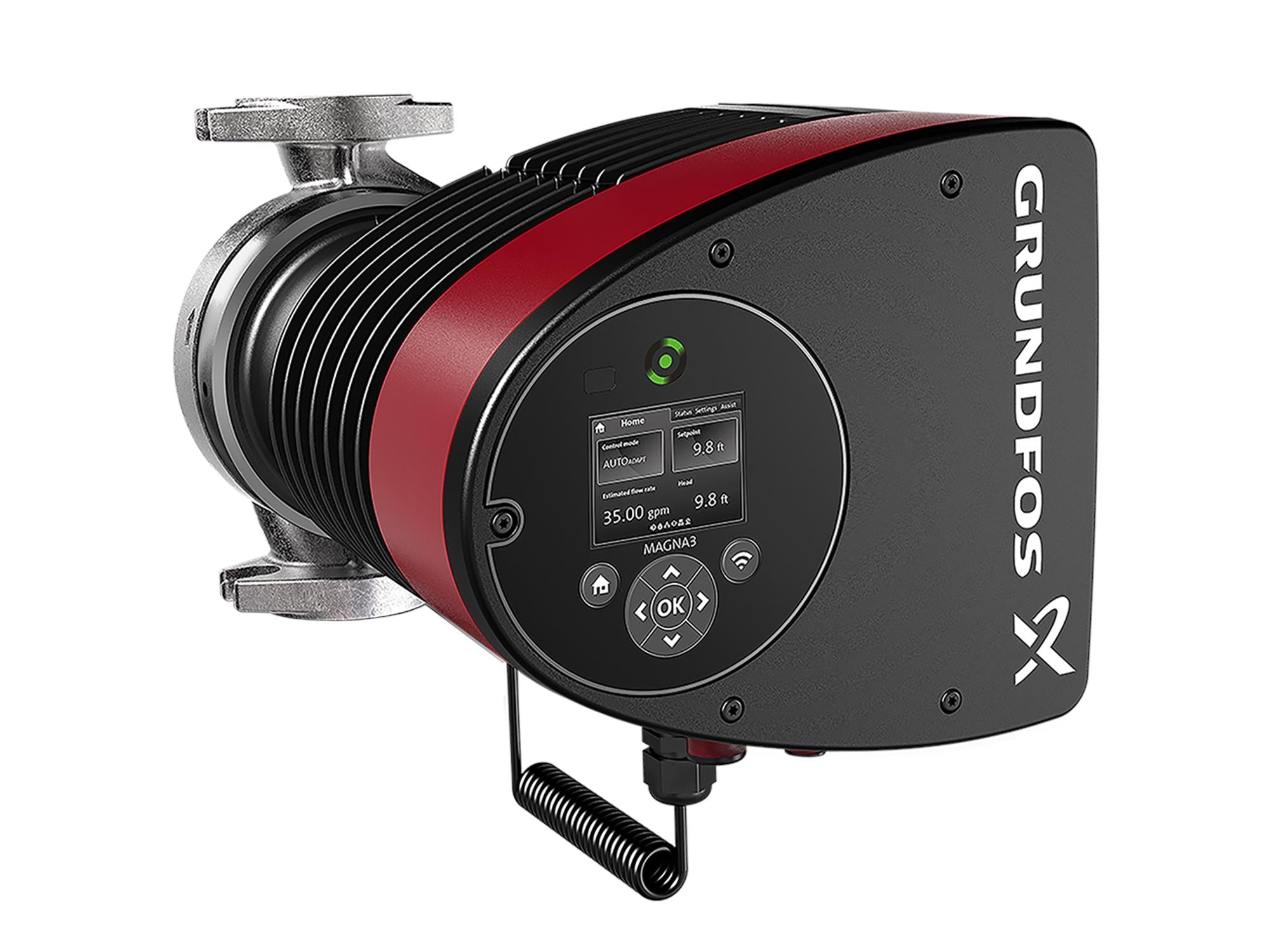

This circulator pump is a MAGNA3 40-180 GF N model with stainless steel construction, suitable for applications like domestic hot water recirculation. It operates on 115V power and has integrated Bluetooth connectivity for direct interaction with the GO APP.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 98126810 |
| Rated flow | 62.1 US gpm |
| Rated head | 31.5 ft |
| Maximum head | 59.06 ft |
| TF class | 110 |
| Approvals | cETLus, Proposition 65 |
| Approvals for drinking water | NSF372 |
| Pump housing | Stainless steel, EN 1.4308, ASTM A351-CF8 |
| Impeller | Composite |
| Range of ambient temperature | 32 .. 104 °F |
| Maximum operating pressure | 174.05 psi |
| Flange standard | GF |
| Pipe connection | GF15/26/40/43 |
| Pressure rating for connection | PN 12 |
| Port-to-port length | 8 9/16 in |
| Pumped liquid | Water |
| Liquid temperature range | 14 .. 230 °F |
| Selected liquid temperature | 140 °F |
| Density | 61.35 lb/ft³ |
| Maximum power input - P1 | 606 W |
| P1 min. | 16 W |
| Main frequency | 60 Hz |
| Rated voltage | 1 x 115 V |
| Minimum current consumption | 0.26 A |
| Maximum current consumption | 5.26 A |
| Enclosure class (IEC 34-5) | X4D |
| Insulation class (IEC 85) | F |
| Energy (EEI) | 0.19 |
| Net weight | 32.9 lb |
| Gross weight | 36.2 lb |
| Shipping volume | 1.06 ft³ |
| Country of origin | US |
| Custom tariff no. | 8413.70.2005 |
