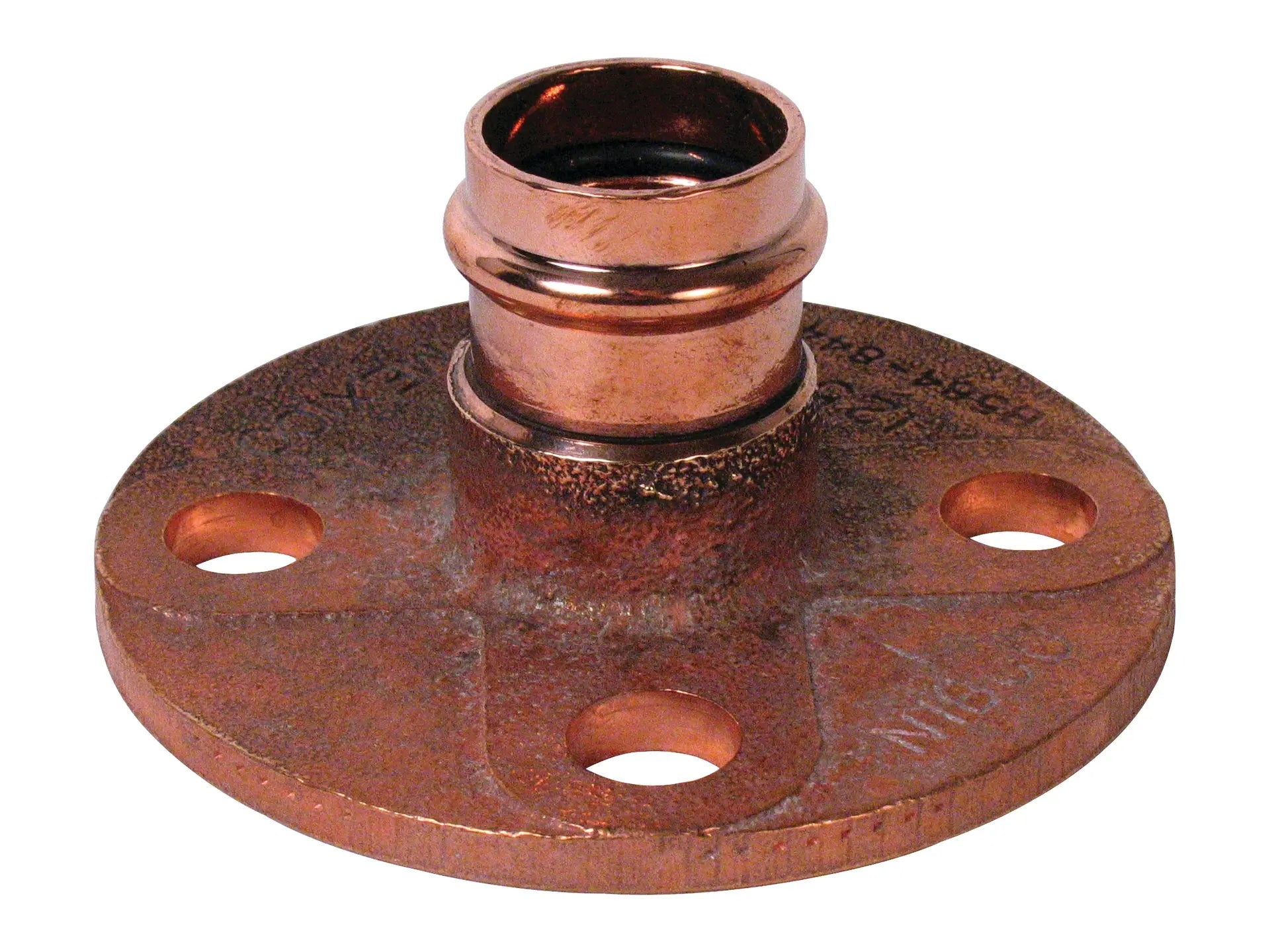

This NIBCO Press System companion flange features an inboard bead and EPDM O-ring. Simply applying pressure from a pressing tool tightens the O-ring onto the tube, ensuring a clean, watertight seal in seconds with no flame, solder or flux. The companion flange has a copper press connection and flanged end connection. The fitting provides a method for adapting a press connection to a flange connection. NIBCO Press System fittings are the fastest, easiest way to join copper tubing systems in residential and commercial potable, hot, chilled and process water applications for plumbing and HVAC systems. The press fittings can also be installed underground. This NIBCO Press System is user friendly, quick and easy to install. When properly crimped a unique "N" witness mark is clearly visible. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. NIBCO Press System applies the proven performance of press technology to NIBCO valves and fittings – the most specified flow control products in the industry. This NIBCO Press System features a full range of precision engineered copper and copper alloy fittings, commercial valves, accessories, pressing tools, jaws and chains. In addition to its inherent qualities of beauty, durability and low maintenance, copper's reusability makes it an ideal application in sustainable projects. NIBCO Press System copper fittings are backed by a 50-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.
Features
- Pressure Temperature Limits: Maximum Pressure 105 psi cwp; 90 psi at 250°F. These limits are in accordance with MSS SP-106 which governs Cast Copper Alloy Flanges and Flanged Fittings: Class 125, 150, and 300.
- Wrot copper outlet
- Cast bronze flange
- Dezincification resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- ASTM B584 C84400 brass
- ASTM B75 Alloy C12200 Copper
- Third party certified to the performance requirements of CSA MSE 13 and PS-117
