Description
This DME series digital dosing pump uses an internal step motor for precise control, ideal for process liquid transfer, industrial cooling, and water treatment. The display shows dosing rates in ml/h or l/h, with options for pulse or batch modes, ensuring accurate and efficient dosing management.
Specifications
Manufacturer | Grundfos |
---|---|
Part Number | 95905944 |
Max. capacity | 248.3 US gal/hour |
Approvals | CE, CSA, NSF61 |
Anti-cavitation | function integrated |
Venting valve | integrated in pump housing |
Valve | Standard |
Pump housing | Polypropylene |
Valve ball | Ceramic |
Gasket | EPDM |
Maximum operating pressure | 58.02 psi |
Pump inlet | THREADED NPT 1 1/4" |
Pump outlet | THREADED NPT 1 1/4" |
Pumped liquid | Water |
Selected liquid temperature | 68 °F |
Density | 62.29 lb/ft³ |
Power input - P1 | 240 W |
Main frequency | 60 Hz |
Rated voltage | 1 x 120-240 V |
Rated current | 2.4 A |
Type of cable plug | USA,CANADA |
Control variant | AR |
Control panel | Front |
Level control | Y |
Pulse control | input for pulse control integrated |
Batch (puls) | puls-based batch function integrated |
4-20 mA control | Y |
Capacity limit | max. capacity limitation function integrated |
Batch (timer) | timer-based batch function integrated |
Other in/output | ALARM RELAY |
Net weight | 49.6 lb |
Gross weight | 56.5 lb |
Country of origin | FR |
Custom tariff no. | 8413.50.0050 |

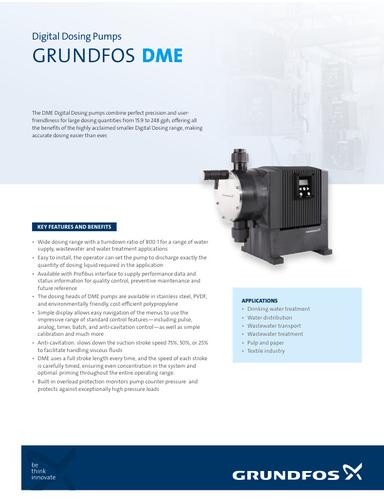

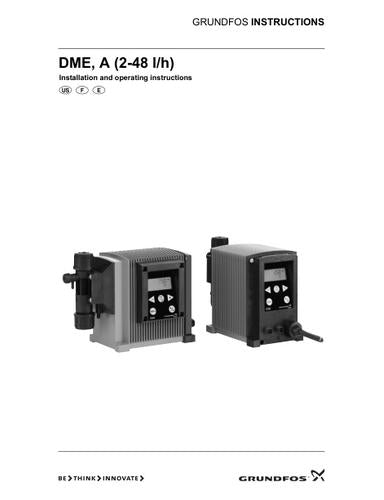

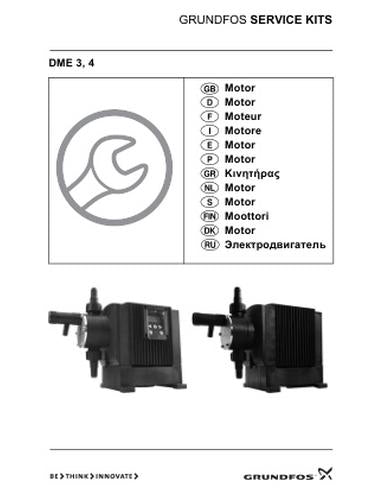

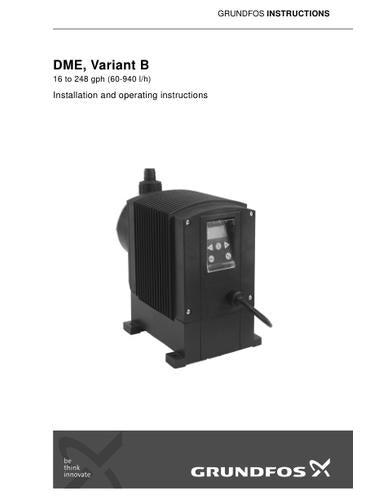

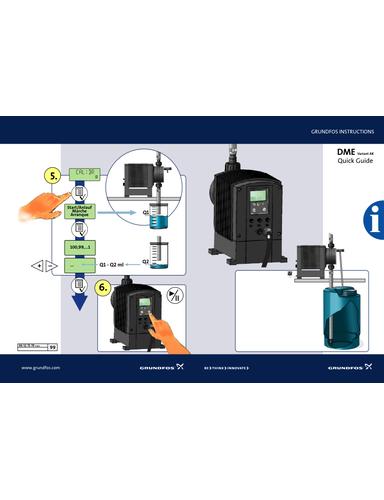

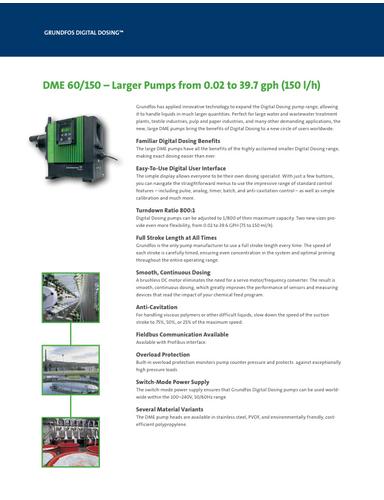

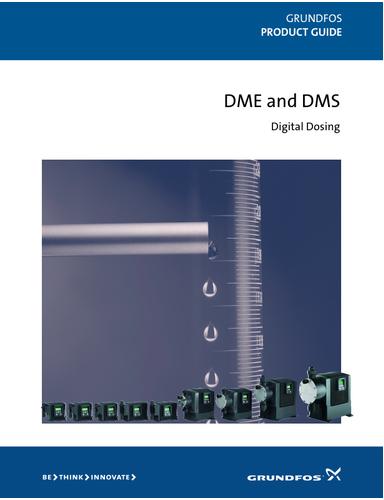

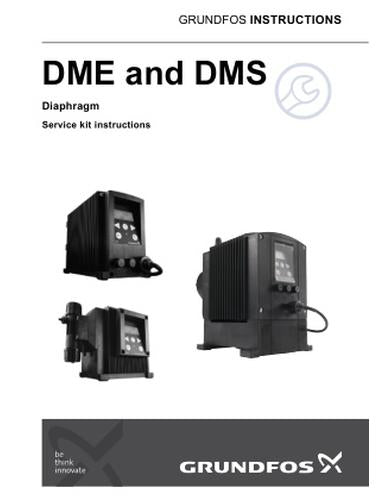

Documents
