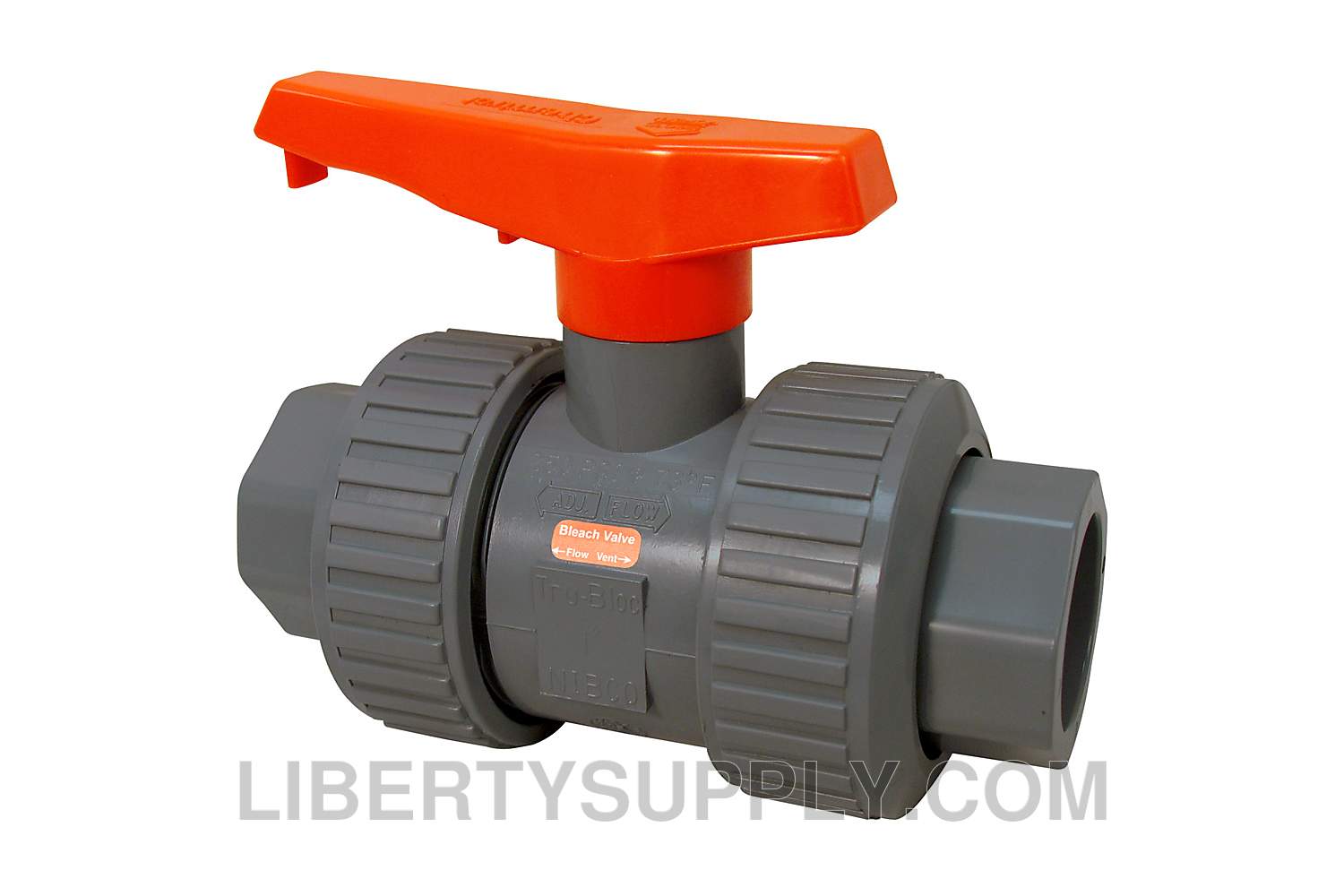

This Chemtrol Tru-Bloc True Union bleach ball valve is a viable solution for sodium hypochlorite transfer and injection applications. The vented ball effectively vents sodium hypochlorite out-gassing to the pressure port. The valve's injection molded PVC construction with FKM O-ring is ideal for water treatment, aquatic centers, and paper and textile applications. All inner surfaces of the Tru-Bloc bleach ball valve are constantly wetted and vented to the upstream side when the valve is closed, eliminating the conditions required for gas accumulation and caustic crystallization in the body cavity. The Tru-Bloc valve is engineered with a self-adjusting seat and upstream and downstream blocking capability to stop flow when an alternate union is removed to service the piping system. The valve can be easily joined with the universal socket and threaded end connections. Please refer to Chemtrol technical data sheets, valve selection guides, and catalogs for engineering and installation information. PVC Schedule 80 exhibits excellent corrosion resistance properties and has the highest long-term hydrostatic strength of any other major thermoplastic material used for piping systems. Chemtrol PVC valves are lightweight, easy to install, maintenance-free, and will not rust, scale, pit, or corrode. Choose Chemtrol valves for the most reliable, versatile, and economical valve option in commercial and industrial applications. A 1-year limited warranty backs Chemtrol valves. Because Chemtrol is a NIBCO brand, the flow-control valves are unsurpassed in quality, performance, and longevity.
Features
- Valve pressure rating 250 psi at 73°F water non-shock
- Full port
- True Bloc® design
- Vented ball
- FKM O-ring
- Includes both socket and female NPT thread end connections
- Orange handle
- Do not use or test with compressed air or other gases
- ASTM F1970
- NSF/ANSI Standard 14
- NSF/ANSI Standard 61, Annex G
