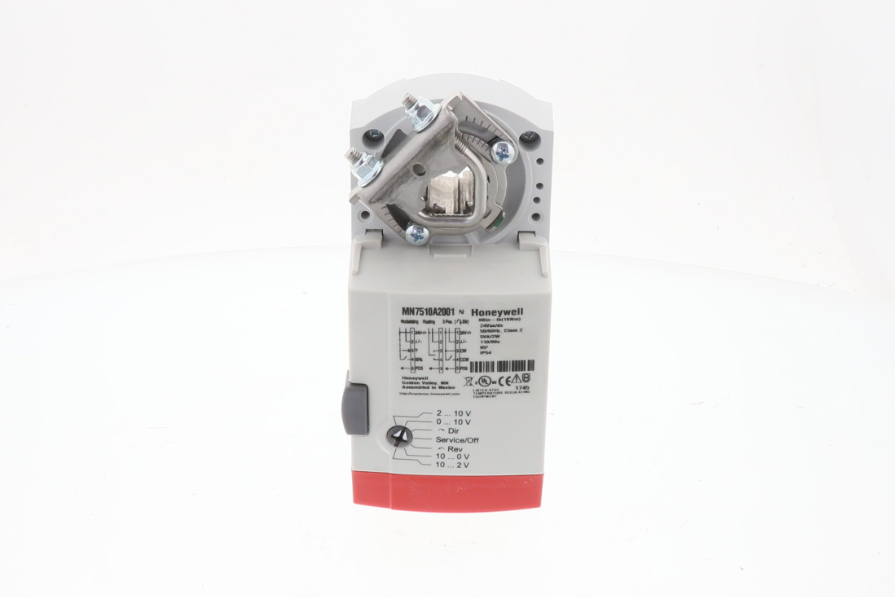

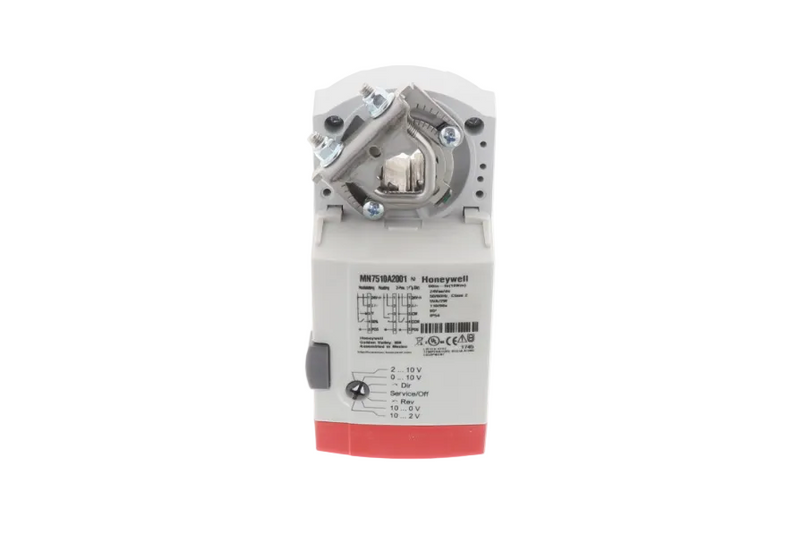

Direct coupled actuator, non-spring return, 88 lb-in, 10 Nm, 24 Vac, modulating (0/2-10 Vdc), floating.
5 and 10 Nm Series non-spring return direct-coupled damper actuators provide 2-position and floating control for air dampers, VAV units, air handlers, ventilation flaps, and louvers. 5 Nm and 10 Nm Series actuators deliver reliable control for air damper applications with up to 10 ft2 (0.9 m2)/44 lb-in (5 Nm) and 20 ft2 (1.9 m2)/88 lb-in (10 Nm) (seal-less damper blades; air friction dependent).
Features & Benefits:
- Declutch for manual adjustment
- Adjustable mechanical end limits
- Removable access cover for direct wiring
- Mountable in any orientation
- Rotation direction and service/off switch
- Available with cable on select models
Certifications:
- Protection Standard: IP54
- Protection Class: II as per EN 60730-1
- Overvoltage Category: II
