Description

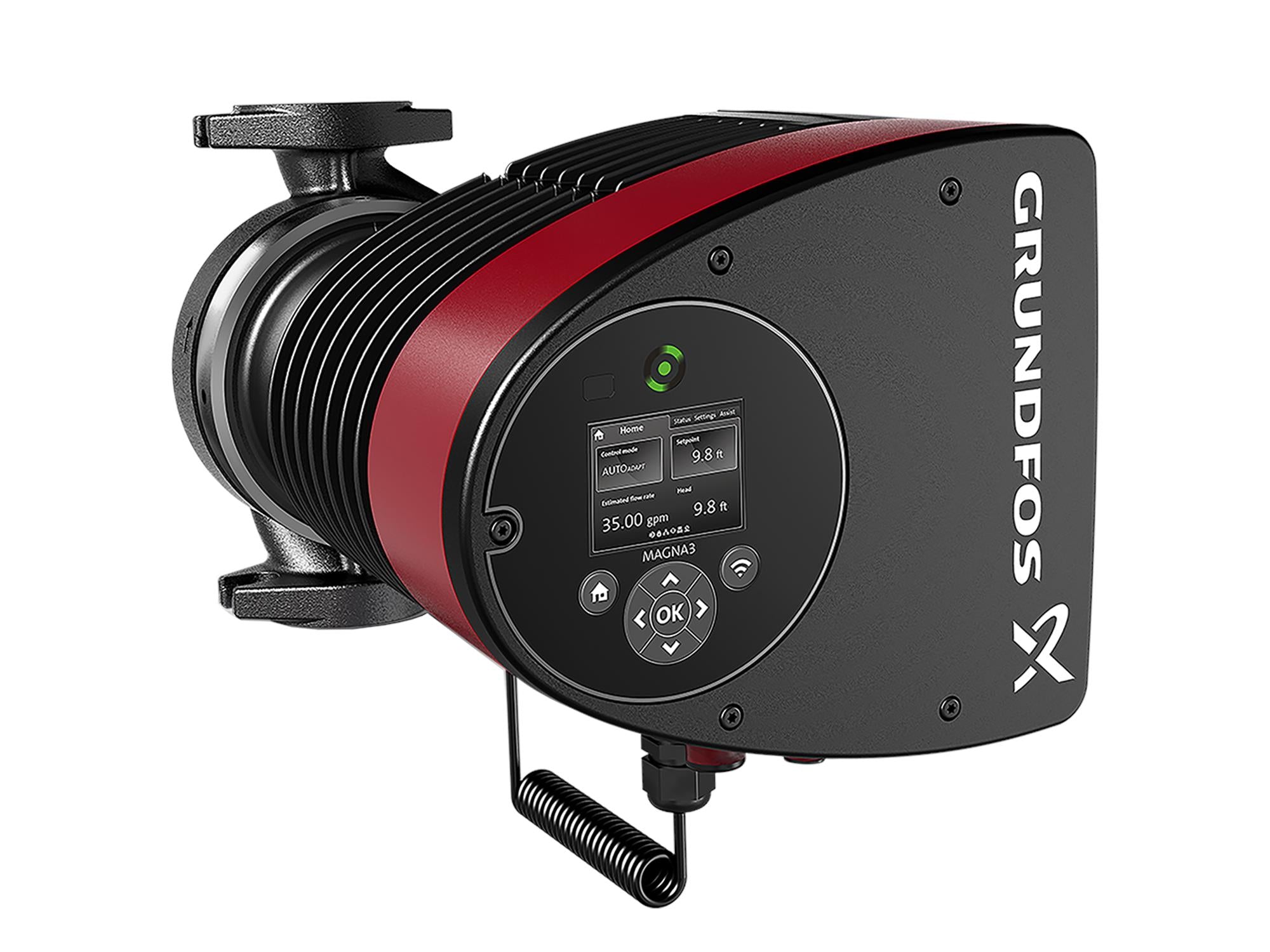

This circulator pump, known as the MAGNA3 40-120 GF, is designed for commercial heating and hot water recirculation applications. It operates at 230V and supports system control and monitoring with optional CIM modules for fieldbus connectivity. The pump connects directly to the Grundfos GO app via Bluetooth, enhancing its functionality in various commercial settings.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 98126832 |
| Rated flow | 55.5 US gpm |
| Rated head | 25.59 ft |
| Maximum head | 39.37 ft |
| TF class | 110 |
| Approvals | cETLus, Proposition 65 |
| Pump housing | Cast iron, EN 1561 EN-GJL-250, ASTM A48-250B |
| Impeller | Composite |
| Range of ambient temperature | 32 .. 104 °F |
| Maximum operating pressure | 174.05 psi |
| Flange standard | GF |
| Pipe connection | GF15/26/40/43 |
| Pressure rating for connection | PN 12 |
| Port-to-port length | 8 9/16 in |
| Pumped liquid | Water |
| Liquid temperature range | 14 .. 230 °F |
| Selected liquid temperature | 140 °F |
| Density | 61.35 lb/ft³ |
| Maximum power input - P1 | 440 W |
| P1 min. | 16 W |
| Main frequency | 60 Hz |
| Rated voltage | 1 x 208-230 V |
| Minimum current consumption | 0.19 A |
| Maximum current consumption | 2 A |
| Enclosure class (IEC 34-5) | X4D |
| Insulation class (IEC 85) | F |
| Energy (EEI) | 0.19 |
| Net weight | 30.8 lb |
| Gross weight | 34.1 lb |
| Shipping volume | 1.06 ft³ |
| Country of origin | US |
| Custom tariff no. | 8413.70.2005 |
