Description

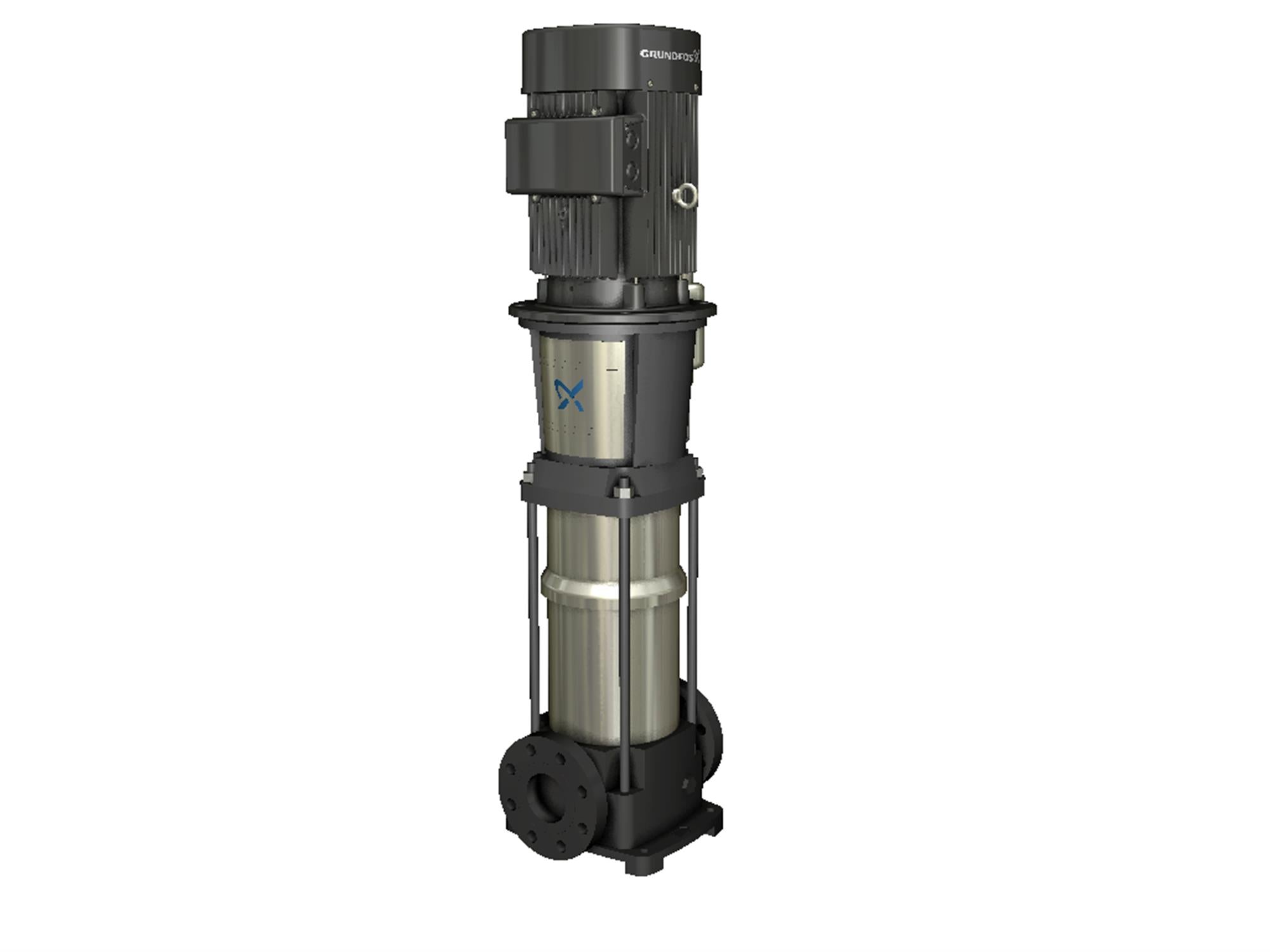

This vertical multistage centrifugal pump has suction and discharge ports on the same level.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 99736680 |
| Rated pump speed | 1760 rpm |
| Rated flow | 170 US gpm |
| Rated head | 25.92 ft |
| Maximum head | 38.39 ft |
| Actual impeller diameter | 5.59 in |
| Stages | 1 |
| Impellers | 1 |
| Number of reduced-diameter impellers | 0 |
| Low NPSH | N |
| Pump orientation | Vertical |
| Shaft seal arrangement | Single |
| Code for shaft seal | HQQE |
| Approvals | CURUS |
| Curve tolerance | ISO9906:2012 3B |
| Pump version | F |
| Base | Cast iron, EN 1563 EN-GJS-500-7, ASTM A536 80-55-06 |
| Impeller | Stainless steel, EN 1.4301, AISI 304 |
| Material code | A |
| Code for rubber | F |
| Support bearing | Graflon |
| Maximum ambient temperature | 104 °F |
| Maximum operating pressure | 362.59 psi |
| Max pressure at stated temperature | 363 psi / 356 °F, 362.59 psi / 14 °F |
| Type of connection | ANSI |
| Size of suction port | 4 inch |
| Size of outlet port | 4 inch |
| Pressure rating for connection | PN 40 |
| Flange rating inlet | 300 lb |
| Flange size for motor | 182TC |
| Connect code | G |
| Pumped liquid | Water |
| Liquid temperature range | 14 .. 356 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Motor standard | NEMA |
| Motor type | BALDOR |
| Rated power - P2 | 3 HP |
| Power (P2) required by pump | 3 HP |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 208-230/460 V |
| Service factor | 1.15 |
| Rated current | 8,6-8.2/4.1 A |
| Rated speed | 1760 rpm |
| IE efficiency | IE3 89,5% |
| IE Efficiency class | IE3 / NEMA Premium |
| Motor efficiency at full load | 89.5 % |
| Number of poles | 4 |
| Enclosure class (IEC 34-5) | IP54 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | NONE |
| Frequency converter | None |
| Pressure sensor | N |
| DOE Pump Energy Index CL | 0.94 |
| Net weight | 247 lb |
| Gross weight | 265 lb |
| Shipping volume | 17.5 ft³ |
