Description

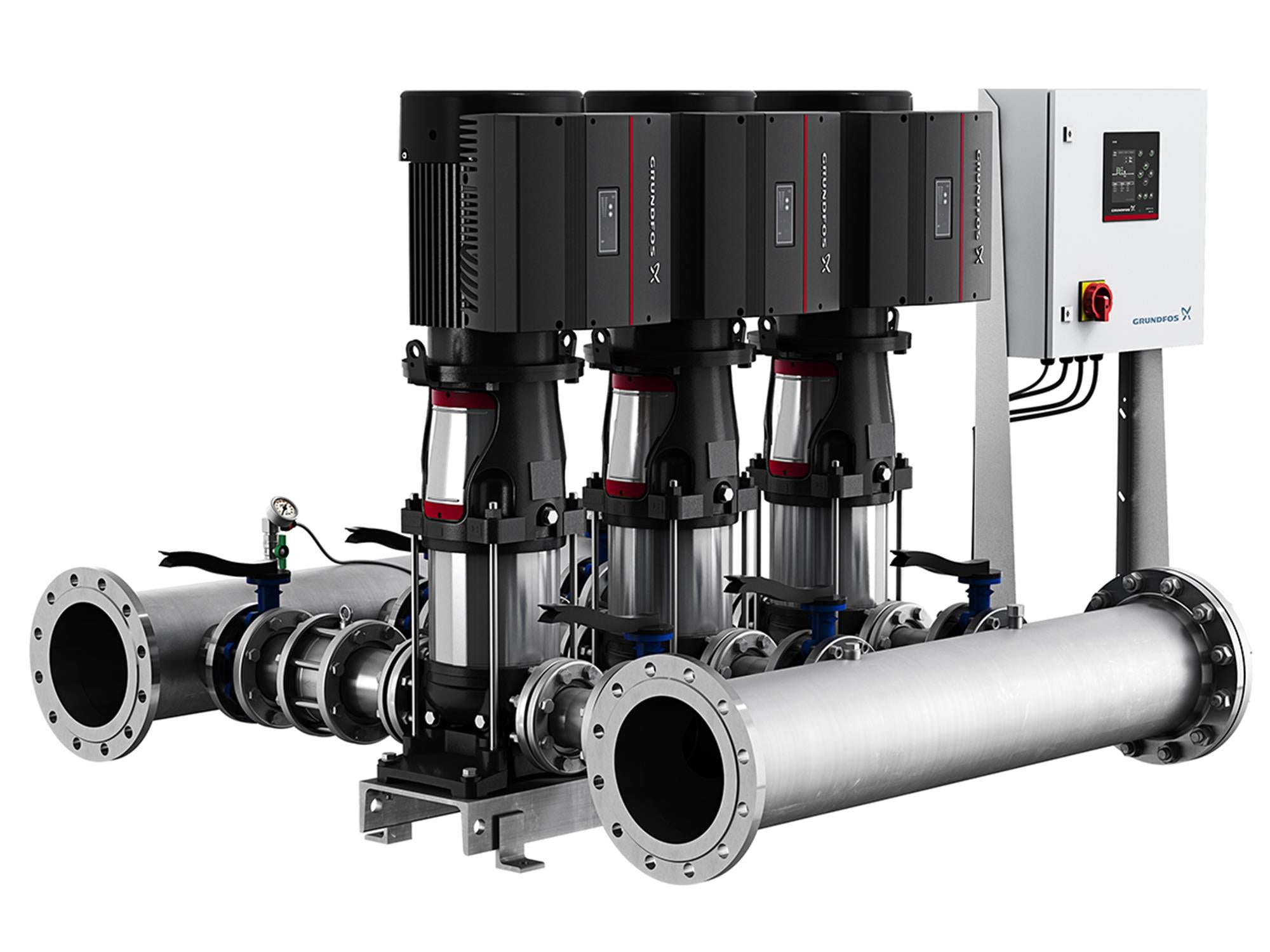

This pressure boosting system is an advanced and energy-efficient solution for boosting clean water. It has 2-6 parallel connected pumps, an integrated advanced controller, and all necessary fittings. Suitable applications include water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 99689062 |
| Rated flow | 1500 US gpm |
| Max flow | 1950 US gpm |
| Rated head | 212.3 ft |
| Maximum head | 293 ft |
| Approvals | CULUS,PROP65 |
| Main pump name | CRE 95-2 |
| Non-return valve position | Outlet |
| Number of pumps | 3 |
| Manifold | Stainless steel, EN 1.4571, AISI 316 TI |
| Base | Carbon steel, EN 1.0025, ASTM A36 |
| Range of ambient temperature | 41 .. 104 °F |
| Maximum operating pressure | 232.06 psi |
| Manifold inlet | ANSI 8" |
| Manifold outlet | ANSI 8" |
| Pressure rating for connection | PN 16 |
| Earth connection | PE |
| System design | D |
| Pumped liquid | Water |
| Liquid temperature range | 41 .. 179.6 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Power (P2) main pump | 29.5 HP |
| Rated power - P2 | 30 HP |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 460-480 V |
| Rated current | 36.5 A |
| Rated current of system | 110 A |
| Enclosure class (IEC 34-5) | IP54 |
| Radio interference supression | EMC DIRECTIVE(2014/30/EU) |
| Number of phases of main pump | 3 |
| Control type | E |
| Dry running protection, mechanical | PRESSURE SENSOR 0-10 BAR |
| Controller | CU 352 |
| Diaphragm tank | No |
| Net weight | 2790 lb |
| Gross weight | 3310 lb |
| Shipping volume | 338 ft³ |
| Sales region | Namreg |
| Config. file no | 99406276 |
| Configuration file Control MPC | 98271947 |
| Configuration file Hydro MPC | 98272054 |
