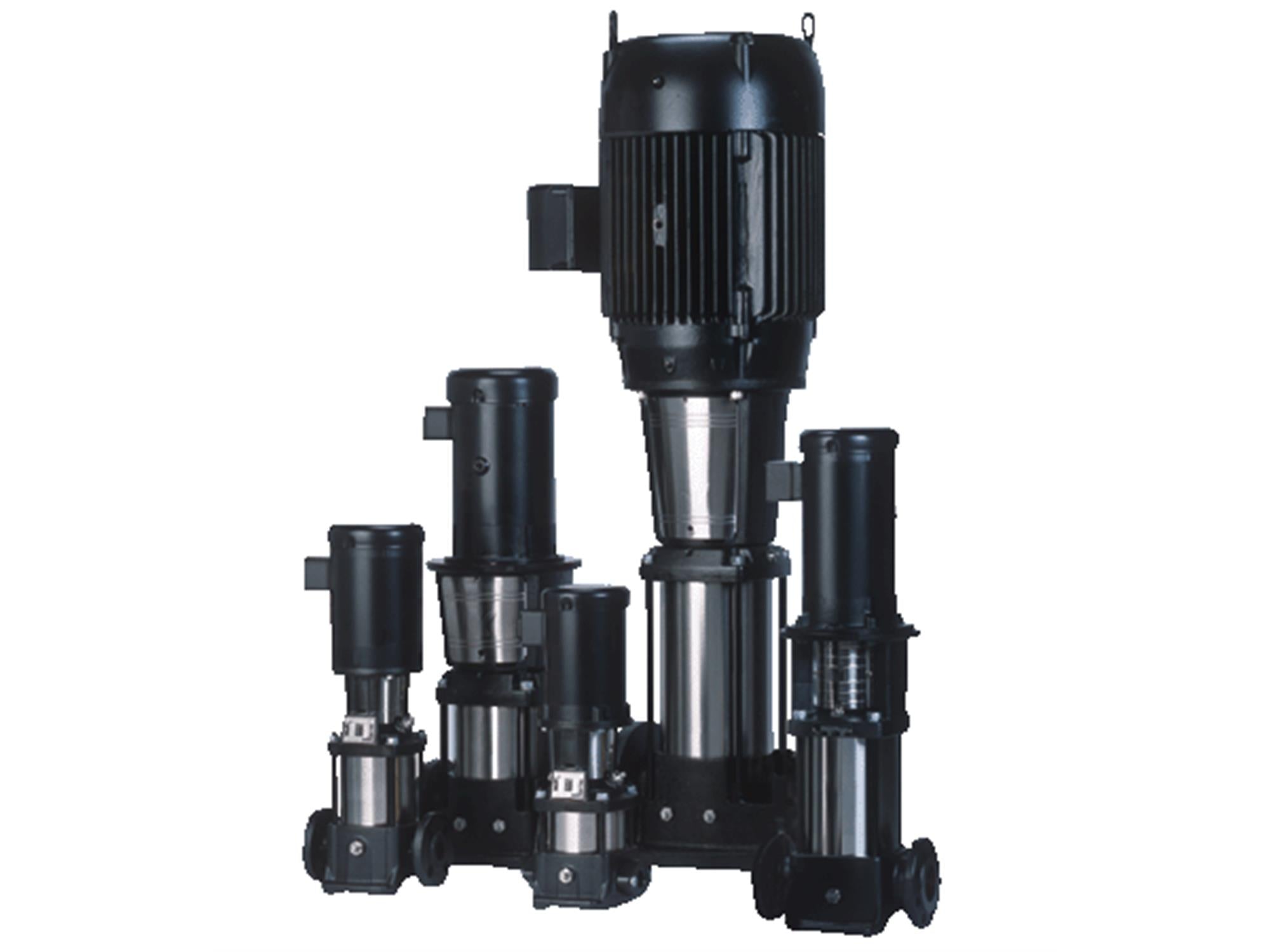

Grundfos 99968305, CR15-6 K-GJ-A-E-HQQE Vertical Multistage Pump

SKU: LSINCZHZ4Z Part Number: 99968305

Price:
Sale price$6,782.95 Regular price$10,597.00

Save 36% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level. The pump head and base are constructed from cast iron, while all other wetted parts are made of stainless steel (EN 1.4301).

Specifications

Manufacturer Grundfos
Part Number 99968305
Rated pump speed 3450 rpm
Rated flow 90.3 US gpm
Rated head 336 ft
Maximum head 415.4 ft
Actual impeller diameter 4.13 in
Stages 6
Impellers 6
Number of reduced-diameter impellers 0
Low NPSH Y
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQE
Approvals CURUS
Curve tolerance ISO9906:2012 3B
Pump version K
Cooling IC 411
Base Cast iron, EN 1561 EN-GJL-200, ASTM A48-25B
Impeller Stainless steel, EN 1.4301, AISI 304
Material code A
Code for rubber E
Bearing SIC
Maximum ambient temperature 104 °F
Maximum operating pressure 232.06 psi
Max pressure at stated temperature 232 psi / 250 °F, 232 psi / -4 °F
Type of connection ANSI / JIS
Size of inlet connection DN 50
Size of outlet connection DN 50
Pressure rating for connection PN 25
Flange rating inlet 300 lb
Flange size for motor 254TC
Connect code GJ
Pumped liquid Water
Liquid temperature range -4 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Motor type WEG
Rated power - P2 15 HP
Power (P2) required by pump 15 HP
Main frequency 60 Hz
Rated voltage 3 x 230/460 V
Service factor 1.15
Rated current 34.8/17.4 A
Starting current 680 %
Full load SF current 40/20 A
Cos phi - power factor 0.87
Rated speed 3525 rpm
IE efficiency IE3 91%
IE Efficiency class IE3 / NEMA Premium
Motor efficiency at full load 91 %
Motor efficiency at 3/4 load 91 %
Motor efficiency at 1/2 load 89.5 %
Number of poles 2
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F
Built-in motor protection NONE
Frequency converter None
DOE Pump Energy Index CL 0.93
Net weight 302 lb
Gross weight 388 lb
Shipping volume 13.1 ft³
Country of origin US
Custom tariff no. 8413.70.2040

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
