Description
This hydro MPC-E 3 CRE10-2 UL D-A-A-HV is designed for specific applications requiring precise control and efficiency.
Specifications
Manufacturer | Grundfos |
---|---|
Part Number | 99688788 |
Rated flow | 160 US gpm |
Max flow | 207 US gpm |
Rated head | 72.51 ft |
Maximum head | 95.81 ft |
Approvals | CULUS,PROP65 |
Main pump name | CRE 10-2 |
Non-return valve position | Outlet |
Number of pumps | 3 |
Manifold | Stainless steel, EN 1.4571, AISI 316 TI |
Base | Stainless steel, EN 1.4301, ASTM 304 |
Range of ambient temperature | 41 .. 104 °F |
Maximum operating pressure | 232.06 psi |
Manifold inlet | NPT 3" |
Manifold outlet | NPT 3" |
Pressure rating for connection | PN 16 |
Earth connection | PE |
System design | D |
Pumped liquid | Water |
Liquid temperature range | 41 .. 179.6 °F |
Selected liquid temperature | 68 °F |
Density | 62.29 lb/ft³ |
Power (P2) main pump | 1.48 HP |
Rated power - P2 | 1.5 HP |
Main frequency | 60 Hz |
Rated voltage | 3 x 460-480 V |
Rated current | 2.05 A |
Rated current of system | 7.2 A |
Enclosure class (IEC 34-5) | IP54 |
Radio interference supression | EMC DIRECTIVE(2014/30/EU) |
Number of phases of main pump | 3 |
Control type | E |
Dry running protection, mechanical | PRESSURE SENSOR 0-10 BAR |
Controller | CU 352 |
Diaphragm tank | No |
Net weight | 582 lb |
Gross weight | 880 lb |
Shipping volume | 144 ft³ |
Sales region | Namreg |
Config. file no | 98272389 |
Configuration file Control MPC | 98271947 |
Configuration file Hydro MPC | 98272054 |
Country of origin | US |
Custom tariff no. | 8413.70.2040 |

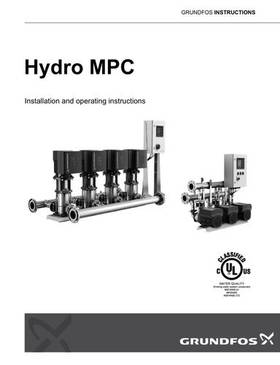

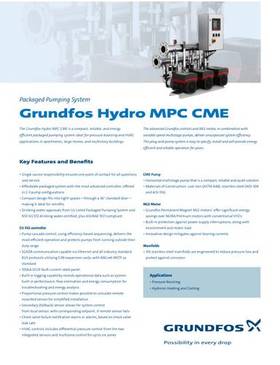

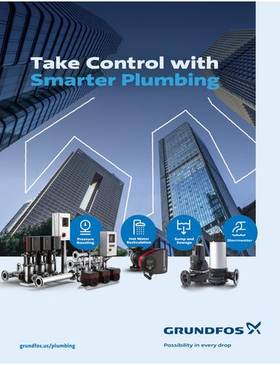

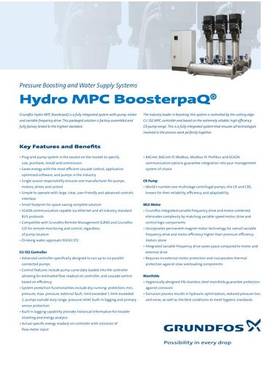

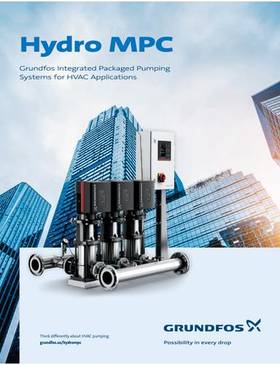

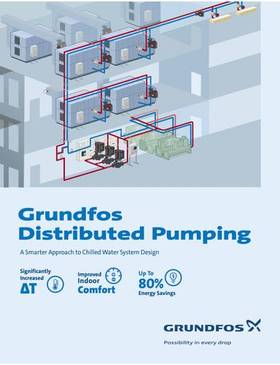

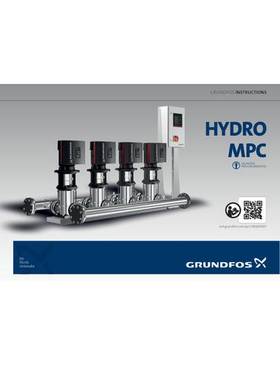

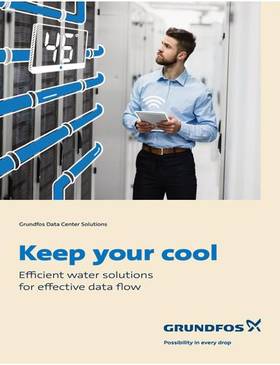

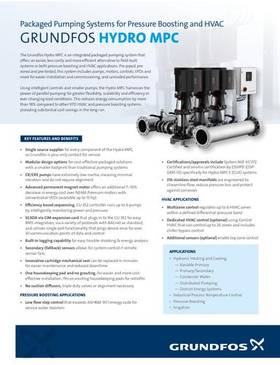

Documents
