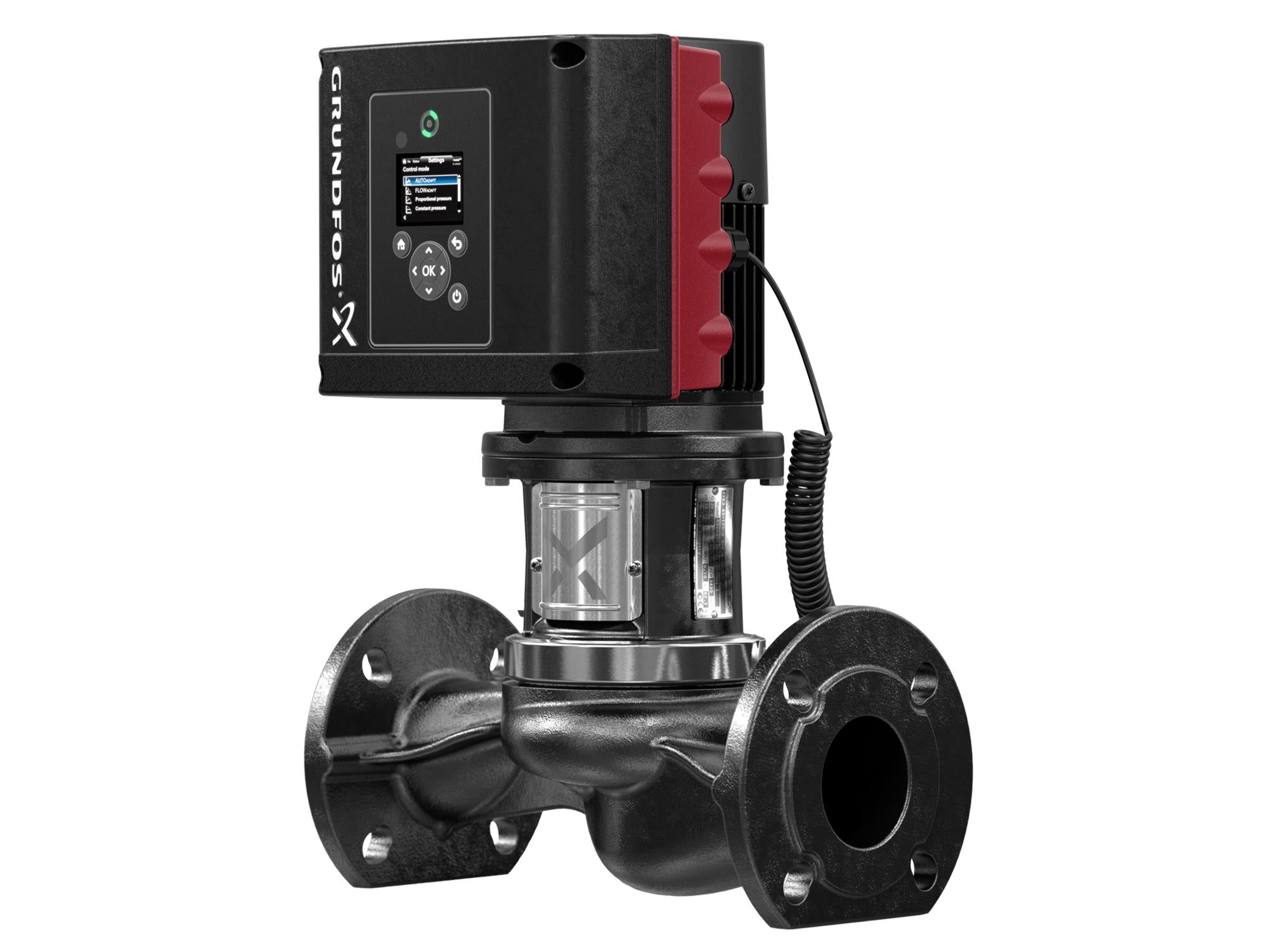

Grundfos 98819593, TPE3 50-150 S-A-G-A-BQQE-FYB Inline Pump

SKU: LSIOVQ03JF Part Number: 98819593

Price:
Sale price$4,711.95 Regular price$7,853.00

Save 40% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability

Description

This inline single-stage pump is a TPE3 model designed for applications such as heating, cooling, and district energy. It is a close-coupled centrifugal pump with a mechanical shaft seal and has frequency-controlled motors along with a differential pressure transmitter.

Specifications

Manufacturer Grundfos
Part Number 98819593
Rated pump speed 3800 rpm
Rated flow 100 US gpm
Rated head 31.17 ft
Maximum head 49.22 ft
Actual impeller diameter 2.91 in
Code for shaft seal BQQE
Curve tolerance ISO9906:2012 3B2
Pump version A
Pump housing Cast iron, EN-GJL-250, ASTM class 35
Impeller Composite, PES+30% GF
Material code A
Range of ambient temperature -4 .. 122 °F
Maximum operating pressure 174.05 psi
Max pressure at stated temperature 174.05 psi / 248 °F
Type of connection GF
Size of connection GF 53
Pressure rating for connection PN 12
Port-to-port length 11 1/16 in
Flange size for motor 56C
Connect code G
Pumped liquid Water
Liquid temperature range -13 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor type 80A
Rated power - P2 1 HP
Main frequency 60 Hz
Rated voltage 1 x 200-240 V
Rated current 4.7-3.9 A
Cos phi - power factor 0.99
Rated speed 360-4000 rpm
IE Efficiency class IE5
Motor efficiency at full load 85.2 %
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F
Built-in motor protection ELEC
Control panel HMI300 - Graphical
Function Module FM300 - Advanced
Frequency converter Built-in
Net weight 55.1 lb
Gross weight 71 lb
Shipping volume 3.67 ft³
Config. file no 98481399
Country of origin HU
Custom tariff no. 8413.70.2022

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
