Description
This pump is identified as TPE50-160/2 A-G-A-BUBE 3x200-240.
Specifications
Manufacturer | Grundfos |
---|---|
Part Number | 99430143 |
Rated pump speed | 3450 rpm |
Rated flow | 66.9 US gpm |
Rated head | 45.93 ft |
Maximum head | 78.74 ft |
Actual impeller diameter | 3.43 in |
Code for shaft seal | BUBE |
Curve tolerance | ISO9906:2012 3B2 |
Pump version | A |
Pump housing | Cast iron, EN-GJL-250, ASTM class 35 |
Impeller | Stainless steel, EN 1.4301, AISI 304 |
Material code | A |
Range of ambient temperature | -4 .. 104 °F |
Maximum operating pressure | 145.04 psi |
Type of connection | US |
Size of connection | 2 inch |
Pressure rating for connection | 125 psi |
Connect code | G |
Pumped liquid | Water |
Liquid temperature range | 5 .. 284 °F |
Selected liquid temperature | 68 °F |
Density | 62.29 lb/ft³ |
Motor type | 80B |
Rated power - P2 | 1.5 HP |
Main frequency | 60 Hz |
Rated voltage | 3 x 200-240 V |
Rated current | 4.1-3.5 A |
Cos phi - power factor | 0.91 |
Rated speed | 360-4000 rpm |
IE efficiency | 89.3% |
IE Efficiency class | IE5 |
Motor efficiency at full load | 89.3 % |
Number of poles | 2 |
Enclosure class (IEC 34-5) | IP55 |
Insulation class (IEC 85) | F |
Built-in motor protection | ELEC |
Control panel | HMI300 - Graphical |
Function Module | FM300 - Advanced |
DOE Pump Energy Index VL | 0.41 |
Gross weight | 105 lb |
Country of origin | US |
Custom tariff no. | 8413.70.2022 |

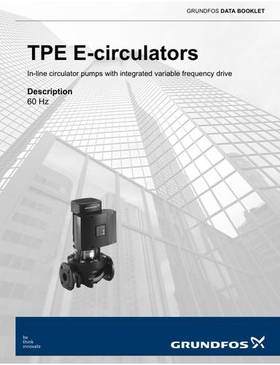

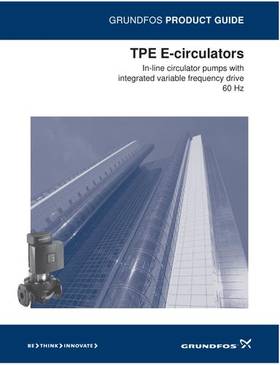

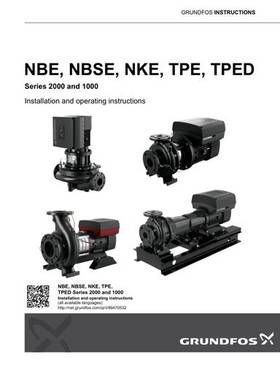

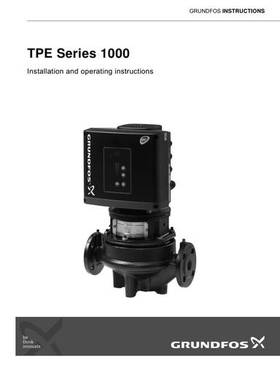

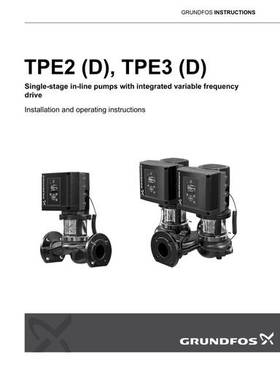

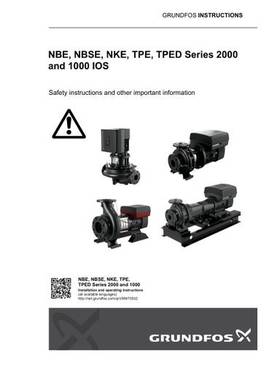

Documents
