Description

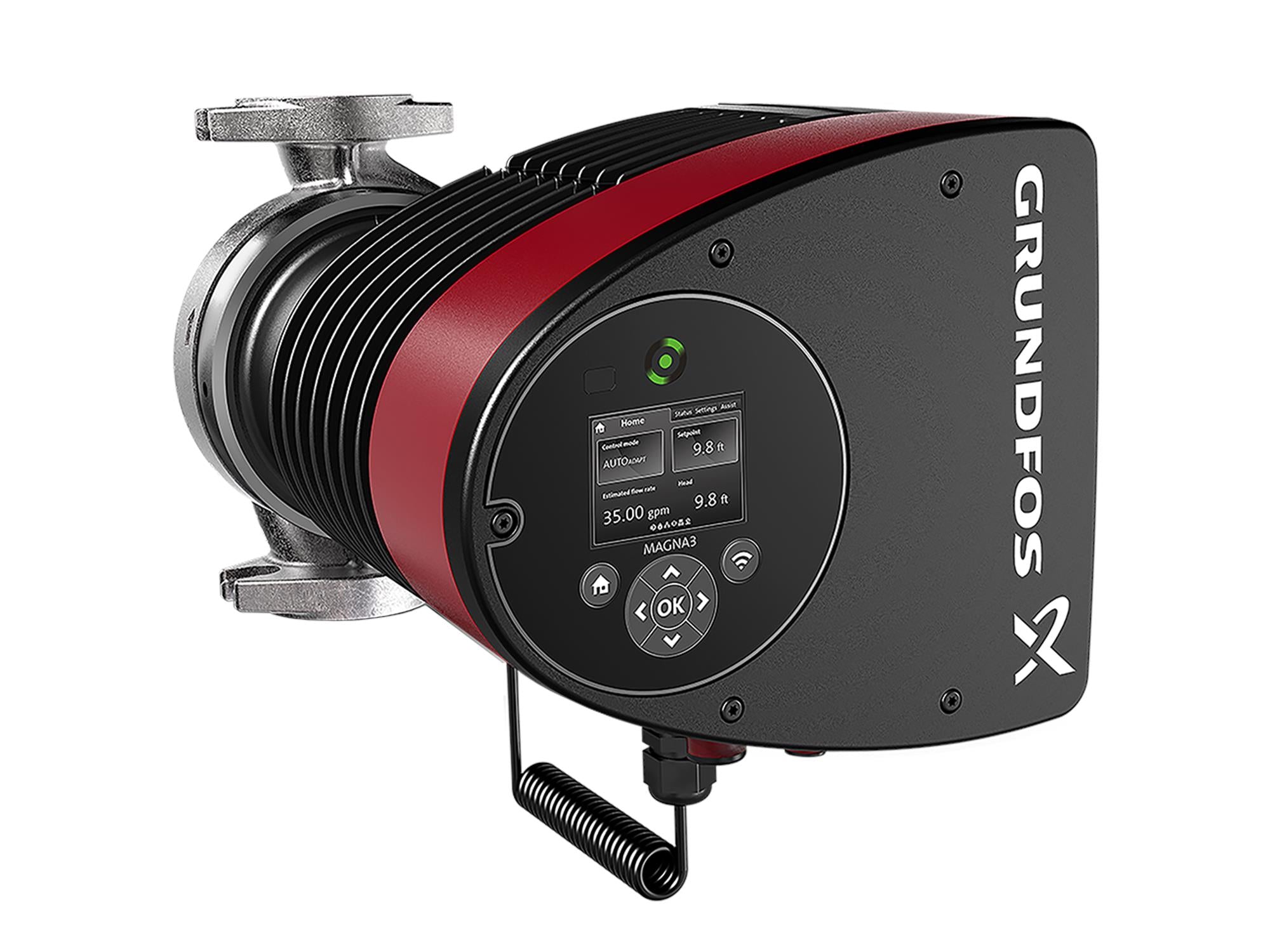

This circulator pump, known as the MAGNA3 40-180 GF N, is designed for commercial hot water recirculation applications. It operates at 208-230 volts and is constructed with stainless steel, making it suitable for environments where media compatibility is required. The pump has integrated Bluetooth connectivity, allowing direct interaction with the GO APP for enhanced control and monitoring capabilities.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 98126838 |
| Rated flow | 62.1 US gpm |
| Rated head | 31.5 ft |
| Maximum head | 59.06 ft |
| TF class | 110 |
| Approvals | cETLus, Proposition 65 |
| Approvals for drinking water | NSF372 |
| Pump housing | Stainless steel, EN 1.4308, ASTM A351-CF8 |
| Impeller | Composite |
| Range of ambient temperature | 32 .. 104 °F |
| Maximum operating pressure | 174.05 psi |
| Flange standard | GF |
| Pipe connection | GF15/26/40/43 |
| Pressure rating for connection | PN 12 |
| Port-to-port length | 8 9/16 in |
| Pumped liquid | Water |
| Liquid temperature range | 14 .. 230 °F |
| Selected liquid temperature | 140 °F |
| Density | 61.35 lb/ft³ |
| Maximum power input - P1 | 600 W |
| P1 min. | 16 W |
| Main frequency | 60 Hz |
| Rated voltage | 1 x 208-230 V |
| Minimum current consumption | 0.18 A |
| Maximum current consumption | 2.65 A |
| Enclosure class (IEC 34-5) | X4D |
| Insulation class (IEC 85) | F |
| Energy (EEI) | 0.19 |
| Net weight | 31.9 lb |
| Gross weight | 35.2 lb |
| Shipping volume | 1.06 ft³ |
| Country of origin | US |
| Custom tariff no. | 8413.70.2005 |
