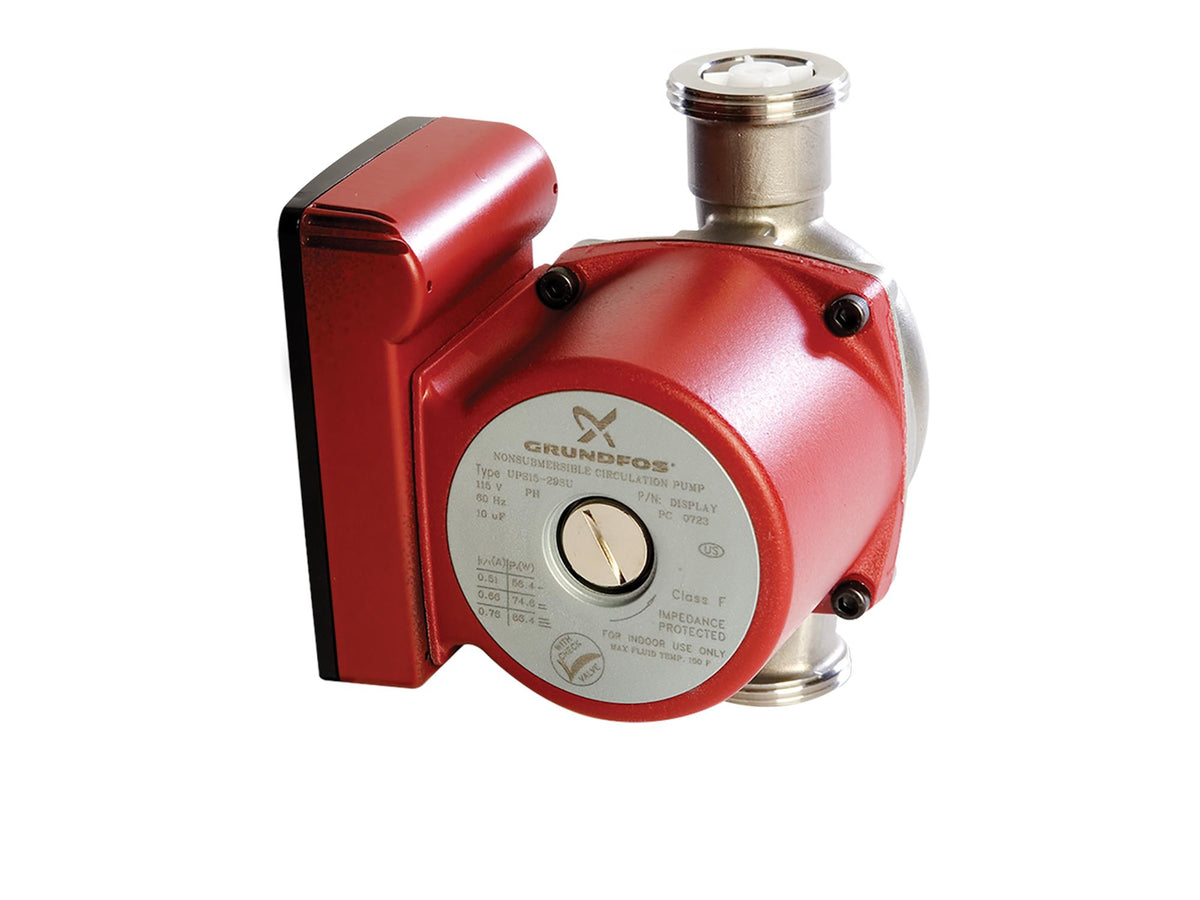

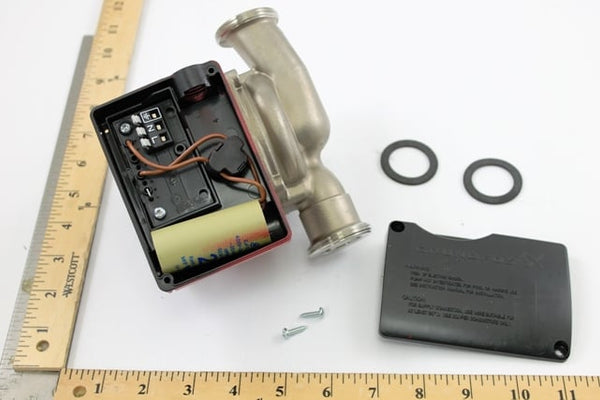

Grundfos 59896786, UP15-55SUC 1/13hp 230V Stainless Steel Pump

SKU: LSIPB1EG2U Part Number: 59896786

Price:
Sale price$604.95 Regular price$660.00

Save 8% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This circulator pump is designed for domestic hot water recirculation and underfloor heating systems. It operates at 230V and 60Hz, with a stainless-steel housing suitable for drinking water applications.

Specifications

Manufacturer Grundfos
Part Number 59896786
Speed Number 1
Rated flow 12.2 US gpm
Max flow 21.6 US gpm
Rated head 7.687 ft
Maximum head 17.06 ft
Approvals UL, CSA
Pump with built-in isolating and non-return valves Yes
Pump housing Stainless steel, EN 1.4308, AISI 304
Impeller Composite, PES+30% GF
Maximum ambient temperature 104 °F
Ambient max at 176°F liquid 176 °F
Maximum operating pressure 145.04 psi
Type of connection 1 1/4" NPSM, S.S. Union
Pipe connection 1 1/4" NPSM
Pressure rating for connection PN 10
Port-to-port length 5 15/16 in
Pumped liquid Water
Liquid temperature range 35.6 .. 203 °F
Selected liquid temperature 140 °F
Density 61.35 lb/ft³
Max. power input 97 W
Main frequency 60 Hz
Rated voltage 1 x 230 V
Current in speed 3 0.42 A
Capacitor size - run 2 µF
Number of poles 2
Insulation class (IEC 85) F
Built-in motor protection CONTACT
Thermal protec Impedance protected
Terminal box position 9H
Net weight 4.86 lb
Gross weight 5.33 lb
Country of origin US
Custom tariff no. 8413.70.2005
