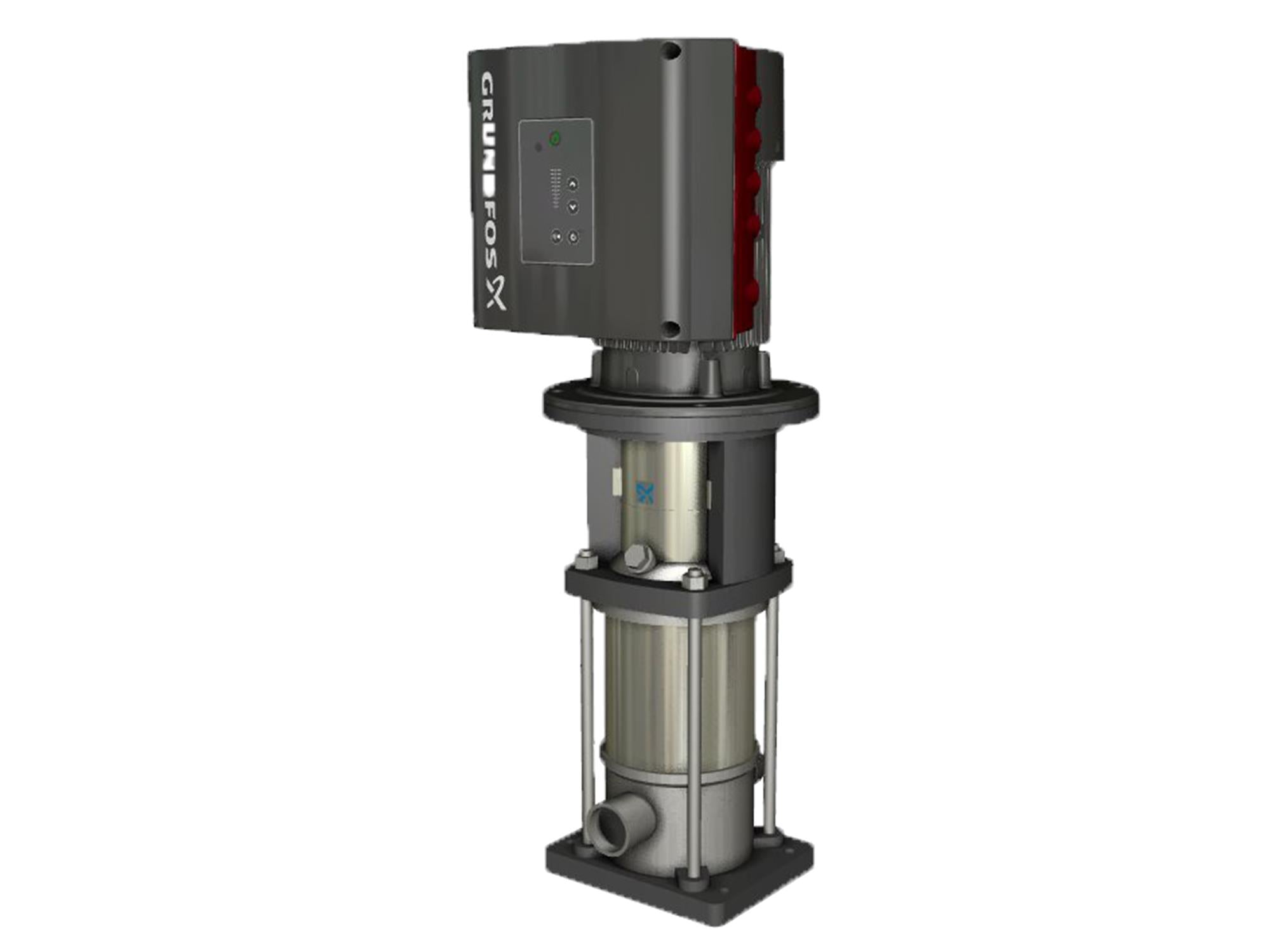

Grundfos 99611262, CRNE 3-7 N-P-A-E-HQQE Vertical Multistage Pump

SKU: LSIQAQAAQA Part Number: 99611262

Price:
Sale price$5,507.95 Regular price$6,154.00

Save 10% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump features a MGE E-motor with a built-in frequency converter for precise control and efficiency. With a cast iron head and stainless steel wetted parts (EN 1.4301), it operates at 15 HP, 480V in three-phase, ideal for water treatment, fertigation, chemigation, and irrigation applications.

Specifications

Manufacturer Grundfos
Part Number 99611262
Rated pump speed 3466 rpm
Rated flow 15.4 US gpm
Rated head 164 ft
Maximum head 219.8 ft
Stages 7
Impellers 7
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQE
Approvals CE,CURUS
Approvals for drinking water NSF/ANSI 61
Curve tolerance ISO9906:2012 3B
Pump version N
Base Stainless steel, EN 1.4408, AISI 316
Impeller Stainless steel, EN 1.4401, AISI 316
Material code A
Code for rubber E
Maximum ambient temperature 104 °F
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 250 °F, 363 psi / -4 °F
Type of connection PJE
Size of inlet connection DN 32
Size of outlet connection DN 32
Pressure rating for connection PN 50
Flange size for motor 56C
Connect code P
Pumped liquid Water
Liquid temperature range -4 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Motor type 80B
Rated power - P2 1.5 HP
Power (P2) required by pump 1.5 HP
Main frequency 60 Hz
Rated voltage 3 x 200-240 V
Service factor 1.15
Rated current 4.1-3.5 A
Cos phi - power factor 0.91
Rated speed 360-4000 rpm
IE Efficiency class IE5
Motor efficiency at full load 89.3 %
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F
Built-in motor protection ELEC
Control panel Graphical
Function Module FM300 - Advanced
Frequency converter Built-in
Pressure sensor Y
Net weight 57 lb
Gross weight 68 lb
Shipping volume 4.94 ft³
Config. file no 99304156
