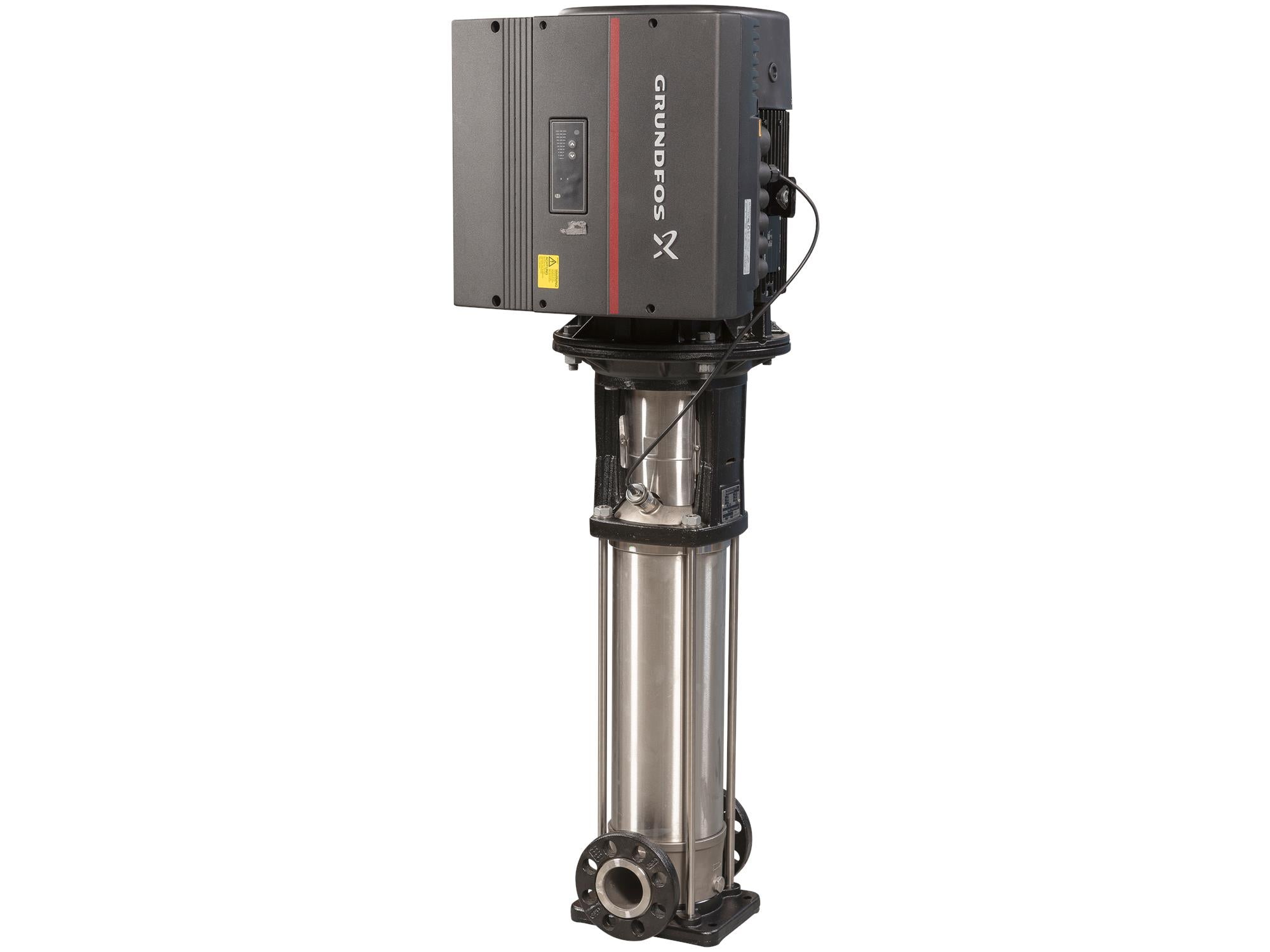

Grundfos 98181593, CRNE15-10 N-FGJ-A-E-HQQE Vertical Multistage Pump

Roll over image to zoom in Click on image to zoom

Grundfos 98181593, CRNE15-10 N-FGJ-A-E-HQQE Vertical Multistage Pump

Name: Grundfos 98181593, CRNE15-10 N-FGJ-A-E-HQQE Vertical Multistage Pump
Brand: Grundfos
SKU: LSIQHVFG6Q
Price: 13474.95 USD
Availability: OutOfStock

SKU: LSIQHVFG6Q Part Number: 98181593

Price:

$13,474.95 $21,054.00

Save 36% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This vertical multistage centrifugal pump features a MGE E-motor with a built-in frequency converter for precise control and efficiency. With a cast iron head and stainless steel wetted parts (EN 1.4301), it operates at 15 HP, 480V in three-phase, ideal for water treatment, fertigation, chemigation, and irrigation applications.

Manufacturer	Grundfos
Part Number	98181593
Rated pump speed	3497 rpm
Rated flow	90.3 US gpm
Rated head	529.9 ft
Maximum head	666 ft
Actual impeller diameter	4.13 in
Stages	10
Impellers	10
Number of reduced-diameter impellers	0
Low NPSH	N
Pump orientation	Vertical
Shaft seal arrangement	Single
Code for shaft seal	HQQE
Approvals	CURUS
Approvals for drinking water	NSF/ANSI 61
Curve tolerance	ISO9906:2012 3B
Pump version	N
Base	Stainless steel, EN 1.4408, AISI 316
Impeller	Stainless steel, EN 1.4401, AISI 316
Material code	A
Code for rubber	E
Bearing	SIC
Maximum ambient temperature	104 °F
Maximum operating pressure	362.59 psi
Max pressure at stated temperature	363 psi / 250 °F, 363 psi / -4 °F
Type of connection	DIN / ANSI / JIS
Size of inlet connection	DN 50
Size of outlet connection	DN 50
Pressure rating for connection	PN 25
Flange rating inlet	300 lb
Flange size for motor	254TC
Connect code	FGJ
Pumped liquid	Water
Liquid temperature range	-4 .. 248 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor standard	NEMA
Motor type	160AB
Rated power - P2	20 HP
Power (P2) required by pump	20 HP
Over/undersize motor	Standard motor size
Main frequency	60 Hz
Rated voltage	3 x 460-480 V
Service factor	1.15
Rated current	26 A
Cos phi - power factor	0.89
Rated speed	480-3540 rpm
IE Efficiency class	NEMA Premium / IE3 60Hz
Motor efficiency at full load	91.0 %
Number of poles	2
Enclosure class (IEC 34-5)	IP55
Insulation class (IEC 85)	F
Built-in motor protection	YES
Function Module	ADVANCED I/O
Frequency converter	Built-in
Pressure sensor	Y
Terminal box position	6
DOE Pump Energy Index VL	0.47
Net weight	401 lb
Gross weight	516 lb
Shipping volume	28.4 ft³
Config. file no	95139702

CRN MAGdrive

CRE, CRIE, CRNE (Data booklet)

CRE, CRIE, CRNE, CRKE, SPKE, MTRE, CME (I & O instructions)

CRE, CRIE, CRNE, SPKE, CRKE, MTRE (I & O instructions)

GRUNDFOS CRE PLUS (Leaflet)

GRUNDFOS CR/CRE, Vertical Multistage Variable Speed System (Leaflet)

CRE, CRIE, CRNE, CRKE, SPKE, MTRE E-pumps with MLE model K permanent-magnet motor
