Name: Grundfos 97855094, Jet Pump JP20S-CI CN for Domestic Applications
Brand: Grundfos
SKU: LSIQRJ2K5K
Price: 1305.95 USD
Availability: OutOfStock

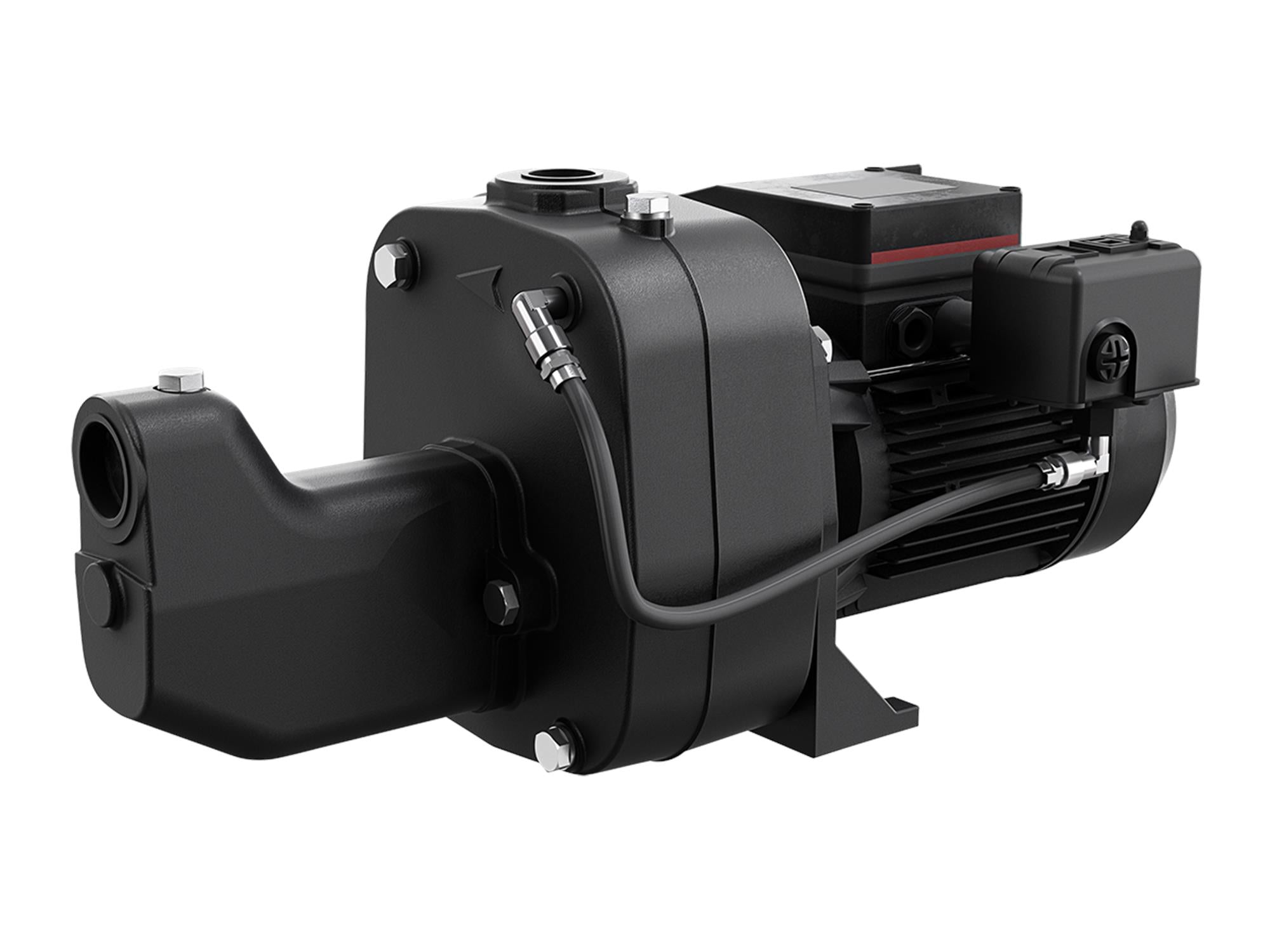

Grundfos 97855094, Jet Pump JP20S-CI CN for Domestic Applications

Roll over image to zoom in Click on image to zoom

This jet pump is a self-priming single-stage centrifugal pump designed for various garden and domestic applications, including water supply and transfer duties. It is suitable for domestic groundwater intake, water pressure boosting, and rainwater harvesting.

Manufacturer	Grundfos
Part Number	97855094
Maximum head	203.4 ft
Code for shaft seal	CVBP
Approvals	CSA
Curve tolerance	ISO9906:2012 3B
Pump version	A
Pump housing	Cast iron, DIN 1691 GG20, 30 B
Impeller	Composite
Material code	A
Range of ambient temperature	14 .. 104 °F
Maximum operating pressure	PN 6 bar
Type of inlet connection	NPT
Type of outlet connection	NPT
Size of suction port	1 1/4 inch
Size of outlet port	1 inch
Pumped liquid	Water
Liquid temperature range	32 .. 104 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Power input P1	2400 W
Main frequency	60 Hz
Rated voltage	1 x 220-230 V
Rated current	11 A
Capacitor size - run	40 µF/450 V
Enclosure class (IEC 34-5)	IP44
Insulation class (IEC 85)	F
Length of cable	4.92 ft
Power plug	NONE
Net weight	79.4 lb
Gross weight	79.4 lb
Country of origin	CN
Custom tariff no.	8413.70.2022

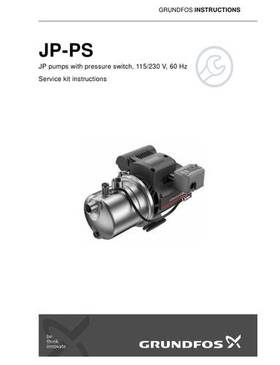

JP - PS, JP pumps with pressure switch, 115/230 V (Service kit instructions)

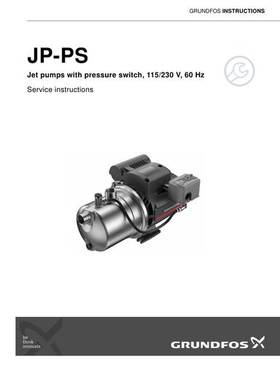

JP PS, Jet pumps with pressure switch, 115/230 V (Service instructions)

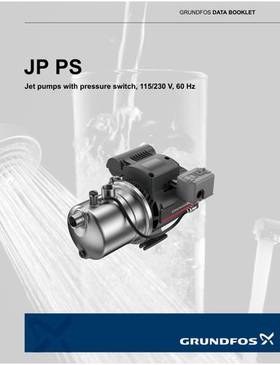

JP PS, Jet pumps with pressure switch, 115/230 V (Data booklet)

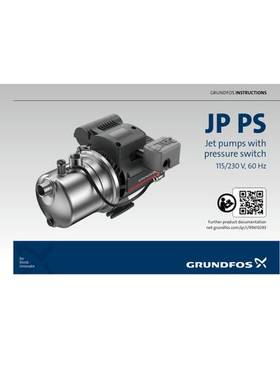

JP PS, Jet pumps with pressure switch, 115/230 V (Quick Guide)

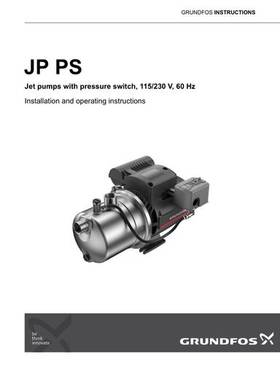

JP PS, Jet pumps with pressure switch, 115/230 V (I & O instructions)

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.

From the Atoms & Bits Blog

Grundfos Water Pumps - Comprehensive Guide

Published: Jan 08, 2026 By: Lucas Gasparotto

Discover Grundfos water pump models, learn about their benefits, technical details, main applications, controls, arrangement tips, and let Liberty Supply help you choose the ideal Grundfos pump today.

Save 4%

Grundfos

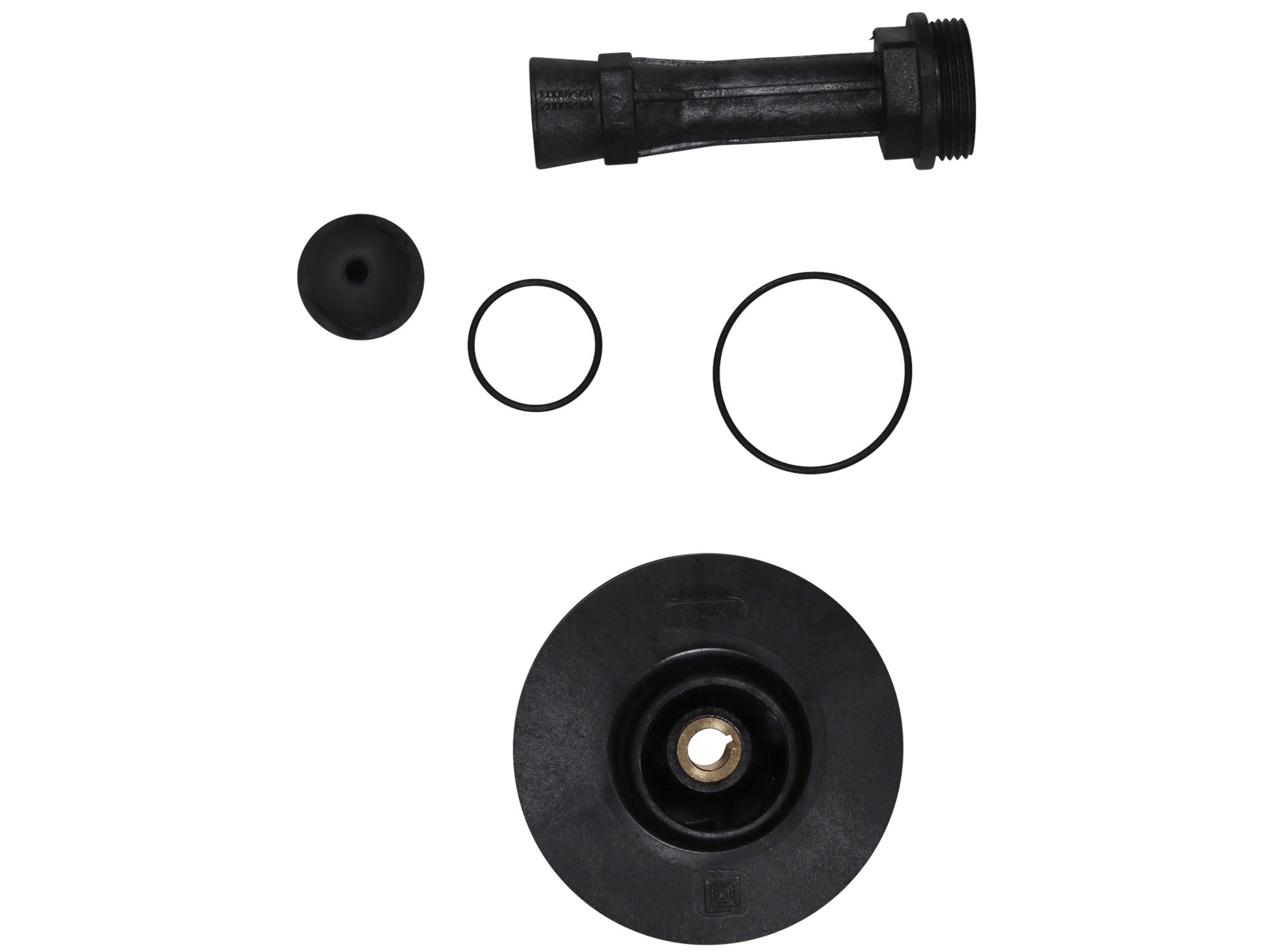

Grundfos 98288846, Hydraulic Kit JP20S-CI
