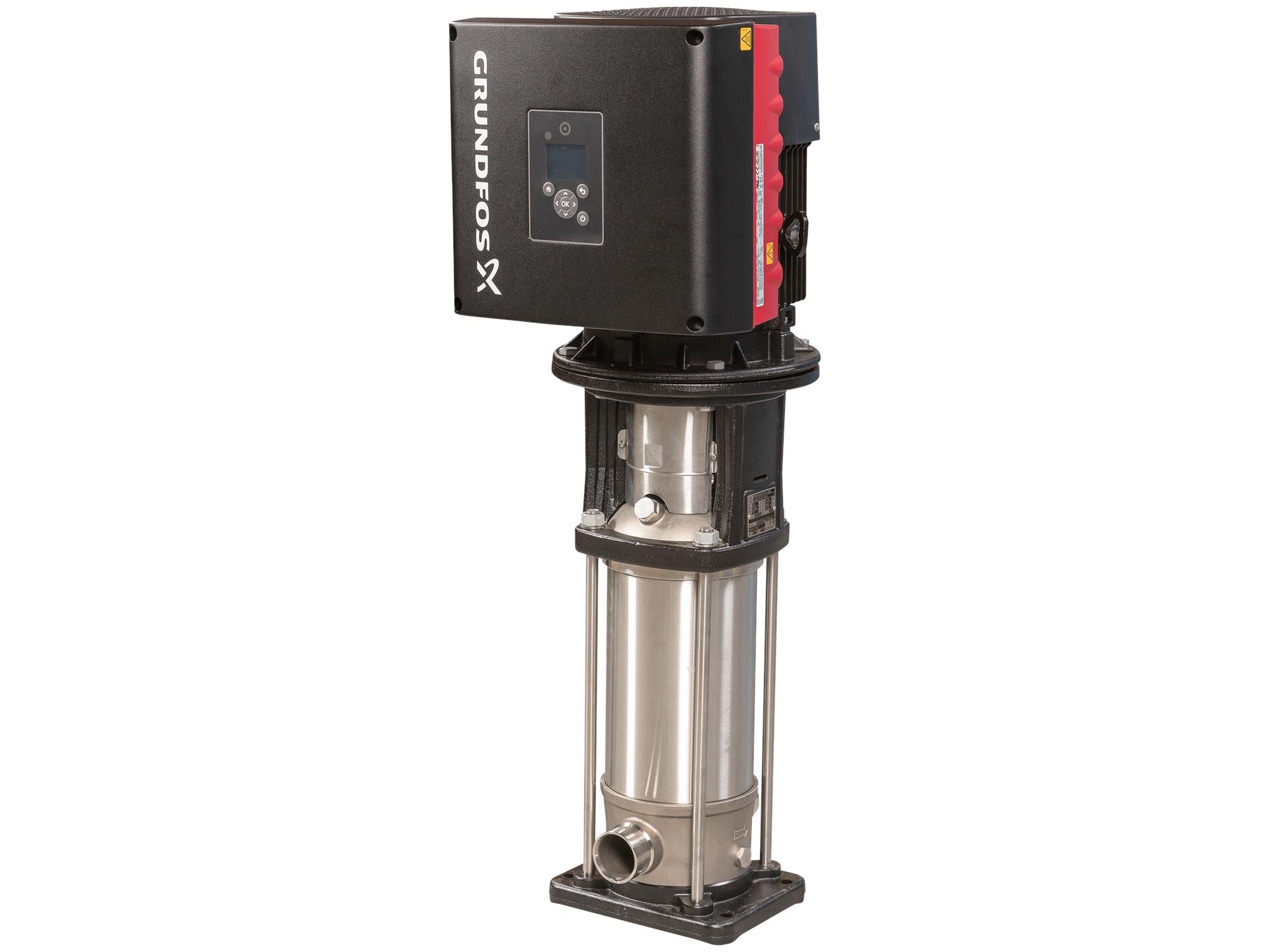

Grundfos 98183564, Vertical Multistage Centrifugal Pump 3x460 60 Hz

Roll over image to zoom in Click on image to zoom

Grundfos 98183564, Vertical Multistage Centrifugal Pump 3x460 60 Hz

Name: Grundfos 98183564, Vertical Multistage Centrifugal Pump 3x460 60 Hz
Brand: Grundfos
SKU: LSIQU3EZLW
Price: 13315.95 USD
Availability: OutOfStock

SKU: LSIQU3EZLW Part Number: 98183564

Price:

$13,315.95 $20,805.00

Save 36% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This vertical multistage centrifugal pump with an integrated frequency converter has components in contact with liquid made from high-grade stainless steel (EN 1.4401). It is suitable for applications such as water treatment fertigation, chemigation and dosing, controls and digital groundwater management, and drip, micro spray, and soaker hose irrigation.

Manufacturer	Grundfos
Part Number	98183564
Rated pump speed	3497 rpm
Rated flow	111 US gpm
Rated head	442.9 ft
Maximum head	557.8 ft
Actual impeller diameter	4.13 in
Stages	8
Impellers	8
Number of reduced-diameter impellers	0
Low NPSH	N
Pump orientation	Vertical
Shaft seal arrangement	Single
Code for shaft seal	HQQE
Approvals	CURUS
Approvals for drinking water	NSF/ANSI 61
Curve tolerance	ISO9906:2012 3B
Pump version	A
Base	Stainless steel, EN 1.4408, AISI 316
Impeller	Stainless steel, EN 1.4401, AISI 316
Material code	A
Code for rubber	E
Bearing	SIC
Maximum ambient temperature	104 °F
Maximum operating pressure	362.59 psi
Max pressure at stated temperature	363 psi / 250 °F, 363 psi / -4 °F
Type of connection	PJE
Size of inlet connection	DN 50
Size of outlet connection	DN 50
Pressure rating for connection	PN 50
Flange size for motor	254TC
Connect code	P
Pumped liquid	Water
Liquid temperature range	-4 .. 248 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor standard	NEMA
Motor type	160AB
Rated power - P2	20 HP
Power (P2) required by pump	20 HP
Over/undersize motor	Standard motor size
Main frequency	60 Hz
Rated voltage	3 x 460-480 V
Service factor	1.15
Rated current	26 A
Cos phi - power factor	0.89
Rated speed	480-3540 rpm
IE Efficiency class	NEMA Premium / IE3 60Hz
Motor efficiency at full load	91.0 %
Number of poles	2
Enclosure class (IEC 34-5)	IP55
Insulation class (IEC 85)	F
Built-in motor protection	YES
Function Module	ADVANCED I/O
Frequency converter	Built-in
Pressure sensor	N
Terminal box position	6
DOE Pump Energy Index VL	0.46
Net weight	384 lb
Gross weight	496 lb
Shipping volume	28.4 ft³
Config. file no	95139700
