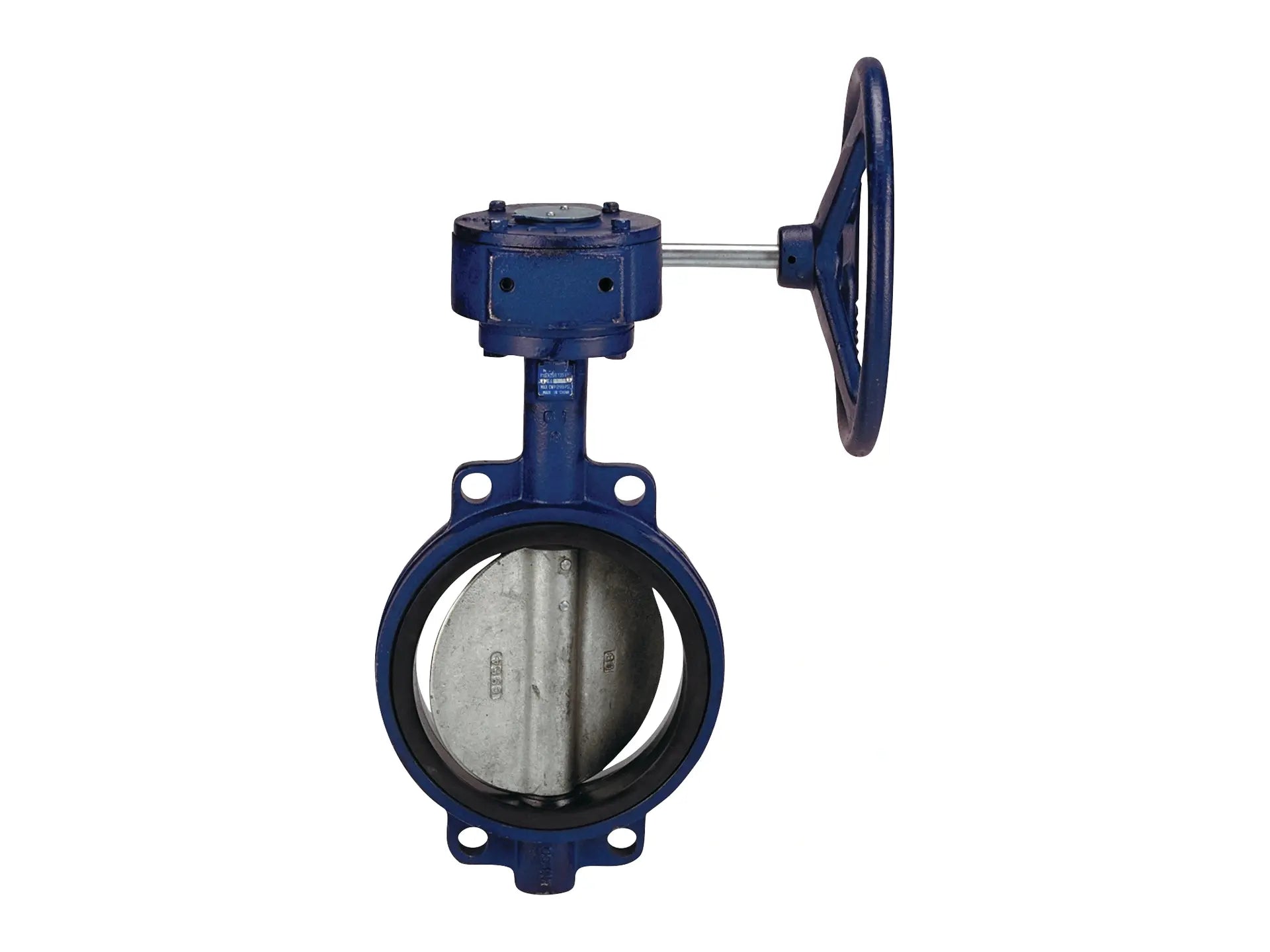

NIBCO N200146 2-1/2" Wafer Cast Iron Butterfly Valve NLJ160E

SKU: LSIR7EBFDS Part Number: NLJ160E Model: N-200-146-LH

Price:
Sale price$346.95 Regular price$550.10

Save 37% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

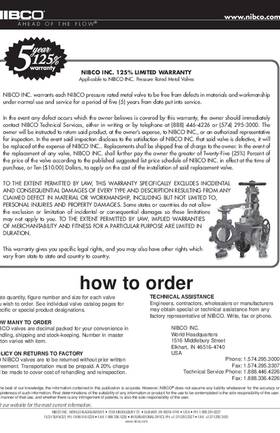

This NIBCO international wafer type butterfly valve provides in-line, bubble-tight shutoff at 200 psi, recommended for quick installation and removal from piping. The valve performs well in commercial applications including HVAC and hot/cold potable water. This NIBCO cast iron butterfly valve provides ease of operation with quarter-turn (90 degrees) open to close. The Buna-N cartridge seat liner with ductile iron, electro nickel plated disc has good abrasion resistance properties and compatibility with solvents, oil, water and hydraulic fluid for compressed air. An extended neck allows for insulation up to 2 inches. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO international cast iron butterfly valves for versatile and economical applications in commercial systems. These valves are backed by the NIBCO 5-year125% limited warranty.

Features

  • Valve pressure rating 200 psi
  • Maximum 180°F service
  • Buna-N cartridge seat liner
  • Nickel electroplated ductile iron disc
  • Stainless steel stem with bronze bushings
  • Extended neck
  • Operating mechanism: Bare stem, lever-lock operating system, manual gear operator
  • Not recommended for steam service
  • Designed to meet MSS SP-67
  • MSS SP-25 (markings)
  • Designed to meet API 609

Specifications

Manufacturer NIBCO
Part Number NLJ160E
Model N-200-146-LH
Series N200146
Type of Valve Butterfly
Nominal Pipe Size 2-1/2"
End Connection Type W -- Wafer
Material Cast Iron
Butterfly Operator Lever-Lock Handle
Turns Operations Quarter-Turn
Seat Seal Material Buna-N Nitrile Rubber
Pressure Rating (psi) 200 psi rated pressure
UPC Code 039923773357
Length 12.86"
Width 11.77"
Height 4.63"
Country of Origin CN
Potable Water Code LL Compliant NSF/ANSI 372
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
