Grundfos 97664604, Horizontal Multistage End-Suction Pump CR45-1-1 H-G60-A-E-HQQE 3x230/460

Roll over image to zoom in Click on image to zoom

Grundfos 97664604, Horizontal Multistage End-Suction Pump CR45-1-1 H-G60-A-E-HQQE 3x230/460

Name: Grundfos 97664604, Horizontal Multistage End-Suction Pump CR45-1-1 H-G60-A-E-HQQE 3x230/460
Brand: Grundfos
SKU: LSIRU0YI0U
Price: 5766.95 USD
Availability: OutOfStock

SKU: LSIRU0YI0U Part Number: 97664604

Price:

$5,766.95

Save 0 Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This horizontal multistage end-suction pump operates on a 3x230/460 voltage at 60 Hz.

Manufacturer	Grundfos
Part Number	97664604
Rated pump speed	3467 rpm
Rated flow	231 US gpm
Rated head	70.87 ft
Maximum head	94.49 ft
Stages	1
Impellers	1
Number of reduced-diameter impellers	1
Low NPSH	N
Pump orientation	Horizontal
End suction pump (Yes/No)	Y
Shaft seal arrangement	Single
Code for shaft seal	HQQE
Approvals on nameplate	CURUS,NSF/ANSI 61
Curve tolerance	ISO9906:2012 3B
Pump version	H
Cooling	TEFC
Base	Cast iron, EN 1563 EN-GJS-500-7, ASTM A536 80-55-06
Impeller	Stainless steel, EN 1.4301, AISI 304
Material code	A
Code for rubber	E
Bearing	SIC
Support bearing	Graflon
Maximum ambient temperature	140 °F
Maximum operating pressure	232.06 psi
Max pressure at stated temperature	232 psi / 250 °F, 232 psi / -22 °F
Size of suction port	3 inch
Size of outlet port	2 inch
Pressure rating for connection	PN 16
Flange rating inlet	150 lb
Flange size for motor	213TC
Connect code	G60
Pumped liquid	Water
Liquid temperature range	-22 .. 248 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Motor standard	NEMA
Motor type	132DA
Rated power - P2	7.5 HP
Power (P2) required by pump	7.5 HP
Main frequency	60 Hz
Rated voltage	3 x 208-230YY/460Y V
Service factor	1.15
Rated current	19,5-18,1/9,09 A
Starting current	1020-1480 %
Cos phi - power factor	0.89-0.86
Rated speed	3490-3520 rpm
IE Efficiency class	NEMA Premium / IE3 60Hz
Motor efficiency at full load	89.5 %
Motor efficiency at 3/4 load	89.6-89.1 %
Motor efficiency at 1/2 load	88.1-86.7 %
Number of poles	2
Enclosure class (IEC 34-5)	55 Dust/Jetting
Insulation class (IEC 85)	F
Built-in motor protection	PTC
Frequency converter	None
Pressure sensor	N
Net weight	270 lb
Gross weight	431 lb
Shipping volume	28.9 ft³
Sales region	USA

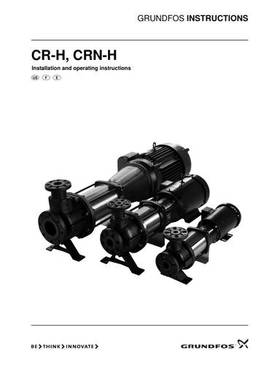

CR-H, CRN-H (Installation and operating instructions)

CR1-H (Industrial Service Manual)

CR3-H (Industrial Service Manual)

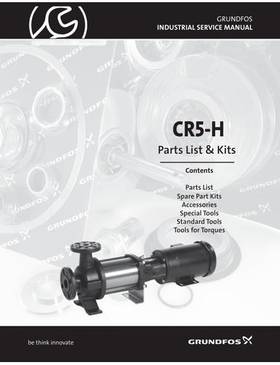

CR5-H (Industrial Service Manual)

CRN1s-H (Industrial Service Manual)

CRN3-H (Industrial Service Manual)

CRN5-H (Industrial Service Manual)

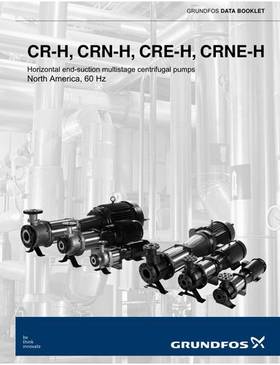

CR-H, CRN-H, CRE-H, CRNE-H (Data booklet)

OPTIMIZED INDUSTRIAL SOLUTIONS (Product brochure)
