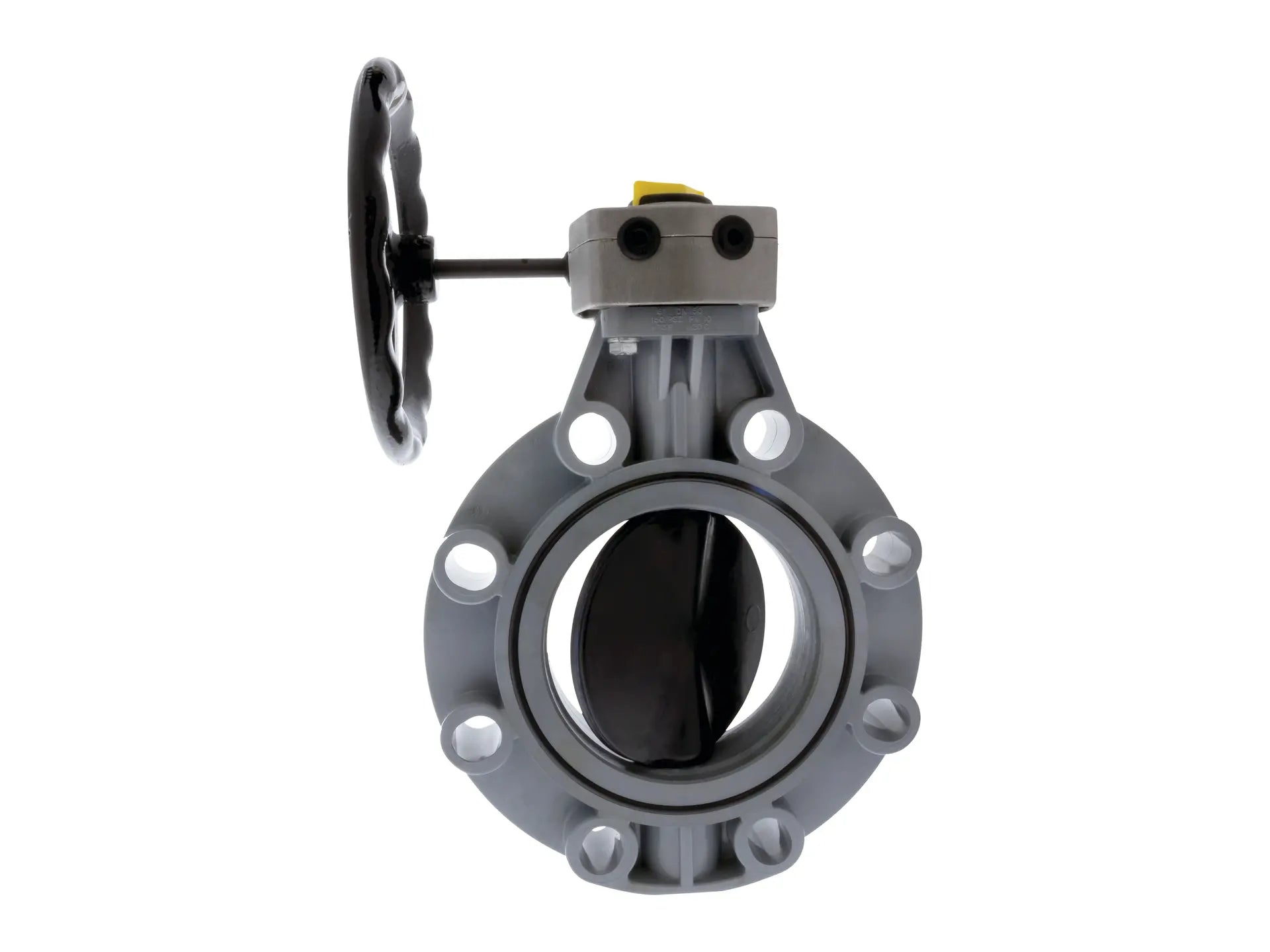

NIBCO W-51-BG-E-5 4" CPVC Sch 80 Chemtrol Butterfly Valve MB216AH

SKU: LSIS66VSKK Part Number: MB216AH Model: W-51-BG-E-5

Price:
Sale price$1,105.95 Regular price$1,546.00

Save 28% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

This Chemtrol Model C butterfly valve is a wafer style valve with low flow restriction. The valve's injection molded CPVC construction with EPDM seat is ideal for use in general water and chemical applications. The valve's ductile iron disc is encapsulated with EPDM material to create a tight seal. With the built-in O-ring seals no gaskets are required between mating flanges. The valve is easy to install but cannot be used as an isolation valve. Please refer to Chemtrol technical data sheets, valve selection guides and catalogs for engineering and installation information. Corzan CPVC Schedule 80 exhibits excellent corrosion resistance properties and has the highest long-term hydrostatic strength of any other major thermoplastic material used for piping systems. Chemtrol Corzan CPVC valves are lightweight, easy to install, maintenance-free, and will not rust, scale, pit or corrode. Choose Chemtrol valves for the most reliable, versatile and economical valve option in commercial and industrial applications. Chemtrol valves are backed by a 1-year limited warranty. Because Chemtrol is a NIBCO brand the flow-control valves are unsurpassed in quality, performance and longevity.

Features

  • Valve pressure rating 150 psi at 73°F water non-shock
  • Maximum service temperature 180°F
  • Wafer style
  • EPDM O-rings and disc
  • Flanged end connections compatible with ANSI B16.5 Class 150
  • Bare stem, lever handle or gear operator
  • Do not use or test with compressed air or other gases
  • NSF/ANSI Standard 14
  • NSF/ANSI Standard 61, Annex G

Specifications

Manufacturer NIBCO
Part Number MB216AH
Model W-51-BG-E-5
Series W51BG-E-0, W51BG-E-3, W51BG-E-5
Type of Valve Butterfly
Nominal Pipe Size 4"
Material Chlorinated Polyvinyl Chloride
Butterfly Operator Gear Operator
Seat Seal Material EPDM Rubber
UPC Code 039923407030
Length 14.32"
Width 12.13"
Height 6.89"
Country of Origin US
Potable Water Code LL Compliant NSF/ANSI 372
Notes and Disclaimer Corzan® CPVC is a registered trademark of Lubrizol Advanced Materials.

Documents

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
