This Taco Shell & Tube Heat Exchanger, model E8212L, is a reliable and efficient heat transfer solution. With a nominal shell diameter of 8 inches, it offers ample capacity for liquid-to-liquid heat exchange. The heat exchanger features 2 tube passes, ensuring optimal heat transfer efficiency. The tube bundle length measures 72 inches, providing an extensive surface area for effective heat exchange. The tubes are made of copper with a size of 3/4 OD x .035 (20 Ga) wall SB75, guaranteeing durability and excellent thermal conductivity. The connection type is threaded connections, allowing for secure and leak-free installation. The tube plate material is steel, ensuring robustness and resistance to corrosion. Additionally, the separators are made of steel, further enhancing the longevity of the heat exchanger. With a working pressure rating of 150 psi, this Taco Shell & Tube Heat Exchanger is suitable for various industrial applications where efficient liquid-to-liquid heat transfer is required.
Taco Shell & Tube Heat Exchangers Overview
Taco Shell & Tube Heat Exchangers are equipment used in HVAC systems and various industrial applications for the purpose of transferring heat between two fluids. These exchangers are composed of a large outer shell and an inner tube bundle. The arrangement allows one fluid to flow through the tubes while a second fluid circulates outside the tubes but within the shell. As they pass each other, heat exchange occurs, with the fluid inside the tubes either gaining or losing heat from the fluid in the shell. Taco Shell & Tube Heat Exchangers are noted for their durable construction, effectiveness in heat transfer, and ease of maintenance, including the straightforward process of replacing the tube bundle.

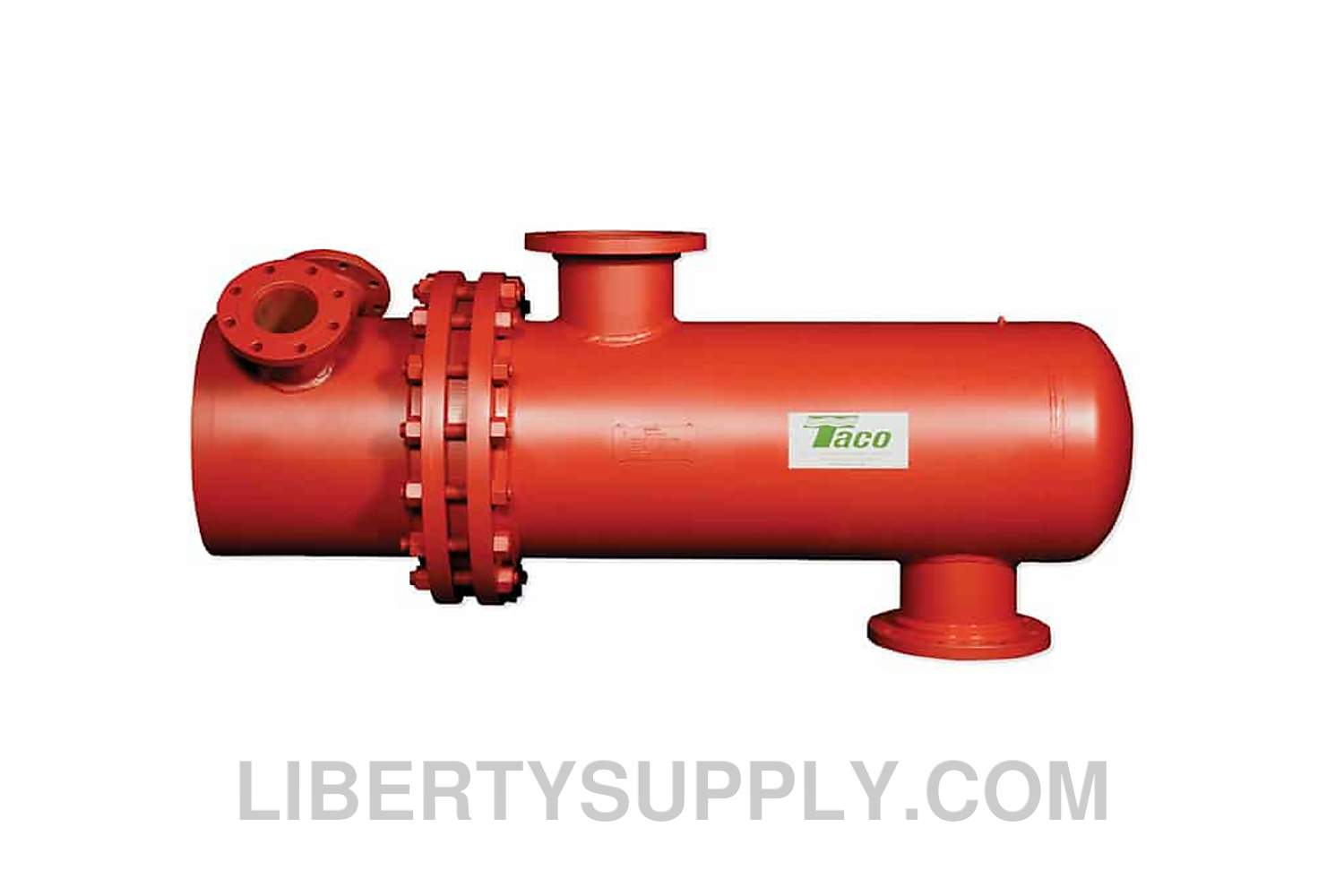

Note: product image is generic
