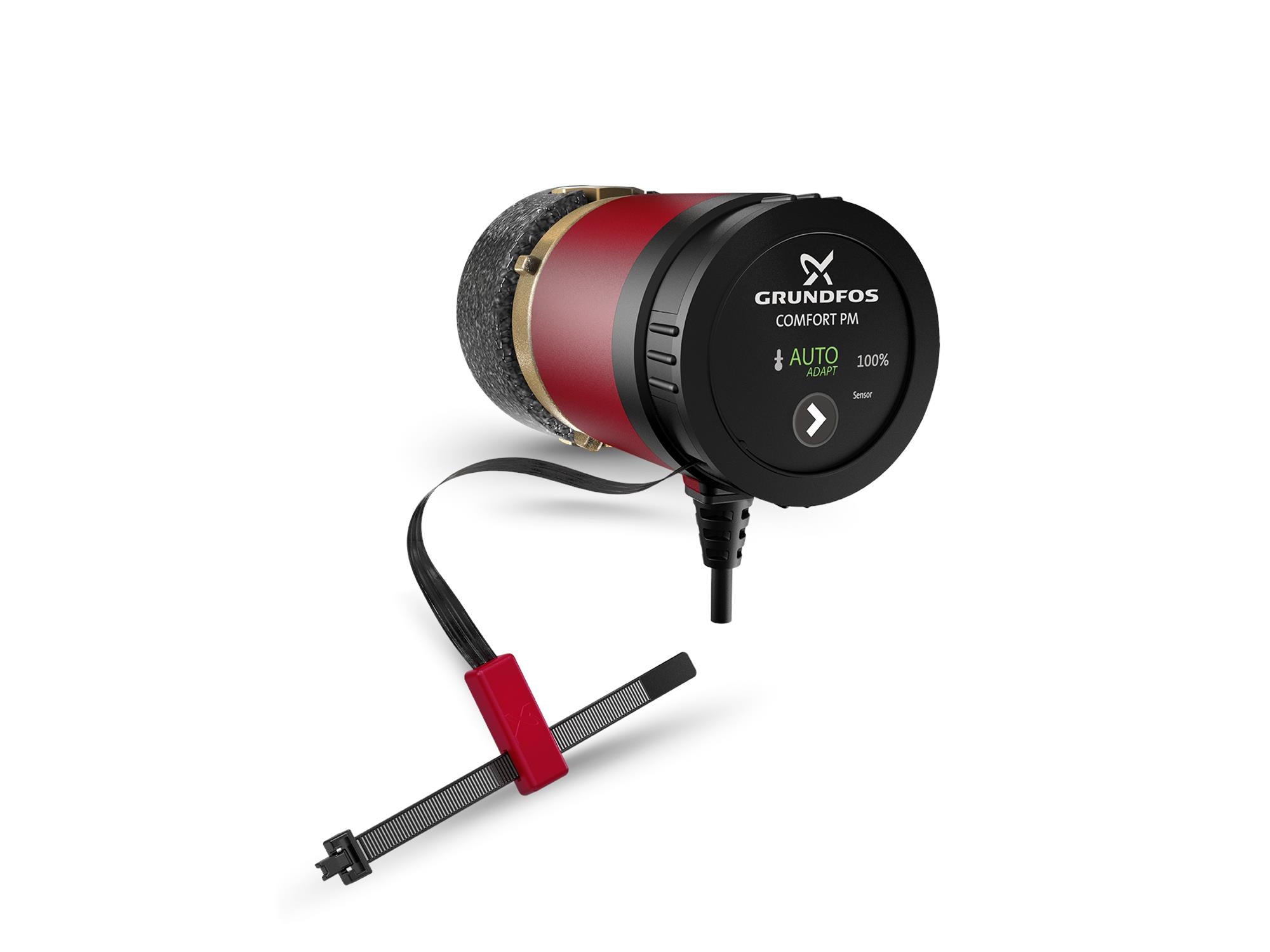

Grundfos 98420222, Comfort Circulator Pump for Hot Water

Roll over image to zoom in Click on image to zoom

This circulator pump is designed for efficient hot-water recirculation in domestic buildings with a dedicated return line. It has a built-in temperature sensor and control modes to limit heat losses, making it suitable for domestic hot water recirculation applications.

Manufacturer	Grundfos
Part Number	98420222
Head max	5.25 ft
TF class	95
Approvals	UL,CSA
Pump housing	Ecobrass
Impeller	Stainless steel, EPDM, PPO, PTFE, Graphit
Type of connection	USA Sweat
Pipe connection	1/2" Sweat
Pressure rating for connection	PN 10
Port-to-port length	3 1/8 in
Pumped liquid	Water
Minimum liquid temperature	203 °F
Selected liquid temperature	140 °F
Density	61.35 lb/ft³
Max. power input	6 W
Main frequency	60 Hz
Rated voltage	1 x 115-230 V
Current in speed 3	0.1 A
Enclosure class (IEC 34-5)	IP44
Insulation class (IEC 85)	F
Built-in motor protection	NONE
Thermal protec	IMPE
Cable type	Connecting cord with plug
Type of cable plug	NEMA 1-15P
Net weight	2.6 lb
Gross weight	3.79 lb
Shipping volume	0.12 ft³

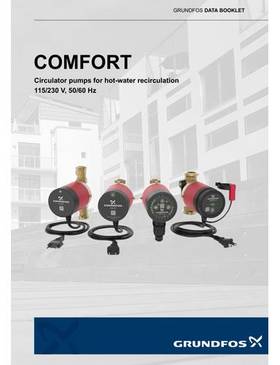

Grundfos COMFORT (Data booklet)

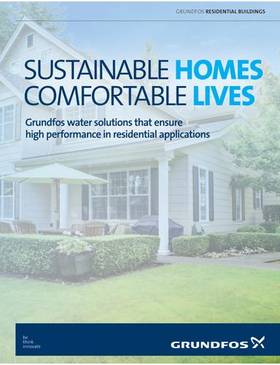

DBS, GRUNDFOS RESIDENTIAL BUILDINGS (Product brochure)

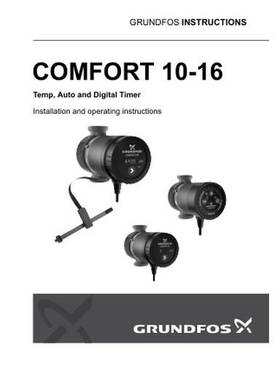

COMFORT 10-16, Temp, Auto and Digital Timer (I & O instructions)

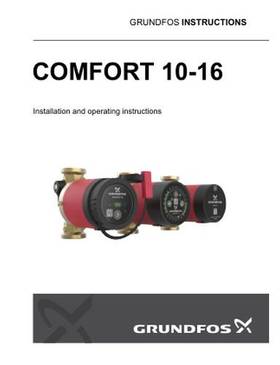

COMFORT 10-16 (Installation and operating instructions)
