Please note this item is assembled to order and additional lead-times may apply.

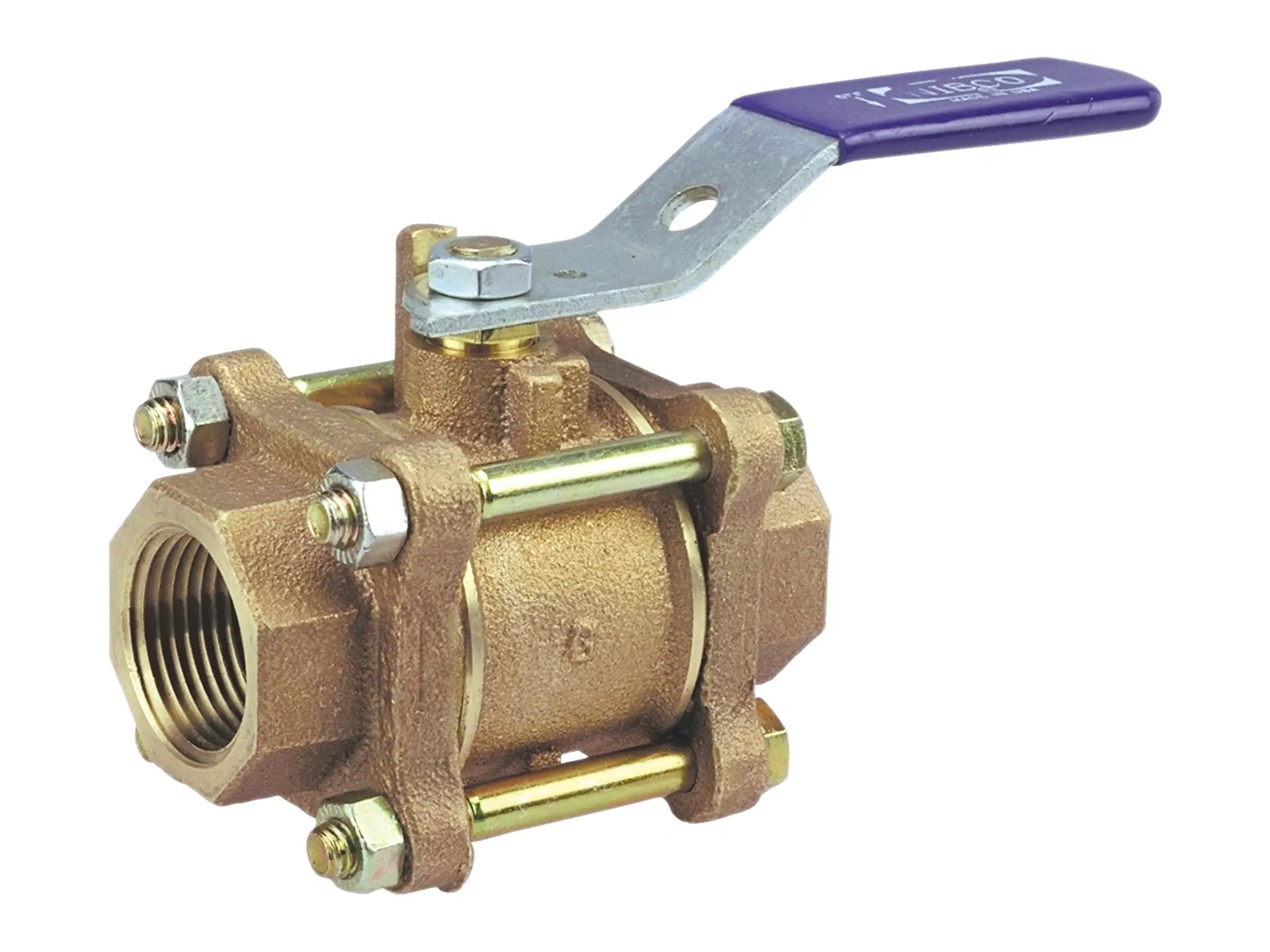

This NIBCO bronze ball valve provides bubble-tight shutoff at 600 psi. The three-piece valve is ideal for hot/cold water, numerous gas applications, compressed air, vacuum service, condenser, and chilled water. It may be used for isolation and throttling (half open to full open only). The three-piece valve is repairable in-line. This NIBCO bronze ball valve provides easy operation with a quarter-turn (90°) open to close. The PTFE seat ring and brass hard chrome plated ball exhibit high chemical resistance properties and is recommended for many high-pressure applications. The three-piece valve features threaded ends for easy installation. Options include a NIB-SEAL insulated handle that eliminates condensate. Please refer to the NIBCO technical data sheet, valve selection guide, and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile, and economical valve option in commercial, mechanical, and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
Features
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
- Maximum temperature rating 400°F
- Conventional port
- Chrome plated brass ball, silicon bronze stem
- Blowout-proof stem
- Standard lever handle, optional NIB-SEAL®
- Threaded end connections
- Dezincification resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-110
