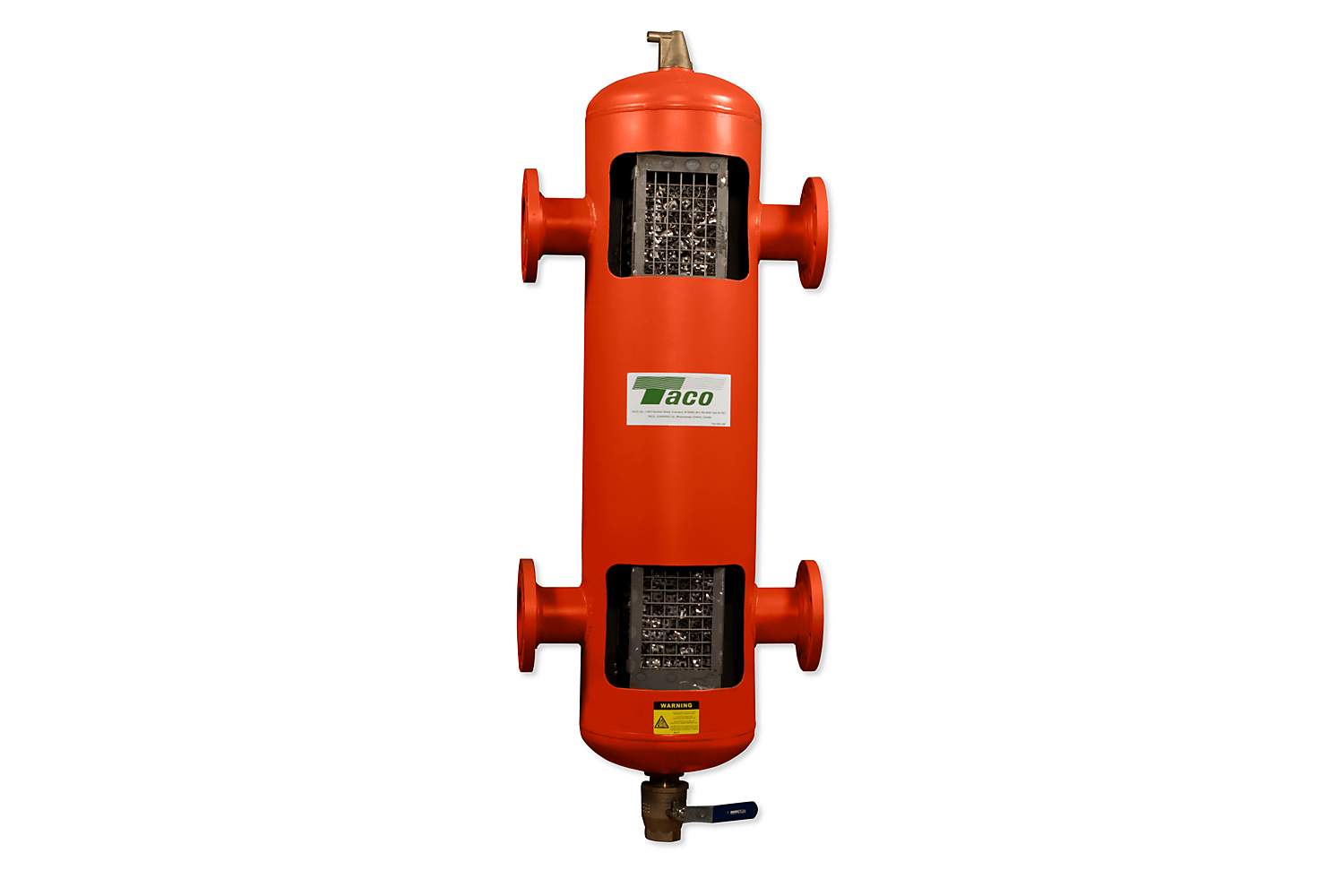

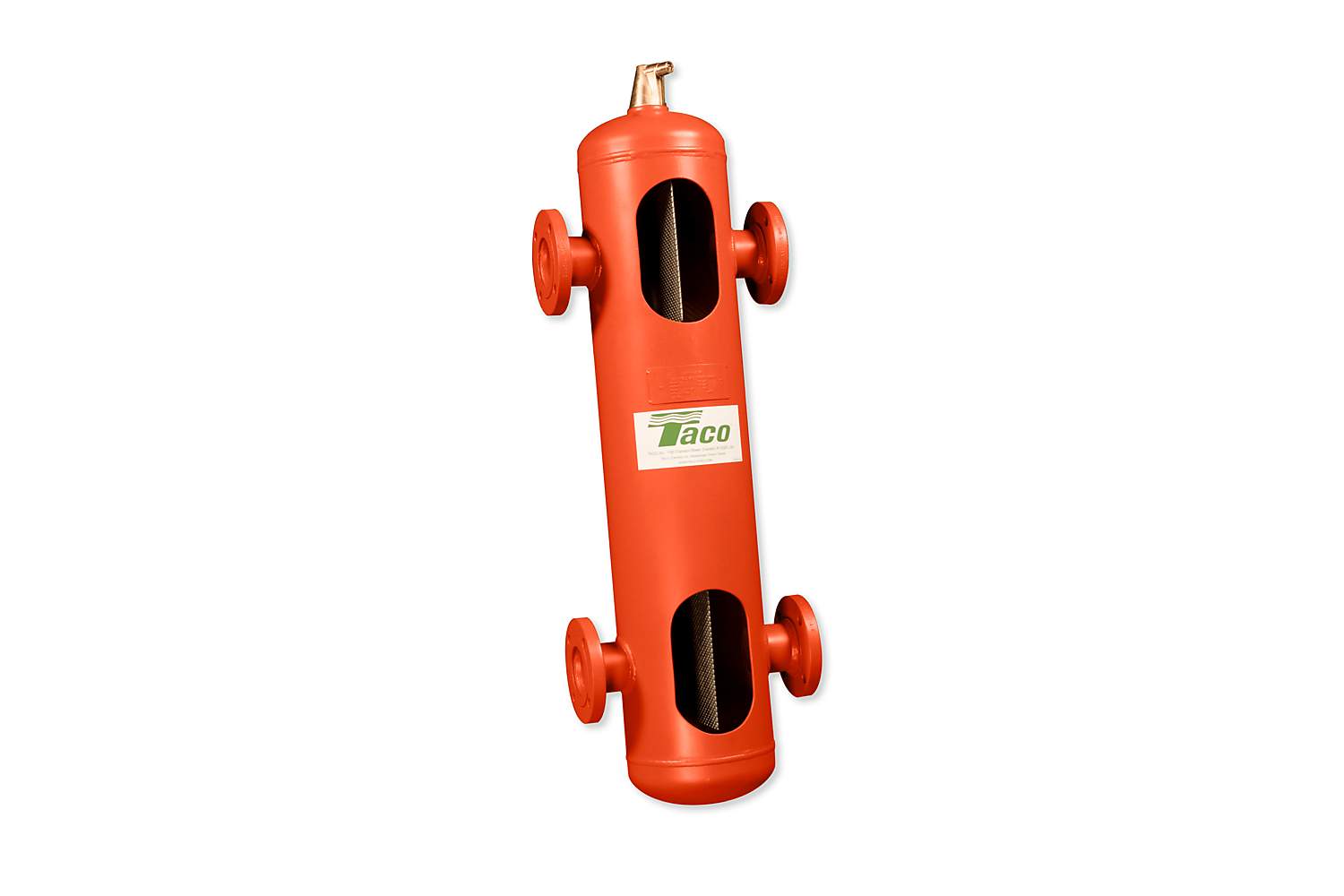

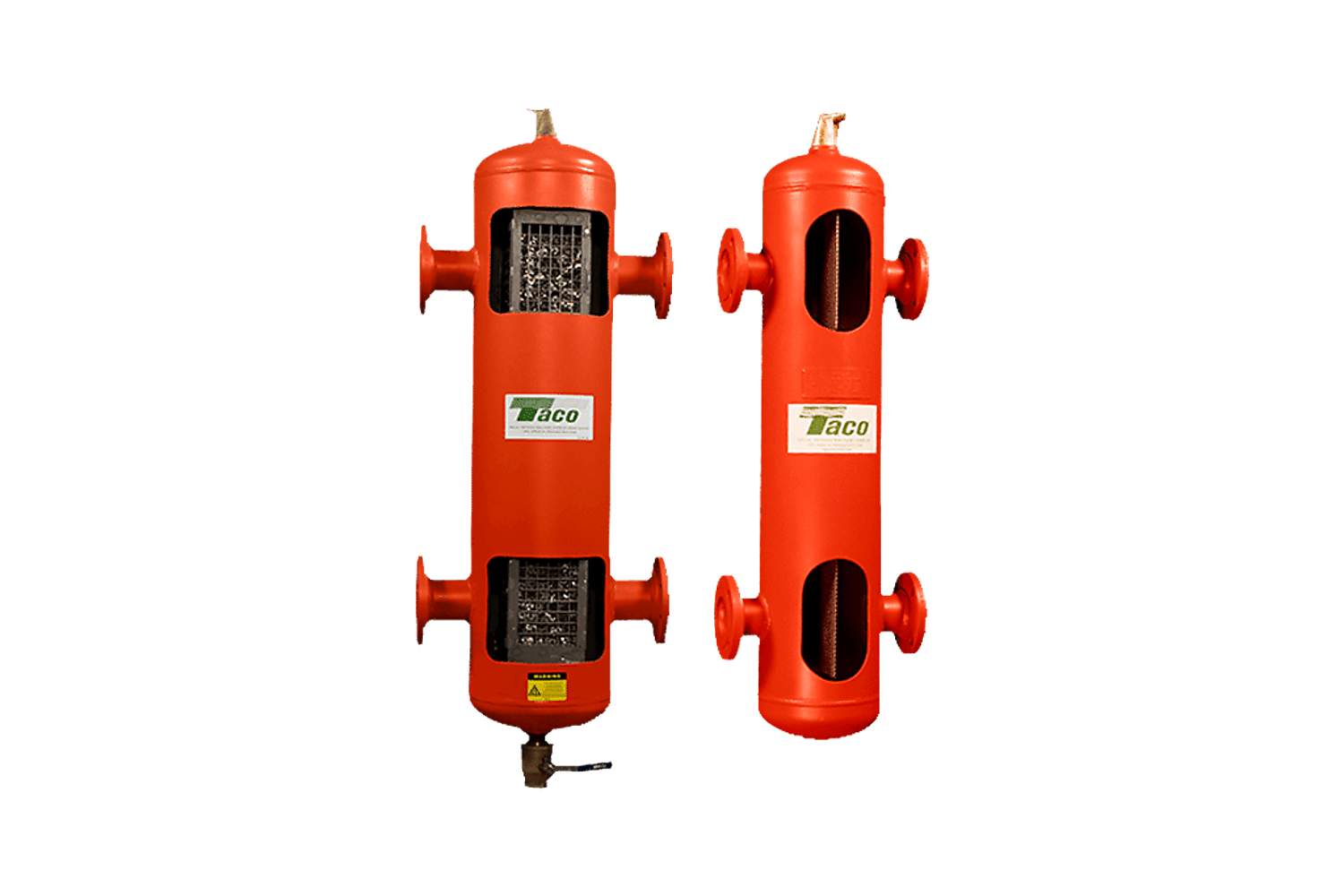

This Taco 5900 Series FlexBalance Air and Dirt Separator, Model 5902PG, is designed to remove air and dirt from hydronic systems. It features a grooved connection with a maximum pressure rating of 125 psi and a capacity of up to 50 gallons per minute. The separator works by using the principle of micro-bubble coalescence to remove air and dirt particles from the system fluid. As the fluid enters the separator, it is forced to change direction, causing any air or dirt to separate from the fluid and collect at the bottom of the unit. The separated air is then vented out through an automatic air vent while the separated dirt can be easily removed through a blow-down valve. This Taco 5900 Series FlexBalance Air and Dirt Separator is an essential component for maintaining optimal performance in any hydronic heating or cooling system.
5900 Series Overview
The Taco patented 5900 Series FlexBalance Air Separator acts as a hydraulic bridge between the primary and secondary heating and cooling applications to improve system energy efficiency and allow smaller pumps for each system circuit. The 5900 Series FlexBalance Air Separator helps prevent hydraulic coupling of pumps or pumps in series by primary/secondary configurations and prevent unanticipated ghost-flows caused by oversized pumps in primary and secondary circuits. They are available with optional 304SS PALL ring basket configurations to enhance the air and dirt separation capabilities of the 5900. 5900 Series FlexBalance Air Separator Tanks are designed, constructed, and tested to ASME Section VIII, Div. 1 requirements.
Features & Benefits
- Designed, constructed, and tested to ASME Section VIII, Div. 1 requirements
- Available with stainless steel PALL ring configuration for enhanced air and dirt separation capability
- Furnished with air vent and full port blowdown valve
- Higher maximum pressures available
- All fabrication done in house
- Computerized selections to ensure fast and easy design
- National Board Registration
- CRN registration (optional)
