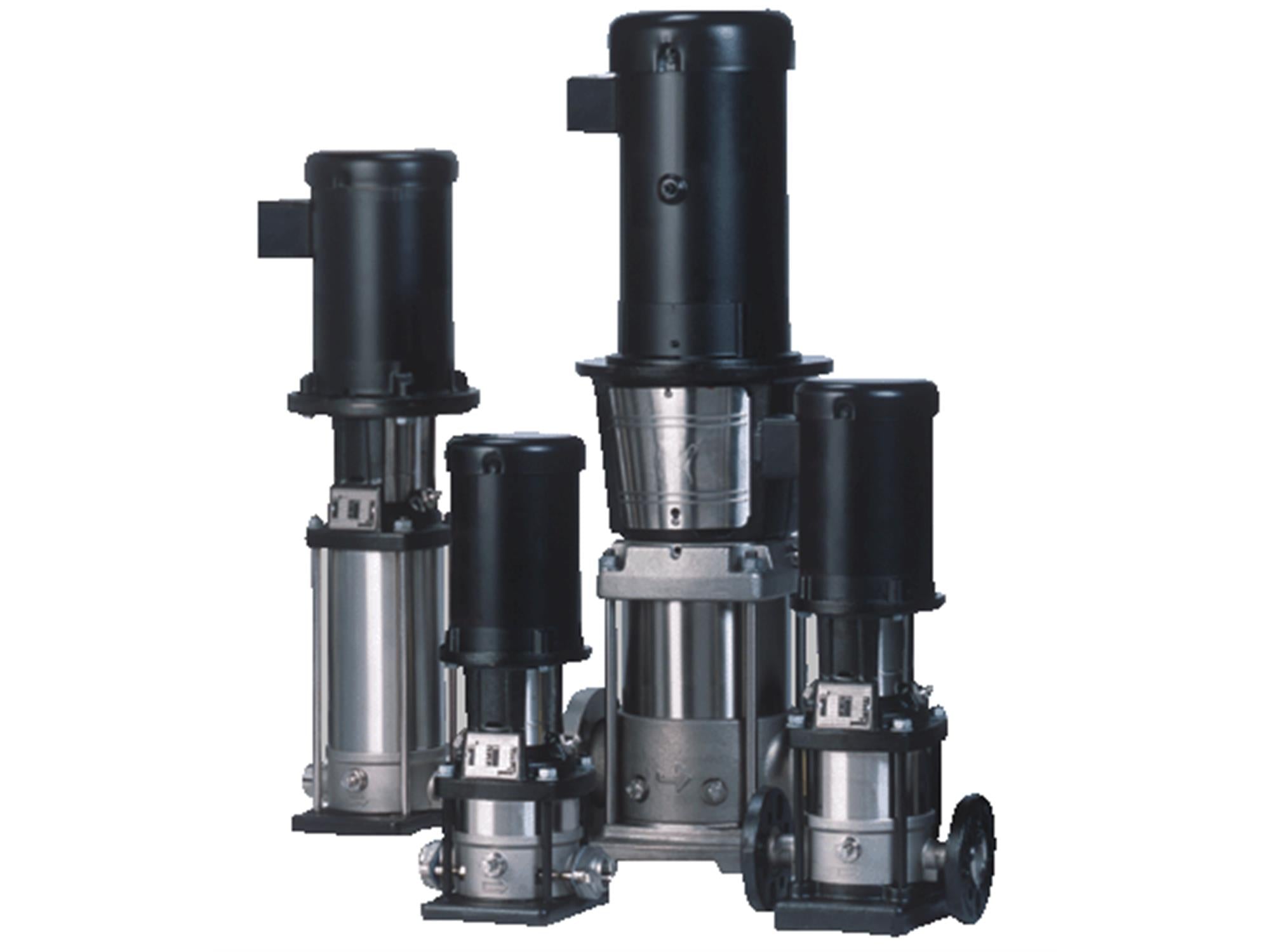

Grundfos 96416071, CRN64-1 Vertical Multistage Centrifugal Pump

Roll over image to zoom in Click on image to zoom

Grundfos 96416071, CRN64-1 Vertical Multistage Centrifugal Pump

Name: Grundfos 96416071, CRN64-1 Vertical Multistage Centrifugal Pump
Brand: Grundfos
SKU: LSIUTNGB7Q
Price: 7690.95 USD
Availability: OutOfStock

SKU: LSIUTNGB7Q Part Number: 96416071

Price:

$7,690.95 $12,017.00

Save 36% Call 844-448-0880 for large volume pricing

Stock:

Obsolete

Quantity:

This vertical multistage centrifugal pump has suction and discharge ports on the same level. It is constructed with high-grade stainless steel (EN 1.4401) for durability in applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, and drip irrigation systems.

Manufacturer	Grundfos
Part Number	96416071
Rated pump speed	3450 rpm
Rated flow	339 US gpm
Rated head	94.82 ft
Stages	1
Impellers	1
Low NPSH	N
Code for shaft seal	KUBV
Pump version	U
Base	Stainless steel, EN 1.4408, AISI 316
Impeller	Stainless steel, EN 1.4401, AISI 316
Material code	GI
Code for rubber	V
Max pressure at stated temperature	232 psi / 194 °F
Type of connection	ANSI
Size of suction port	4" inch
Size of outlet port	4" inch
Pressure rating for connection	150 Lb.
Flange size for motor	254TC
Connect code	G
Pumped liquid	Water
Liquid temperature range	32 .. 194 °F
Selected liquid temperature	68 °F
Density	62.29 lb/ft³
Power (P2) required by pump	15 HP
Gross weight	191 lb
Shipping volume	8.48 ft³
Sales region	namreg
