Description

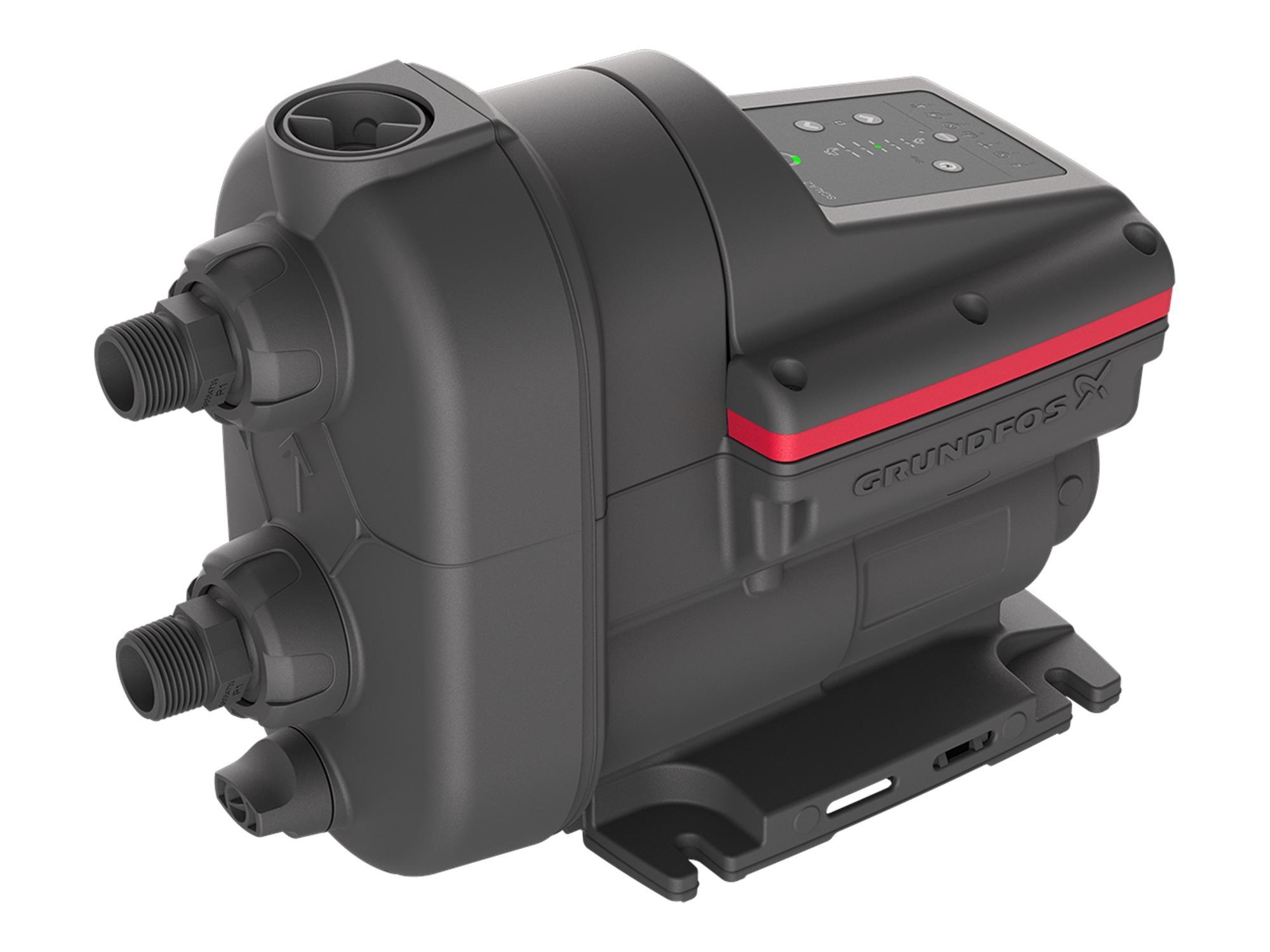

This water booster pump is an integrated, self-priming, compact solution designed to maintain perfect pressure inside the home. It operates quietly and is easy to install, ensuring consistent pressure in all taps at all times. Suitable for domestic ground water intake, water pressure boosting, and rainwater harvesting applications.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 98562818 |
| Rated flow | 13.2 US gpm |
| Maximum flow | 20.3 US gpm |
| Rated head | 88.59 ft |
| Maximum head | 147.6 ft |
| Primary shaft seal | Carbon/Ceramic |
| Approvals | cULus |
| Approvals for drinking water | cULus NSF372,cULus DW NSF61 |
| Curve tolerance | ISO9906:2012 3B |
| Max. pump speed | 5200 rpm |
| Pump housing | Composite, NORYL FE1630PW PPE+PS-GS30 |
| Impeller | Composite, NORYL FE1630PW PPE+PS-GS30 |
| Material code | A |
| Range of ambient temperature | 32 .. 113 °F |
| Maximum operating pressure | 145.04 psi |
| Maximum permissible inlet pressure | 87 psi |
| Pipe connection standard | ANSI B1.20.1 |
| Type of inlet connection | NPT(M) |
| Type of outlet connection | NPT(M) |
| Size of suction port | 1 inch |
| Size of outlet port | 1 inch |
| Pressure rating for connection | PN 10 |
| Pumped liquid | Water |
| Liquid temperature range | 32 .. 113 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Power input P1 | 550 W |
| Rated power - P2 | 0.603 HP |
| Main frequency | 60 Hz |
| Rated voltage | 1 x 115 V |
| Minimum current consumption | 0.2 A |
| Maximum current consumption | 4.9 A |
| Enclosure type | 3 |
| Insulation class (IEC 85) | F |
| Length of power cable | 6.56 ft |
| Power plug | US plug 115V |
| Type of connector | Type B (NEMA 5-15) |
| Net weight | 21.3 lb |
| Gross weight | 27.1 lb |
| Shipping volume | 1.52 ft³ |
| Storage temperature range | -40 .. 158 °F |
