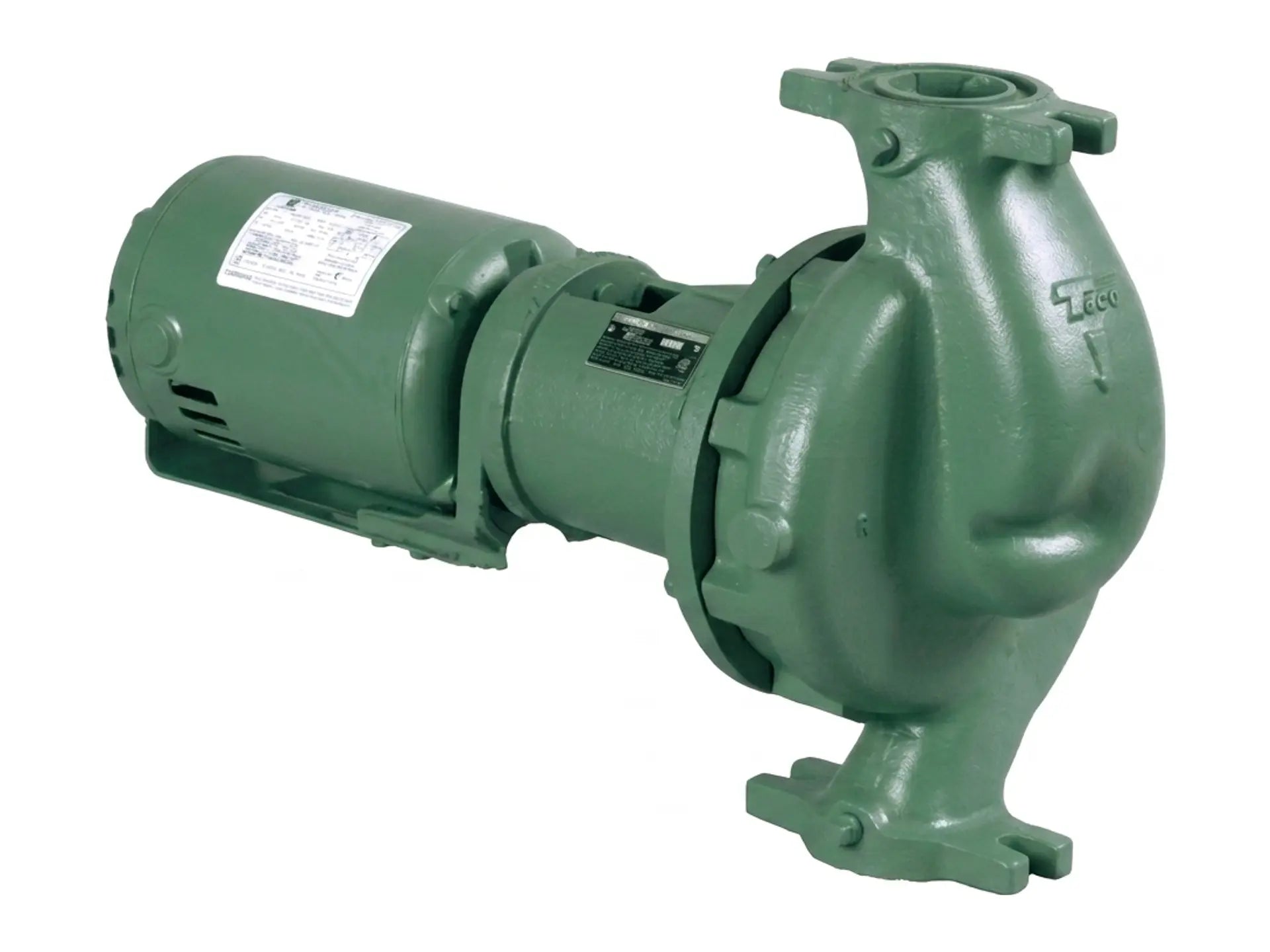

This in-line pump has a cast iron casing and bracket paired with a 7.9" stainless steel impeller and shaft. It includes 2" suction and discharge ports for system integration. The internal assembly includes a replaceable bearing cartridge containing permanently sealed, grease-lubricated ball bearings, which isolate the bearings from system fluid temperatures up to 250°F. A mechanical seal assembly with a ceramic seat, carbon rotor, and EPT elastomers seals the shaft. This standardized cartridge construction simplifies maintenance requirements.
The unit includes a 2 HP, 1750 RPM premium efficient TEFC motor powered by 230/460V, 3PH supply. Maintenance-free operation is supported by permanently sealed, grease-lubricated motor ball bearings. Utilizing a rear pull-out design, the assembly permits complete removal of the motor and rotating components for servicing without disturbing the connected piping layout.
