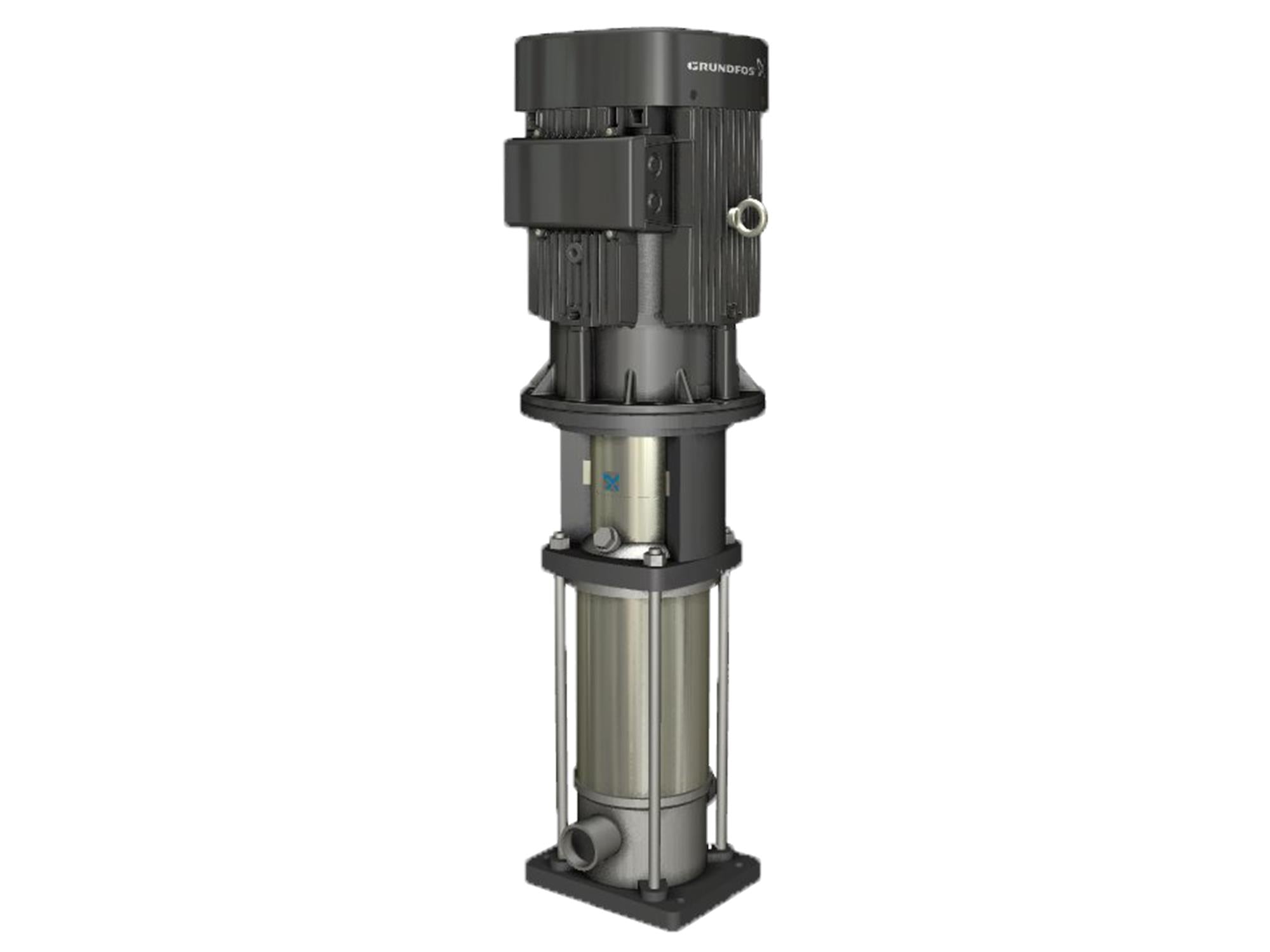

Grundfos 98160657, CRN1-4 A-P-A-E-HQQE Vertical Multistage Pump

SKU: LSIVJGU9RB Part Number: 98160657

Price:
Sale price$1,742.95 Regular price$2,601.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level.

Specifications

Manufacturer Grundfos
Part Number 98160657
Rated pump speed 2873 rpm
Rated flow 7.93 US gpm
Rated head 66.6 ft
Maximum head 83.34 ft
Stages 4
Impellers 4
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQE
Curve tolerance ISO9906:2012 3B
Pump version A
Base Stainless steel, EN 1.4408, AISI 316
Impeller Stainless steel, EN 1.4401, AISI 316
Material code A
Code for rubber E
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 250 °F, 363 psi / -4 °F
Type of connection PJE
Size of inlet connection DN 32
Size of outlet connection DN 32
Pressure rating for connection PN 50
Flange size for motor FT85
Connect code P
Pumped liquid Water
Liquid temperature range -4 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard IEC
Power (P2) required by pump 0.5 HP
Frequency converter None
Pressure sensor N
Net weight 37.5 lb
Gross weight 43.3 lb
Shipping volume 1.91 ft³
Country of origin US
Custom tariff no. 8413.70.2040

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.

Estimate shipping

Repair Parts

(4 items)

Save 7%
Grundfos 96453509, Chamber Stack Kit CRN 1-4
Grundfos Grundfos 96453509, Chamber Stack Kit CRN 1-4
Sale price$632.95 Regular price$677.00
Grundfos 96455086, Shaft Seal Kit HQQEGG KB012S1
Grundfos 96455090, Gasket Kit EPDM CR/I/N 1S/1/3/5
