Description

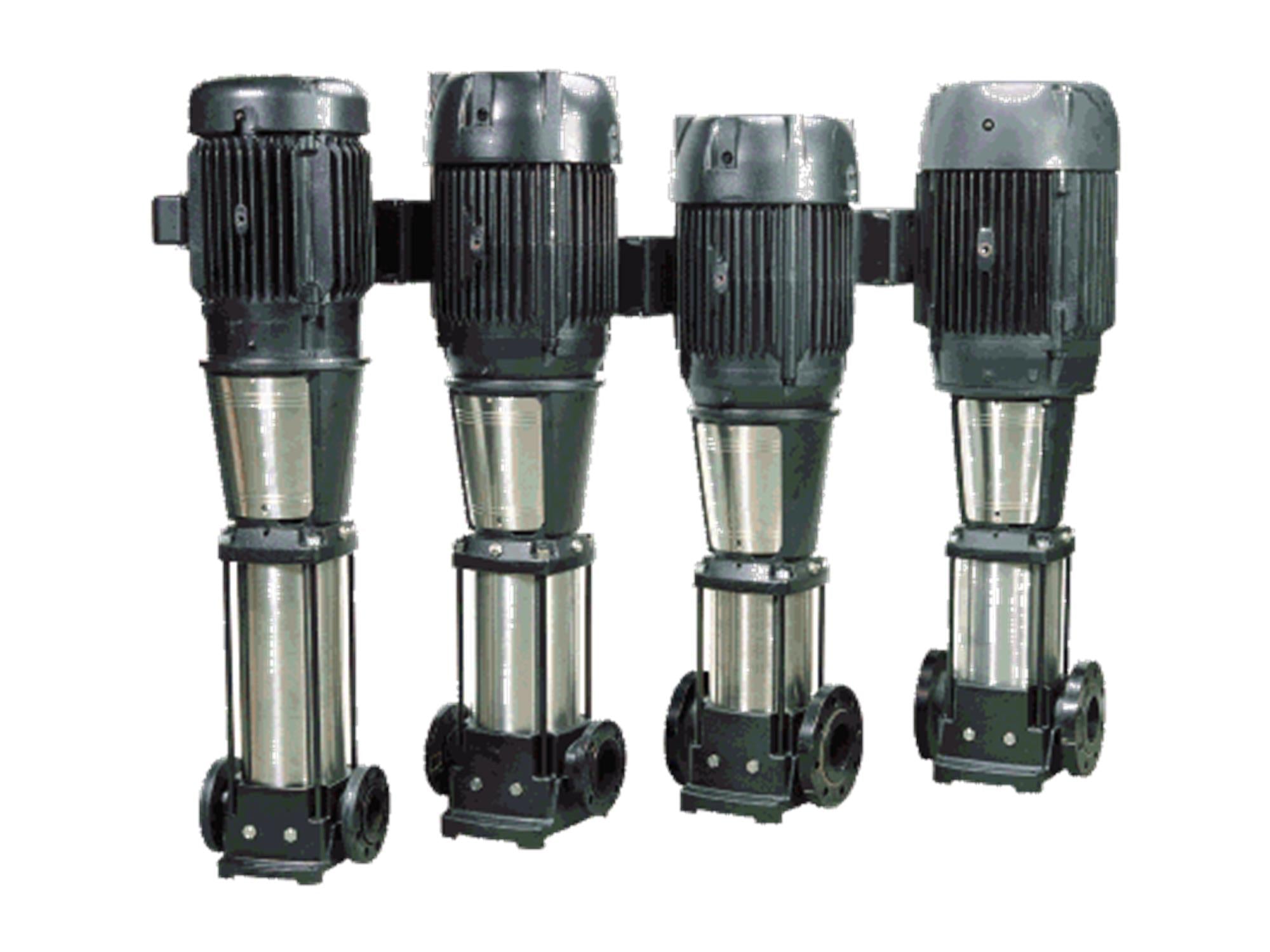

This vertical multistage centrifugal pump has suction and discharge ports on the same level. The pump head and base are made of cast iron, while all other wetted parts are constructed from stainless steel (EN 1.4301). It is suitable for applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 35Z53000 |
| Rated pump speed | 3508 rpm |
| Rated flow | 238 US gpm |
| Rated head | 72.51 ft |
| Maximum head | 101.7 ft |
| Actual impeller diameter | 5.34 in |
| Stages | 1 |
| Impellers | 1 |
| Number of reduced-diameter impellers | 1 |
| Low NPSH | N |
| Pump orientation | Vertical |
| Shaft seal arrangement | Single |
| Code for shaft seal | HQQE |
| Approvals | CURUS |
| Approvals for drinking water | NSF61 |
| Curve tolerance | ISO9906:2012 3B |
| Pump Number | 96415813 |
| Pump version | A |
| Cooling | TEFC |
| Base | Cast iron, EN 1563 EN-GJS-500-7, ASTM A536 80-55-06 |
| Impeller | Stainless steel, EN 1.4301, AISI 304 |
| Material code | A |
| Code for rubber | E |
| Bearing | SIC |
| Support bearing | Graflon |
| Maximum ambient temperature | 104 °F |
| Maximum operating pressure | 232.06 psi |
| Max pressure at stated temperature | 232 psi / 250 °F, 232 psi / -22 °F |
| Type of connection | ANSI |
| Size of suction port | 3 inch |
| Size of outlet port | 3 inch |
| Pressure rating for connection | PN 16 |
| Flange rating inlet | 150 lb |
| Flange size for motor | 213TC |
| Connect code | G |
| Pumped liquid | Water |
| Liquid temperature range | -22 .. 248 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Motor standard | NEMA |
| Motor type | BALDOR |
| Rated power - P2 | 7.5 HP |
| Power (P2) required by pump | 7.5 HP |
| KVA code | F |
| Main frequency | 60 Hz |
| Rated voltage | 1 x 208-230 V |
| Service factor | 1.15 |
| Rated current | 33.8-31.0 A |
| Full load SF current | 39.3-35.5 A |
| Rated speed | 3450 rpm |
| IE efficiency | 82% |
| Motor efficiency at full load | 82 % |
| Number of poles | 2 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | NONE |
| Frequency converter | None |
| DOE Pump Energy Index CL | 0.89 |
| Net weight | 243 lb |
| Gross weight | 261 lb |
| Shipping volume | 10.9 ft³ |
| Sales region | namreg |
