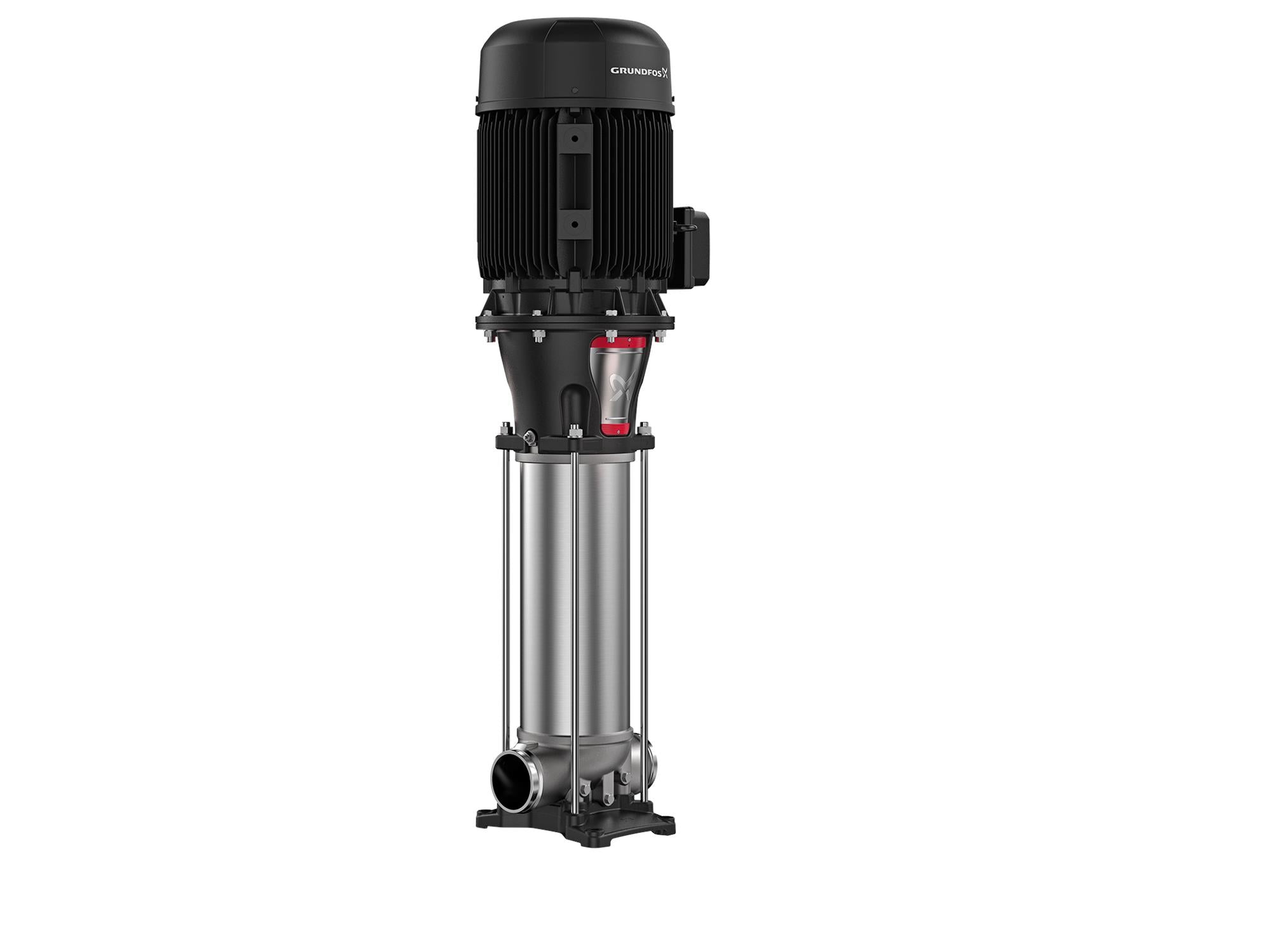

Grundfos 99400415, CRN155-4 A-P-A-V-HQQV Vertical Multistage Pump

SKU: LSIWTUM8UY Part Number: 99400415

Price:
Sale price$39,817.95 Regular price$62,215.00

Save 36% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level, with materials in contact with the liquid made from high-grade stainless steel (EN 1.4401). It is suitable for applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, as well as drip, micro spray, and soaker hose irrigation.

Specifications

Manufacturer Grundfos
Part Number 99400415
Rated pump speed 3564 rpm
Rated flow 820 US gpm
Rated head 520.7 ft
Maximum head 710.7 ft
Actual impeller diameter 6.64 in
Stages 4
Impellers 4
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQV
Approvals for drinking water NSF/ANSI 372
Curve tolerance ISO9906:2012 3B
Pump version A
Base Stainless steel, EN 1.4408, ASTM A351 CF8M
Impeller Stainless steel, EN 1.4401, AISI 316
Material code A
Code for rubber V
Bearing WC/WC
Support bearing Graflon
Thrust handling device Y
Material certified according to European standards
Maximum operating pressure 580.15 psi
Max pressure at stated temperature 363 psi / 194 °F, 580.15 psi / 176 °F
Type of connection PJE
Size of suction port 6 inch
Size of outlet port 6 inch
Pressure rating for connection 1000 psi
Flange size for motor 444TSD
Connect code P
Pumped liquid Water
Liquid temperature range -4 .. 194 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Power (P2) required by pump 125 HP
Frequency converter None
DOE Pump Energy Index CL 0.93
Net weight 478 lb
Gross weight 734 lb
Shipping volume 44.2 ft³
Country of origin US
Custom tariff no. 8413.70.2040

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
