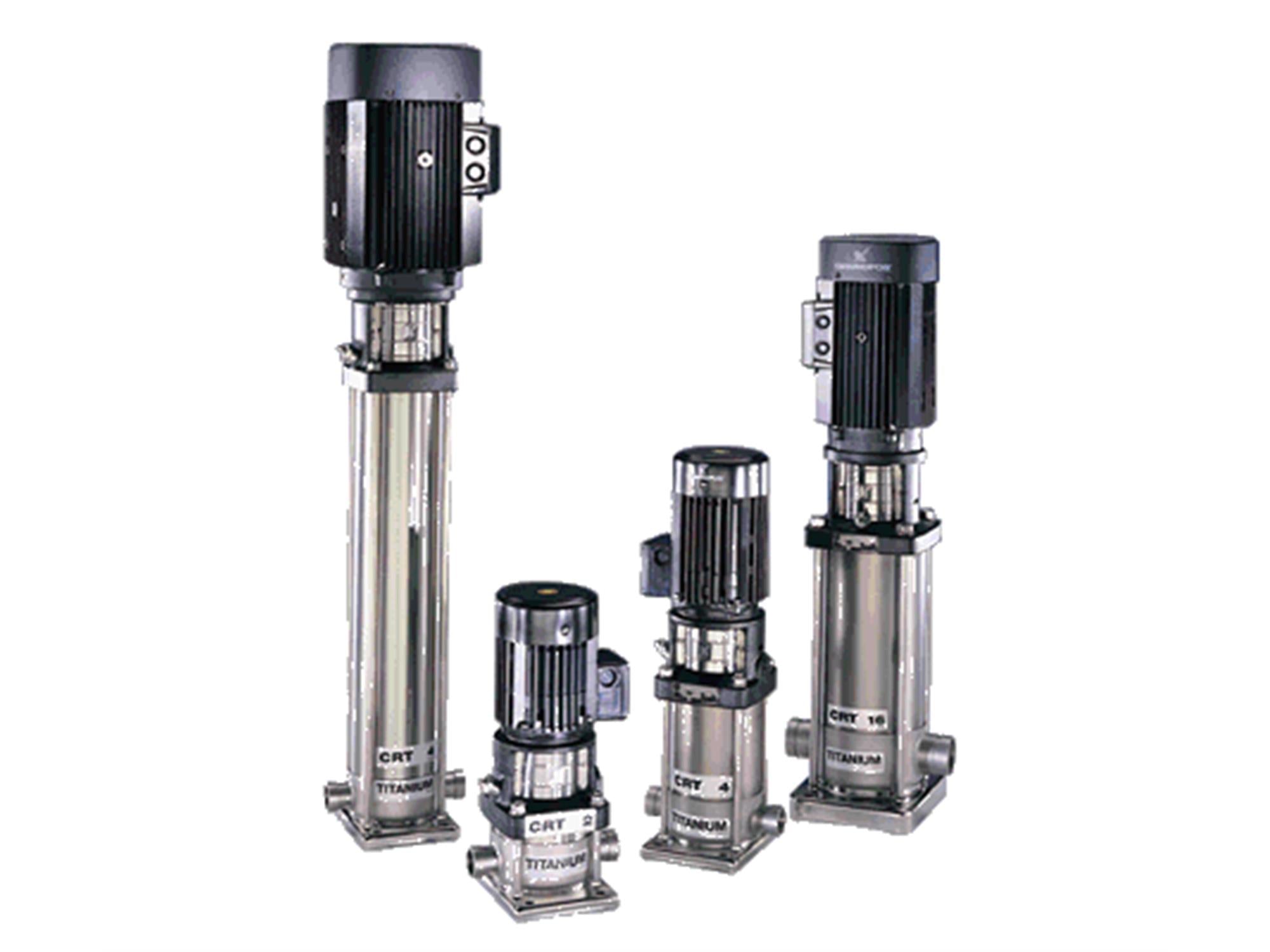

Grundfos 96100967, Vertical Multistage Centrifugal Pump, Titanium

SKU: LSIWXWN9WN Part Number: 96100967

Price:
Sale price$6,155.95 Regular price$9,188.00

Save 33% Call 844-448-0880 for large volume pricing

Stock:
Obsolete
 More payment options

Description

This vertical multistage centrifugal pump has suction and discharge ports on the same level. It is constructed with titanium, offering exceptional resistance to a wide range of acids, alkalis, seawater, and industrial chemicals.

Specifications

Manufacturer Grundfos
Part Number 96100967
Pump speed on which pump data is based 3450 rpm
Rated flow 13.2 US gpm
Rated head 149.6 ft
Head max 219.8 ft
Stages 5
Impellers 5
Low NPSH N
Pump orientation Vertical
Primary shaft seal AUUE
Approvals CE
Curve tolerance ISO9906:2012 3B
Pump version A
Pump housing Titanium, ASTM B 265
Impeller Titanium, ASTM B 265
Material code A
Code for rubber E
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 250 °F, 363 psi / -4 °F
Flange standard Victaulic
Pipe connection PJE 1 1/4
Flange size for motor 56C
Connect code P
Pumped liquid Water
Liquid temperature range -4 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Rated power - P2 0.5 HP
Power (P2) required by pump 1.5 HP
Number of poles 2
Frequency converter None
Net weight 27.8 lb
Gross weight 38.6 lb

About Grundfos

Grundfos has a wide range of products, pump solutions, and services for all applications. Grundfos' energy-efficient pumps provide comfort and move water, wastewater, and industrial liquids all over the world.
