Description

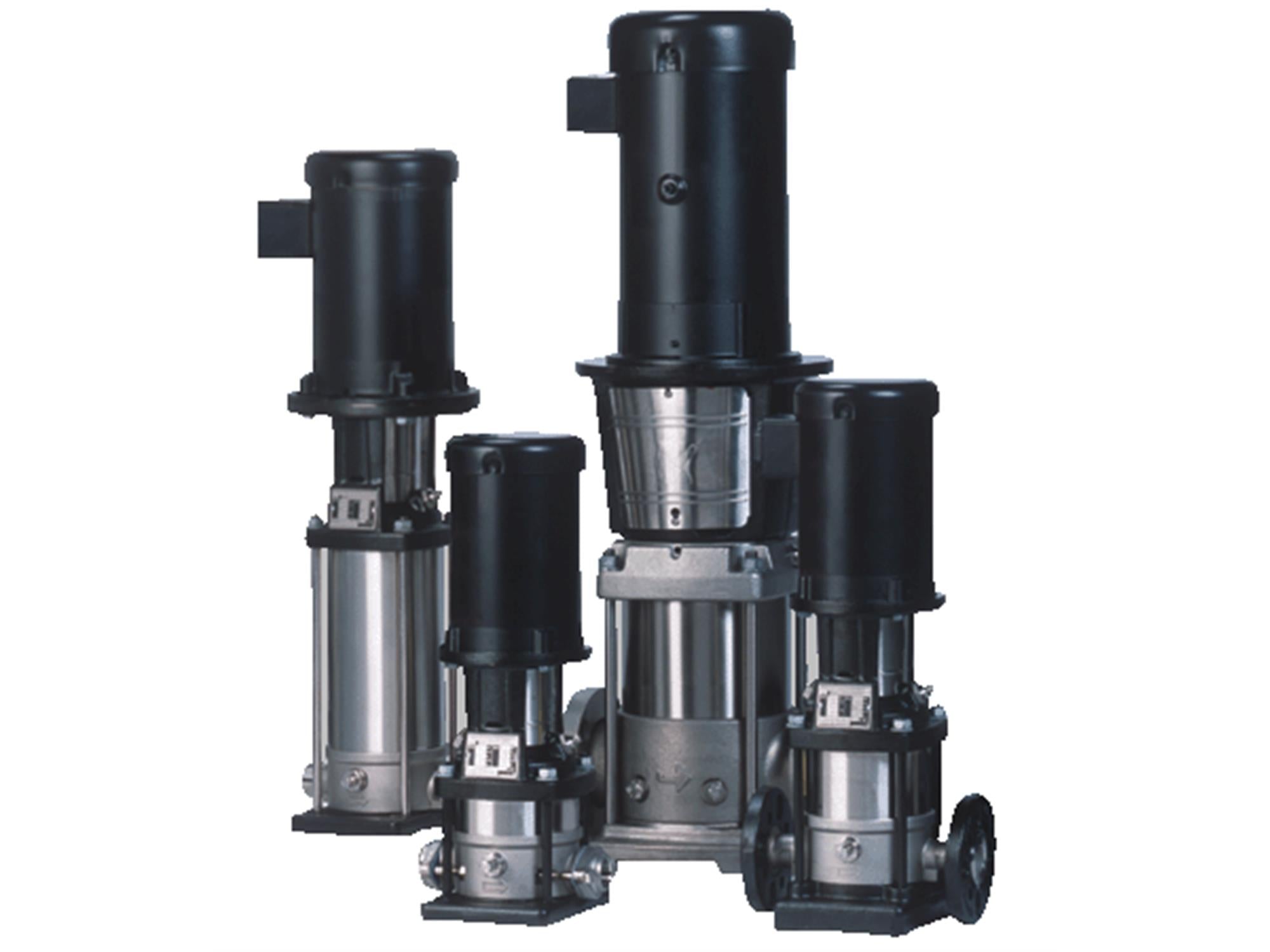

This vertical multistage centrifugal pump has suction and discharge ports on the same level. It is constructed with high-grade stainless steel (EN 1.4401) for durability in applications such as water treatment fertigation, chemigation, dosing, controls and digital groundwater management, and drip irrigation systems.
Specifications
| Manufacturer | Grundfos |
|---|---|
| Part Number | 96524099 |
| Rated pump speed | 3444 rpm |
| Rated flow | 111 US gpm |
| Rated head | 318.9 ft |
| Maximum head | 413.4 ft |
| Actual impeller diameter | 4.13 in |
| Stages | 6 |
| Impellers | 6 |
| Number of reduced-diameter impellers | 0 |
| Low NPSH | N |
| Pump orientation | Vertical |
| Shaft seal arrangement | Single |
| Code for shaft seal | HQQE |
| Approvals | CURUS |
| Curve tolerance | ISO9906:2012 3B |
| Pump version | A |
| Cooling | IC 411 |
| Base | Stainless steel, EN 1.4408, AISI 316 |
| Impeller | Stainless steel, EN 1.4401, AISI 316 |
| Material code | A |
| Code for rubber | E |
| Bearing | SIC |
| Maximum ambient temperature | 104 °F |
| Maximum operating pressure | 362.59 psi |
| Max pressure at stated temperature | 363 psi / 250 °F, 363 psi / -4 °F |
| Type of connection | DIN / ANSI / JIS |
| Size of inlet connection | DN 50 |
| Size of outlet connection | DN 50 |
| Pressure rating for connection | PN 25 |
| Flange rating inlet | 300 lb |
| Flange size for motor | 254TC |
| Connect code | FGJ |
| Pumped liquid | Water |
| Liquid temperature range | -4 .. 248 °F |
| Selected liquid temperature | 68 °F |
| Density | 62.29 lb/ft³ |
| Motor standard | NEMA |
| Motor type | BALDOR |
| Rated power - P2 | 15 HP |
| Power (P2) required by pump | 15 HP |
| Main frequency | 60 Hz |
| Rated voltage | 3 x 208-230/460 V |
| Service factor | 1.15 |
| Rated current | 38,0-35,0/17,5 A |
| Starting current | 680 % |
| Full load SF current | 44-40/20 A |
| Cos phi - power factor | 0.87 |
| Rated speed | 3520 rpm |
| IE efficiency | IE3 91% |
| IE Efficiency class | IE3 / NEMA Premium |
| Motor efficiency at full load | 91 % |
| Motor efficiency at 3/4 load | 91.6 % |
| Motor efficiency at 1/2 load | 91 % |
| Number of poles | 2 |
| Enclosure class (IEC 34-5) | IP54 |
| Insulation class (IEC 85) | F |
| Built-in motor protection | NONE |
| Frequency converter | None |
| DOE Pump Energy Index CL | 0.91 |
| Net weight | 315 lb |
| Gross weight | 430 lb |
| Shipping volume | 17.2 ft³ |
