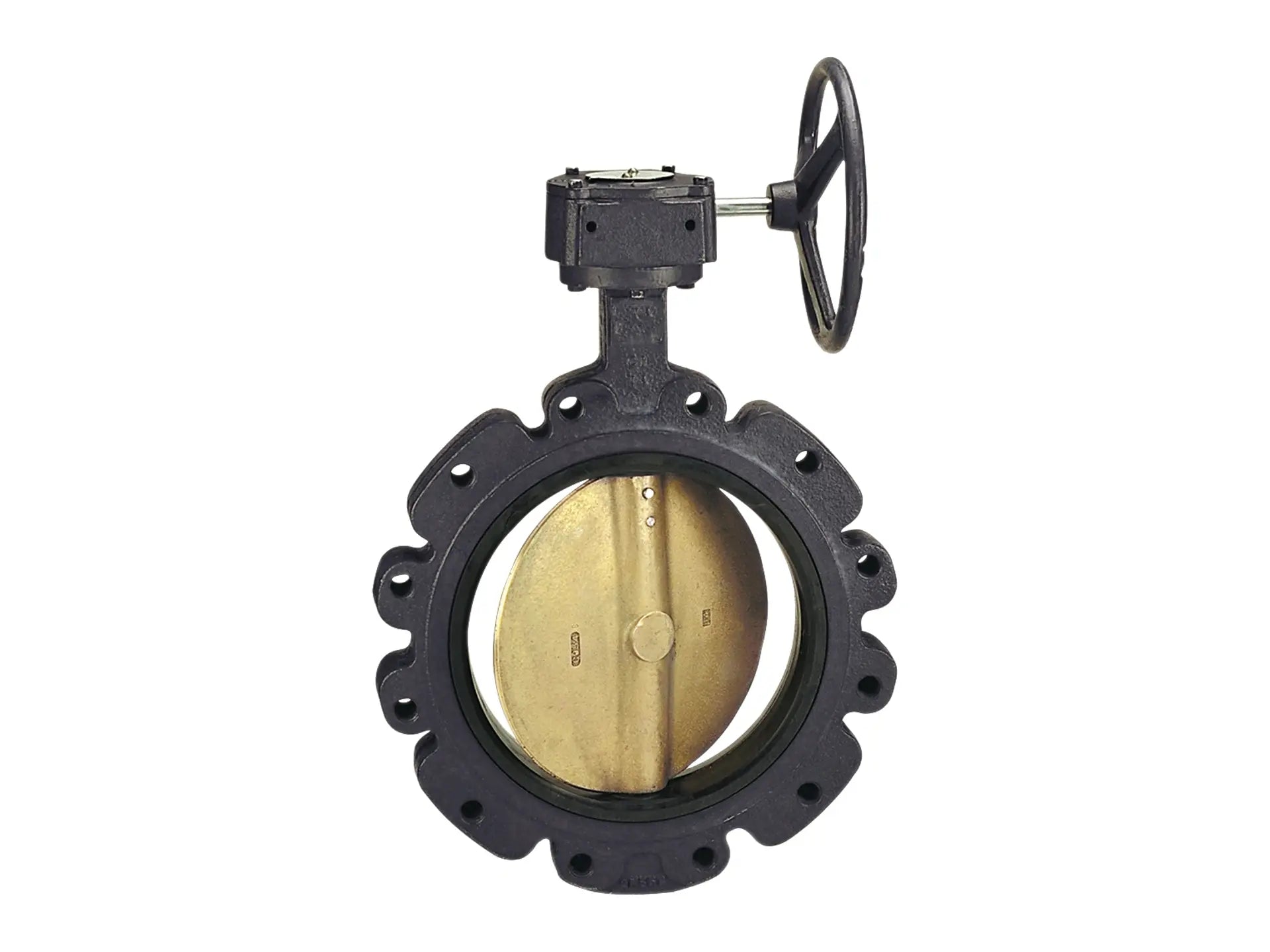

NIBCO LD-1000-5 16" Ductile Iron Butterfly Valve NLGL15U

SKU: LSIYDP33C4 Part Number: NLGL15U Model: LD-1000-5

Price:
Sale price$6,907.95 Regular price$13,033.00

Save 47% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

NIBCO lug type butterfly valve provides bubble-tight shutoff at 150 psi and bi-directional dead-end service without a downstream flange to 150 psi. The valve is recommended for commercial and some light industrial process applications, in addition to HVAC and hot and cold potable water. NIBCO ductile iron butterfly valve provides ease of operation with quarter-turn (90°) open to close. The EPDM cartridge liner with aluminum bronze disc is recommended for most water applications. An extended neck allows for insulation up to 2". Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO ductile iron butterfly valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO butterfly valves are backed by the NIBCO 5-year 125% limited warranty.

Features

  • Valve pressure rating 150 psi
  • 225°F continuous and 250°F intermittent service
  • Lug style
  • EPDM cartridge seat liner
  • Aluminum bronze disc
  • Stainless steel stem with bronze bushings
  • Operating mechanism: Bare stem, manual gear operator and pneumatic/electric automation
  • Not recommended for steam service
  • Designed to meet MSS SP-67
  • MSS SP-25 (markings)

Specifications

Manufacturer NIBCO
Part Number NLGL15U
Model LD-1000-5
Application(s) Lead-Free
System Use Commercial Plumbing, HVAC, Industrial
Basic Material Ductile Iron
Nominal Pipe Size 16"
Type of Valve Butterfly
Valve End Connection Type Lug
End Connection Lug
Butterfly Operator Gear Operator
Turns Operations Quarter-Turn
Seat Seal Material EPDM Rubber
Valve Pressure Rating (psi) 150 psi rated pressure
Old Material Number LD1000516
UPC 039923777980
Length 36.32"
Width 25.23"
Height 14.57"
Potable Water Code LL Compliant NSF/ANSI 372
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
