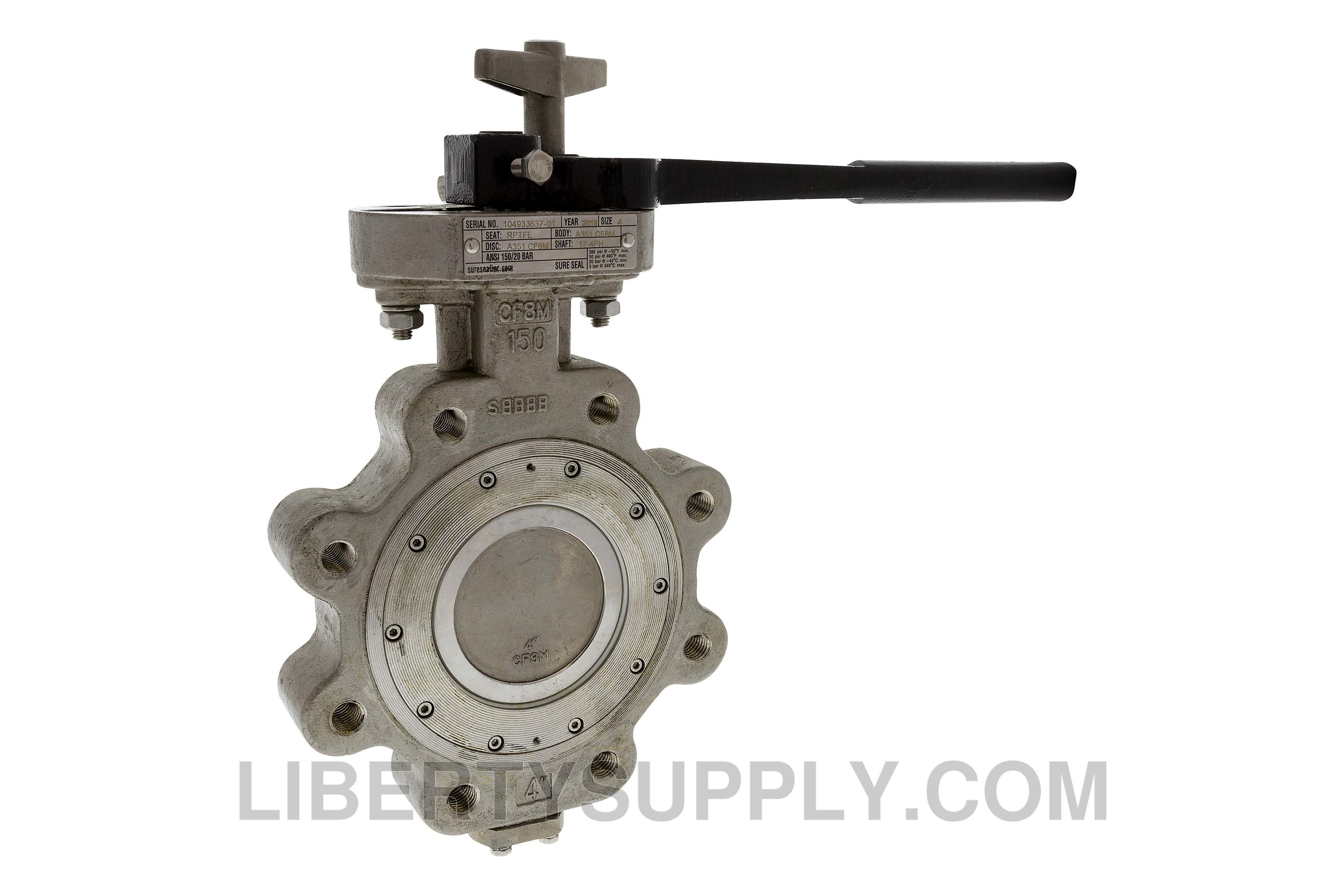

NIBCO 8" Sure Seal Butterfly Valve S8-G1L-SS3R-H

SKU: LSIYFOUGAA Part Number: S8-G1L-SS3R-H Model: G1L-SS3R-H

Price:
Sale price$5,879.95 Regular price$9,638.00

Save 39% Call 844-448-0880 for large volume pricing

Stock:
Typically Stocked - Call or Chat to confirm
 More payment options

Description

Please note this item is made to order and additional lead-times may apply.

The Sure Seal Class 150 high performance lug style butterfly valve features a stainless steel body with stainless steel trim. It is ideally suited for commercial, industrial and mechanical HVAC services. The valve performs isolation and throttling services in heating hot water, condenser water, glycol, chilled water, compressed air, chemical process, and domestic water or steam (2" to 12" 150 psi; on/off 50 psi modulating).

Features

  • Standard operating temperature -20°F to 482°F
  • Lug style
  • Seats: glass reinforced PTFE (standard); PTFE; UHMWPE
  • Blowout-proof stem
  • Stainless steel disc and stem
  • Integrally cast disc stop
  • Dual offset design
  • Direct mount actuation
  • Operating mechanism: bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
  • MSS SP-68 (design) 100% production tested
  • MSS SP-25 (markings)
  • API 609 seat pressure/temperature ratings/blow-out proof stem
  • ASME/ANSI B16.34A, body pressure/temperature ratings
  • ASME/ANSI B16.5 flange dimensions
  • ISO 5211 EN 12116 actuator mounting top works
  • ANSI class 150

Specifications

Manufacturer NIBCO
Part Number S8-G1L-SS3R-H
Model G1L-SS3R-H
Old Material Number 8G1LSS3RH
Nominal Pipe Size 8"
Material Stainless Steel
System Use Actuation, Commercial Plumbing, HVAC, Industrial
Type of Valve Butterfly Valve
End Connection Lug
Seat Seal Material RPTFE (Reinforced)
Valve End Connection Type Lug
Valve Pressure Rating (psi) 285 psi rated pressure
Turns Operations Quarter-Turn
UPC 039923056610
Length 26.000"
Width 21.400"
Height 5.800"
Potable Water Code LL Compliant NSF/ANSI 372
CA Proposition 65 Warning Statement WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

About NIBCO

NIBCO is a recognized manufacturer and brand leader of valves, fittings, and flow-control products.
