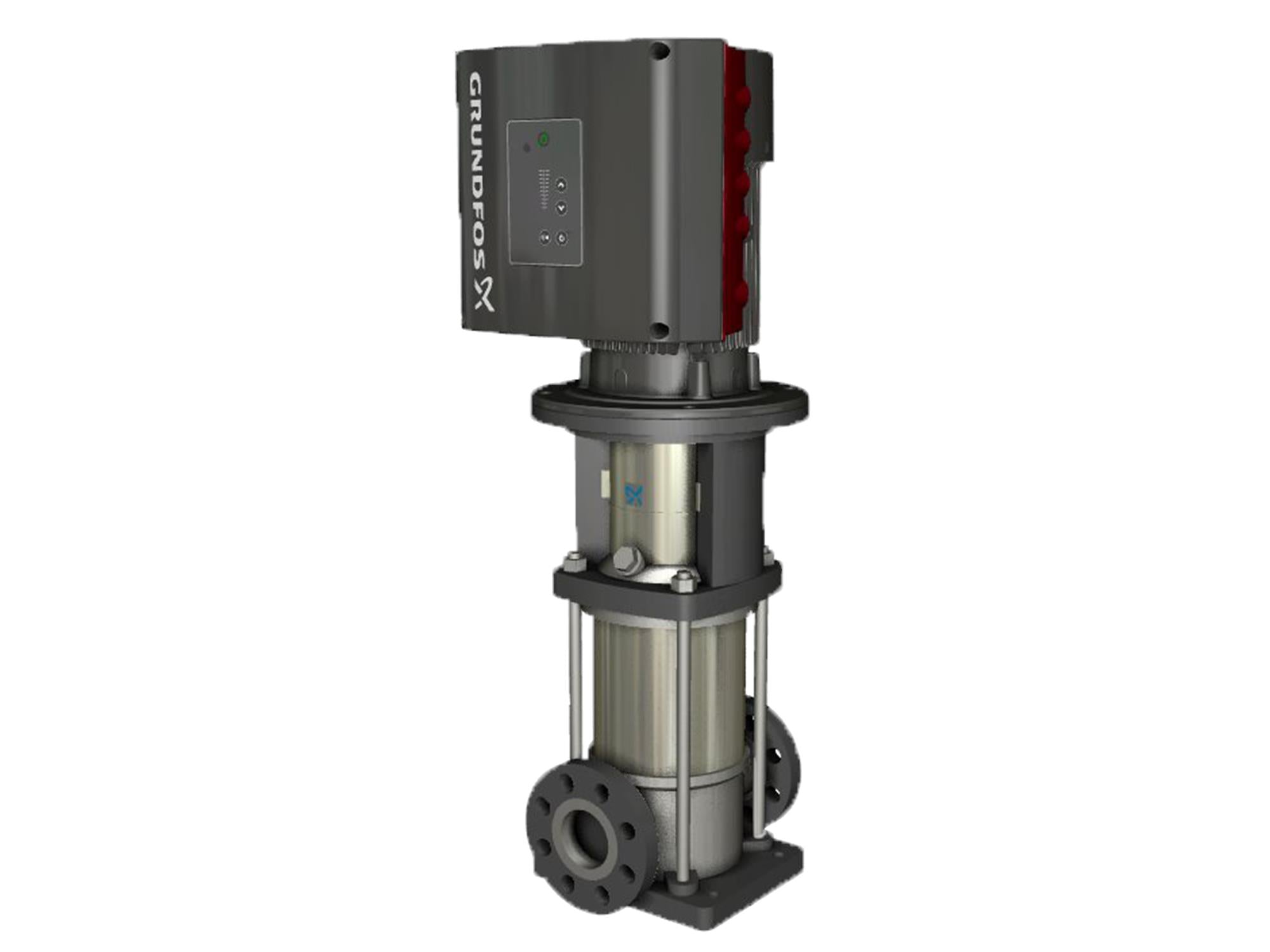

Grundfos 99701825, CRNE10-17 A-FGJ-H-E-HQQE Vertical Multistage Pump

SKU: LSIYGRFO2X Part Number: 99701825

Price:
Sale price$17,261.95 Regular price$19,287.00

Save 10% Call 844-448-0880 for large volume pricing

Stock:
Call or Chat for availability
 More payment options

Description

This vertical multistage centrifugal pump features a MGE E-motor with a built-in frequency converter for precise control and efficiency. With a cast iron head and stainless steel wetted parts (EN 1.4301), it operates at 15 HP, 480V in three-phase, ideal for water treatment, fertigation, chemigation, and irrigation applications.

Specifications

Manufacturer Grundfos
Part Number 99701825
Rated pump speed 3444 rpm
Rated flow 53.3 US gpm
Rated head 638.2 ft
Maximum head 817 ft
Actual impeller diameter 3.66 in
Stages 18
Impellers 17
Number of reduced-diameter impellers 0
Low NPSH N
Pump orientation Vertical
Shaft seal arrangement Single
Code for shaft seal HQQE
Approvals CE,CURUS
Approvals for drinking water NSF/ANSI 61
Curve tolerance ISO9906:2012 3B
Pump version A
Base Stainless steel, EN 1.4408, AISI 316
Impeller Stainless steel, EN 1.4401, AISI 316
Material code H
Code for rubber E
Maximum ambient temperature 122 °F
Maximum operating pressure 362.59 psi
Max pressure at stated temperature 363 psi / 250 °F, 363 psi / -4 °F
Type of connection DIN / ANSI / JIS
Size of inlet connection DN 50
Size of outlet connection DN 50
Pressure rating for connection PN 25
Flange rating inlet 300 lb
Flange size for motor 254TC
Connect code FGJ
Pumped liquid Water
Liquid temperature range -4 .. 248 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³
Motor standard NEMA
Motor type 160H
Rated power - P2 15 HP
Power (P2) required by pump 15 HP
Main frequency 60 Hz
Rated voltage 3 x 440-480 V
Service factor 1.15
Rated current 17.9-16.6 A
Cos phi - power factor 0.92-0.91
Rated speed 360-4000 rpm
IE Efficiency class IE5
Motor efficiency at full load 93.2 %
Enclosure class (IEC 34-5) IP55
Insulation class (IEC 85) F
Built-in motor protection ELEC
Control panel Graphical
Function Module FM300 - Advanced
Frequency converter Built-in
Pressure sensor N
DOE Pump Energy Index VL 0.39
Net weight 247 lb
Gross weight 359 lb
Shipping volume 17.2 ft³
Config. file no 99074181
